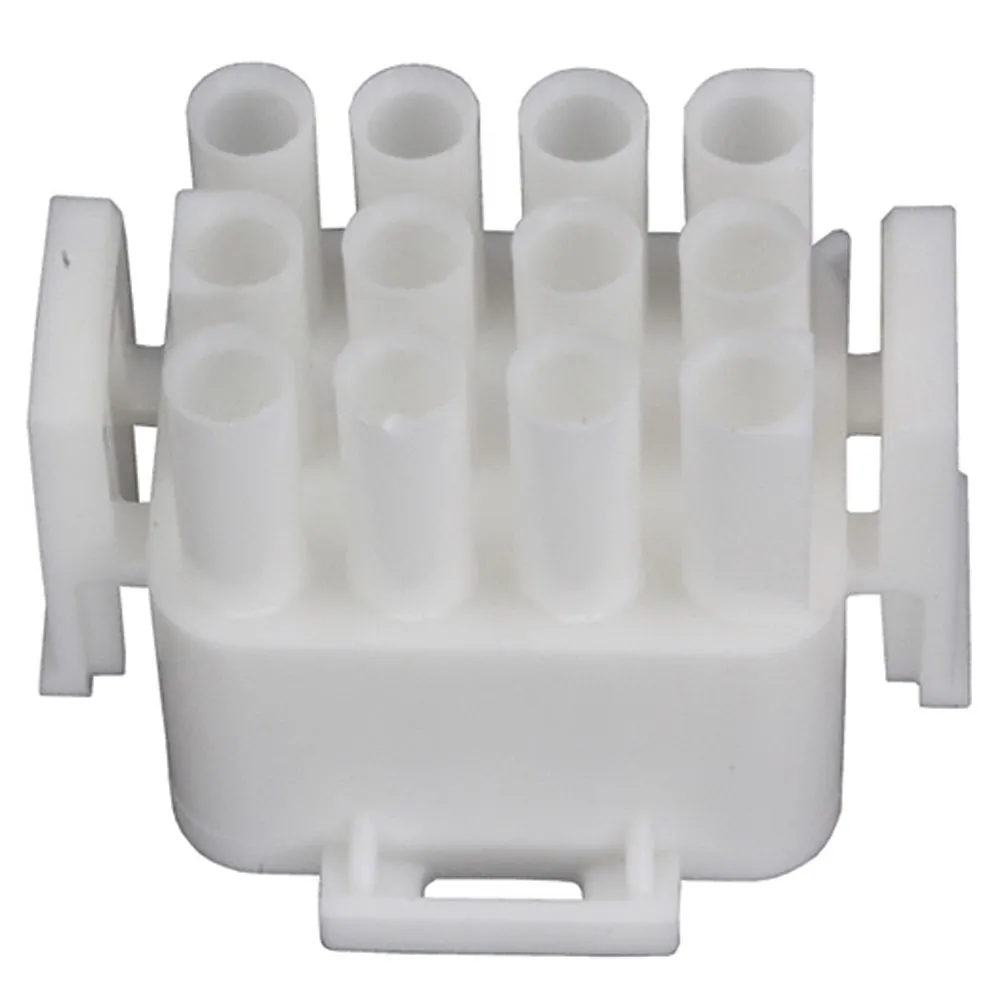

Universal MATE-N-LOK 12-Position Plug Housing for Male or Female Contacts 0.25" (6.35mm) Free Hanging Crimp

TE Connectivity

Jameco Part #:

Manufacturer #:

Primary datasheet

Non Cancelable

Non Returnable

Product Price:

$0.650

In Stock: 0

Quantity	Unit Price	You Save	Discount
150+	$0.650	-	0.31%
600+	$0.560	0.09	13.54%
2400+	$0.530	0.12	17.85%
5000+	$0.510	0.14	21.85%
10000+	$0.480	0.17	25.85%

Specifications

Series: Universal MATE-N-LOK
Connector Type: Plug
Contact Type: For Male of Female Contacts
Pitch - Mating: 0.25" (6.35 mm)
Number of Positions: 12
Number of Rows: 3
Row Spacing: 0.25" (6.35 mm)
Number of Positions Loaded: None
Mounting Type: Free Hanging (In-Line)
Termination: Crimp
Fastening Type: Latch Lock
Insulation Color: Natural
Note: Contacts Not Included
Base Number: 350735

Product Identification

Product Type:Plug Housing

Manufacturer Series:MATE-N-LOK

Family:350735

Dimensions & Appearance

Mounting:Free Hanging (In-Line)

Body Orientation:Straight

Body/Shell Style:Plug

Operating conditions

Maximum Operating Temperature:105°C

Minimum Operating Temperature:-20°C

Features

Termination Type:Crimp

Shell Material:Nylon 66

Filter Feature:No

Mixed Contacts:NO

DIN Conformance:No

IEC Conformance:No

MIL Conformance:No

Empty Shell:Yes

Zero Insertion Force:NO

UL Flammability Code:94V-0

Option:GENERAL PURPOSE

Number of Rows:3

Housing Material:Nylon 66

Contact Finish - Mating:N/A

Mating Information:MULTIPLE MATING PARTS AVAILABLE

Housing Color:Natural

Maximum Contact Resistance:N/A

Contact Gender:Male or Female

Number of Contacts:12

Contact Material:N/A

Contact Plating:N/A

Wire Gauge (AWG):N/A

Voltage Rating:600 VAC

Current Rating:N/A
