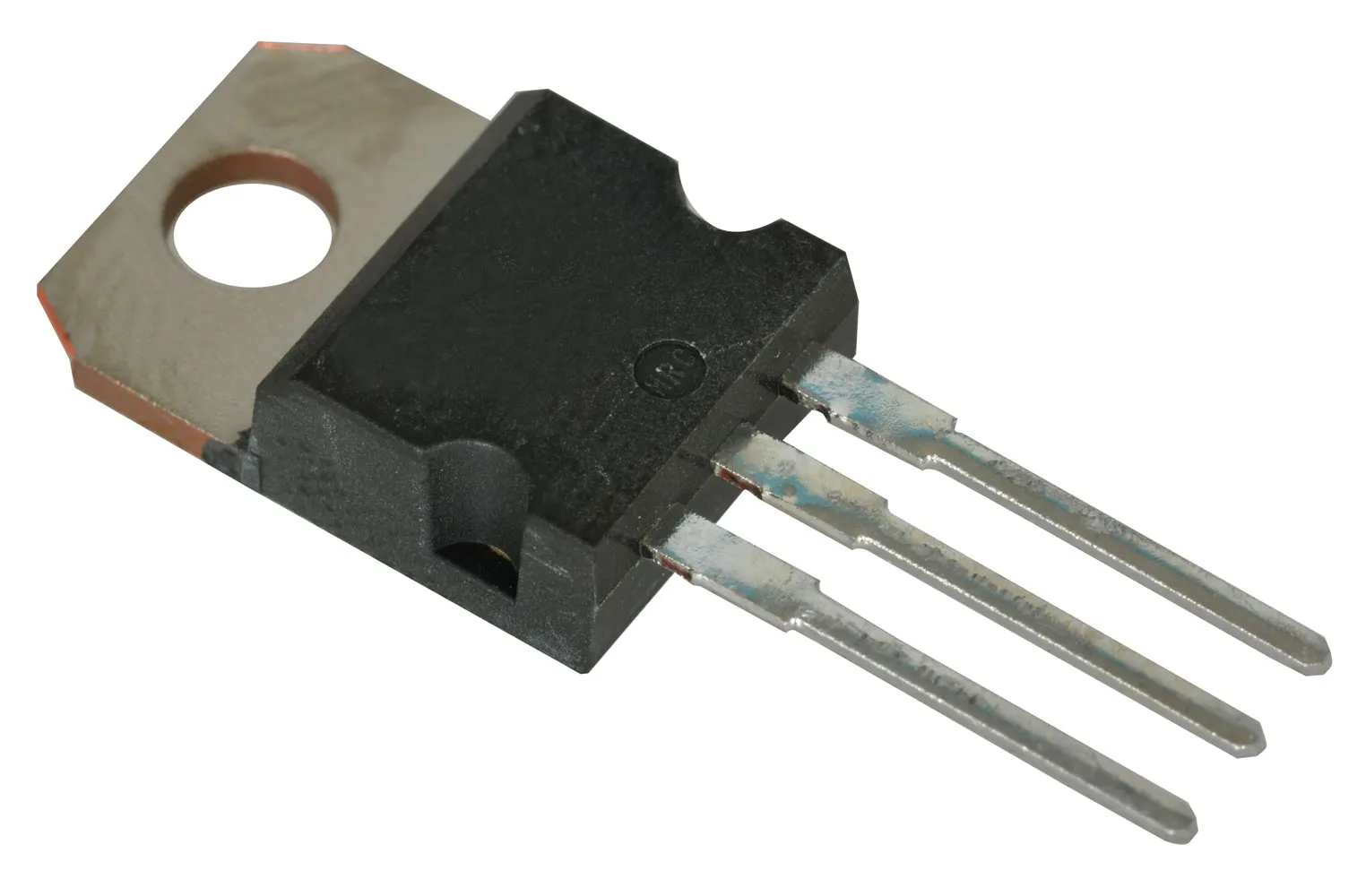

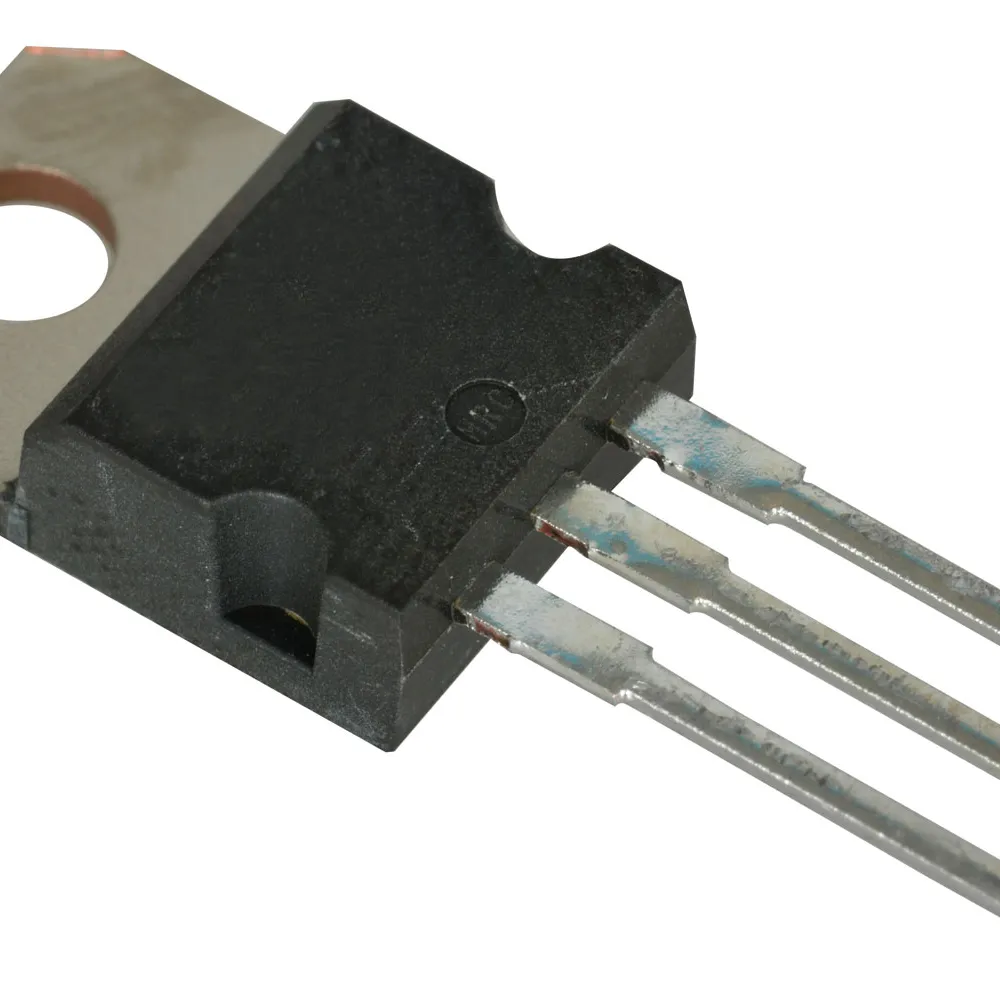

IRF830 Mosfet Transistors
Amplify or switch electronic signals with ease with Jameco's wide selection of mosfet transistors. These IRF830 models have a variety of applications and offer high current, high speed switching. Low profile and low on resistance, these handy devices are found in many digital and analog circuits.For more about Transistors, click here.
Product Identification
Product Type:MOSFET
Family:IRF830
Dimensions & Appearance
Length:10.4 mm
Width:4.6 mm
Height:9.15 mm
Mounting:Through Hole
Operating conditions
Maximum Operating Temperature:150°C
Minimum Operating Temperature:-65°C
Packaging
Packaging:Bulk
Package:TO-220-3
Input
Typical Input Capacitance @ Vds:610pF@25V
Output
Output Power:100W
Features
Number of Elements per Chip:1
Channel Type:N
Typical Turn-Off Delay Time:7ns
Transistor Polarity:N
Pins:3
Maximum Gate Source Voltage:±20V
Channel Mode:N-Channel Enhancement
Category:Power MOSFET
Maximum Continuous Drain Current:4.5 A
Peak Reverse Recovery Time:15ns
Peak Non-Repetitive Surge Current:18A
Typical Fall Time:5ns
Typical Gate Charge @ Vgs:22nC@10V
Maximum Forward Current:4.5A
Typical Rise Time:8ns
Typical Turn-On Delay Time:11.5ns
Maximum Reverse Current:50uA
Maximum Drain Source Voltage:500 V
Repetitive Peak Reverse Voltage:500VDC
Maximum Drain Source Resistance:1.5 Ohms@10V
Power Dissipation:100 W
Maximum Forward Voltage:500VDC
Configuration:Single
