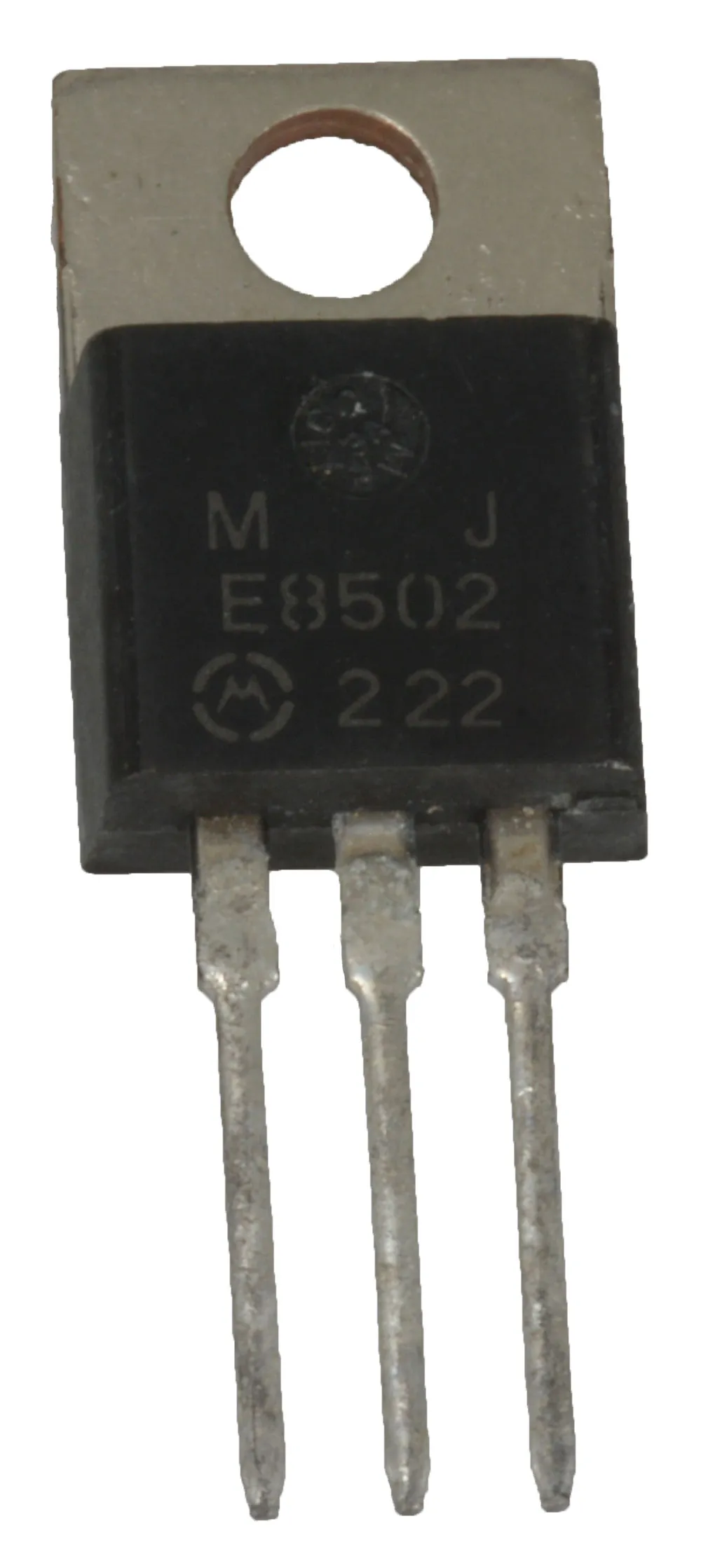

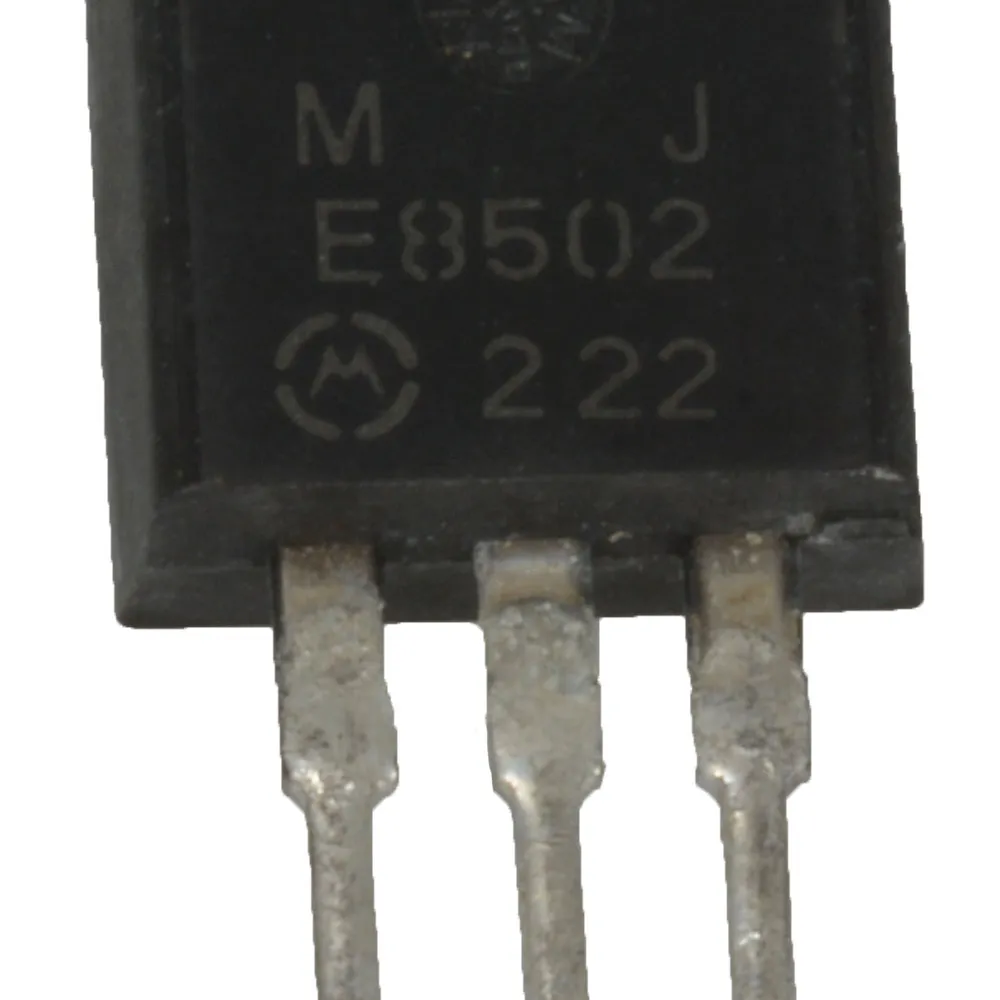

TO-220 NPN Power Transistor 700V 5A

Clearance

Jameco Part #:

Manufacturer #:

Product Price:

$1.490

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$1.490	-	-
10+	$1.250	0.24	16.11%
50+	$1.090	0.40	26.85%
100+	$0.990	0.50	33.56%
500+	$0.890	0.60	40.27%

Product Identification

Product Type:Bipolar Power

Manufacturer Series:MJE8502

Mounting:Through Hole

Height:20.15 mm

Length:15.75 mm

Width:5.15 mm

Maximum Operating Temperature:125°C

Minimum Operating Temperature:-65°C

Packaging:Bulk

Package:TO-220-3

Output Power:80W

Number of Elements per Chip:1

Pins:3

Transistor Polarity:NPN

Maximum Emitter Base Voltage:8V

Maximum Collector Current:5A

Maximum Base Emitter Saturation Voltage:1.5V @ 1A @ 2.5A

Maximum Collector Emitter Voltage:700 V

Maximum Collector Base Voltage:700 V

Power Dissipation:80W

Minimum DC Current Gain:750 @1.5A

Configuration:Single

Maximum Collector Emitter Saturation Voltage:5V @ 2A @ 5A
