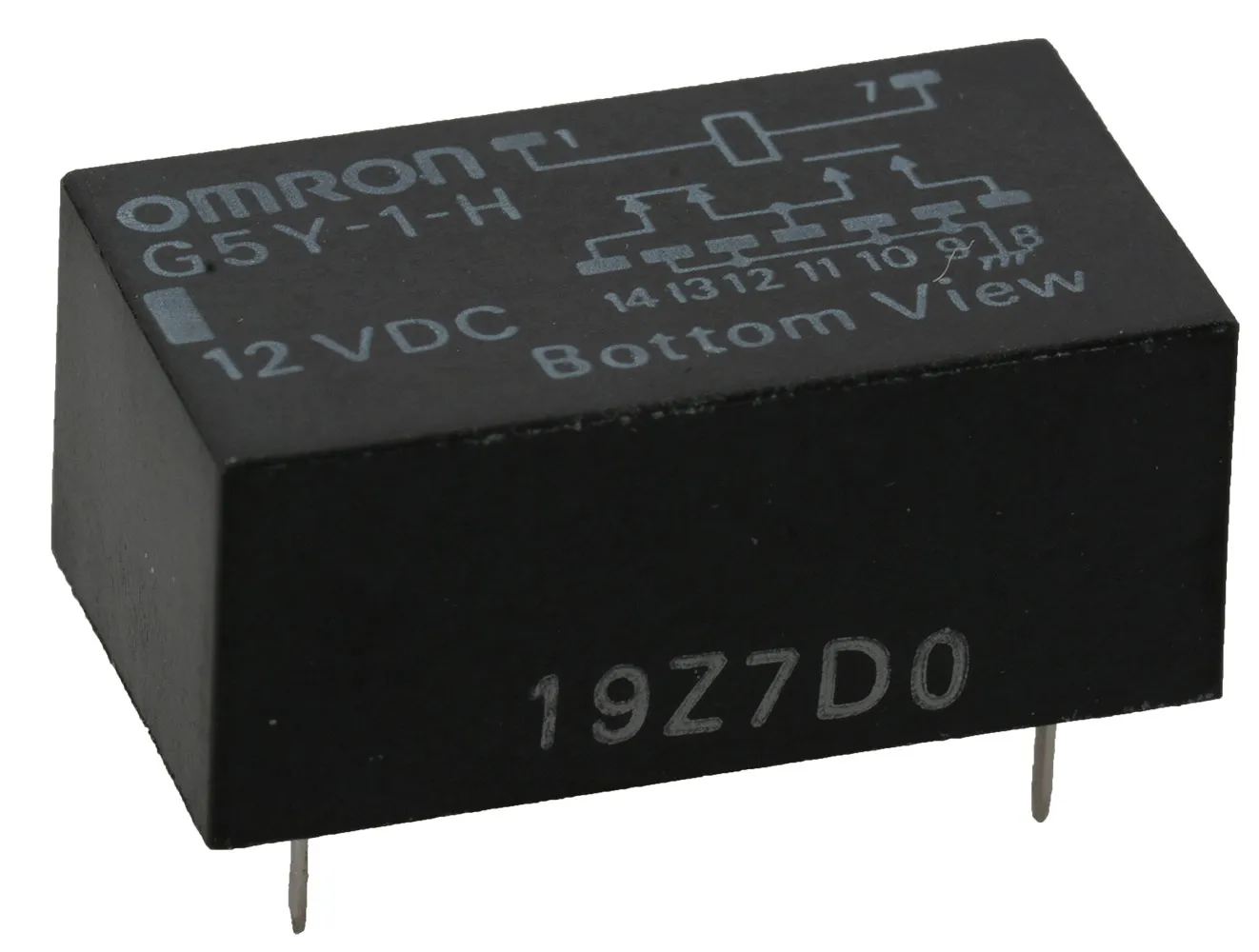

Small Signal Relay SPDT Non-Latching 12 VDC High-Sensitivity

Specifications

  • Contact Form: SPDT
  • Coil Voltage: 12 VDC
  • Rated Current: 16.7 mA
  • Coil Resistance: 720 Ohms
  • Construction: Fully sealed
  • Miniature Size: 0.81"L x 0.45"W x 0.35"H
  • Plastic sealed construction highly resistant to adverse environmental conditions
  • 9-pin

Compliance

RoHS Status:ROHS Compliant

Dimensions & Appearance

Width:11.5 mm
Length:20.5 mm
Height:9 mm

Features

Contact Current:0.0167 A
Pins:9
Coil Voltage:12 VDC
Relay Construction:Non-Latching
Contact Voltage:30 VAC, 30 VDC
Contact Form:SPDT
Coil Resistance:720 Ohm
,
