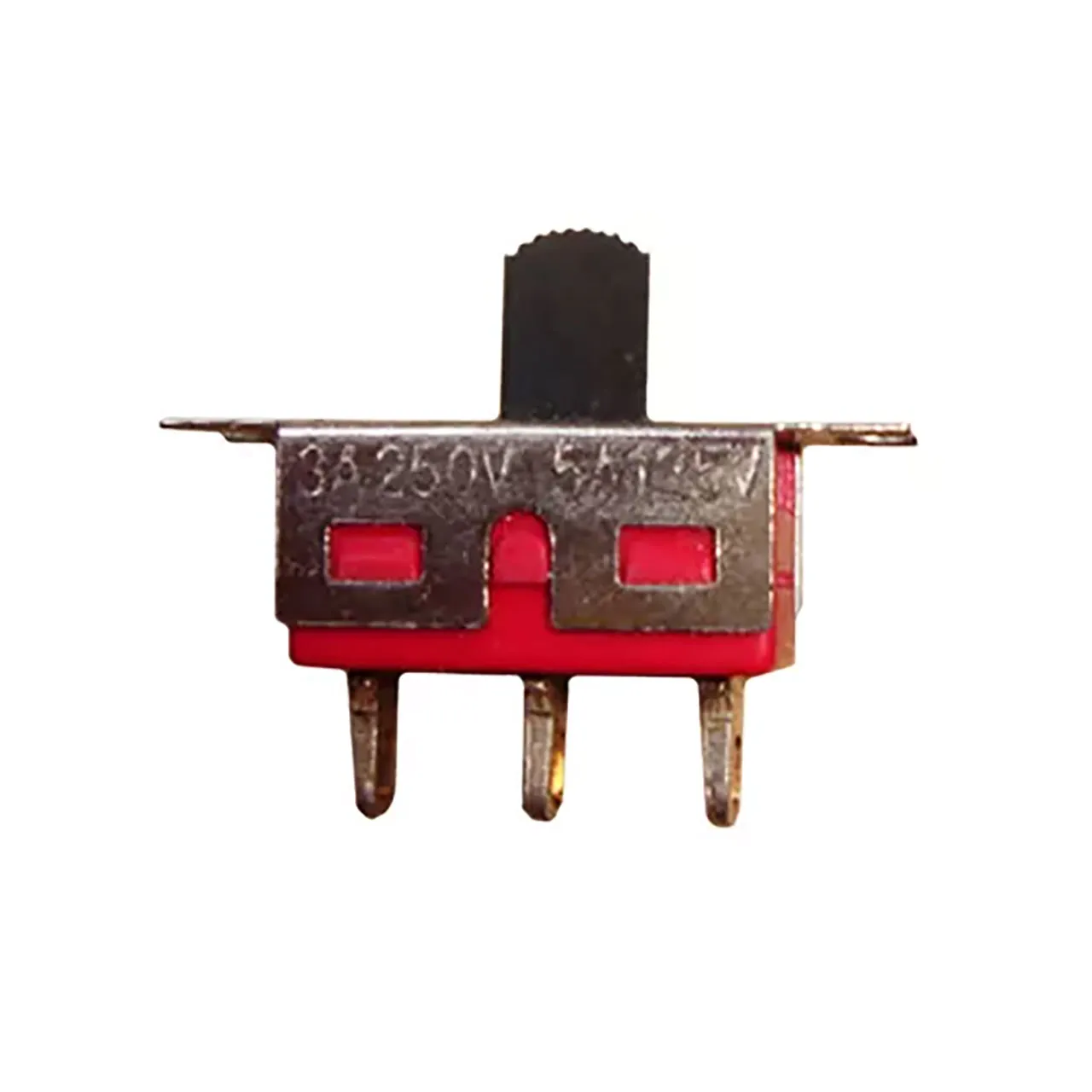

Slide Switch SPDT ON-ON 5A 120VAC 28VDC Through Hole Right Angle

Specifications

  • Circuit: SPDT
  • Contact Timing: Non-Shorting (BBM)
  • Switch Function: ON-ON
  • Contact Rating: 5A @ 120 VAC or 28 VDC; 3A @ 250 VAC
  • Actuator Type: Standard
  • Actuator Length: 5 mm
  • Contact Material: Copper Alloy
  • Contact Finish: Silver
  • Mounting Type: Through Hole, Right Angle
  • Termination Style: PC Pin
  • Operating Temperature: -20°C to 70°C
  • Actuator Material: Polyoxymethylene (Acetal) (POM)
  • Switch Travel: 2.16 mm
  • Electrical Life: 30,000 Cycles

Dimensions & Appearance

Color:Black
Height:0.26 in.
Length:0.5 in.
Width:0.35 in.

Features

Pins:3
Color - Actuator/Cap:Black
Housing Material:DAP
Lead Pitch:0.185 in.
Switch Function:ON-ON
Contact Form:SPDT
Contact Rating:5 A @ 120 VAC, 5 A @ 28 VDC, 3 A @ 250 VAC
Actuator Type:Top Slide
,
