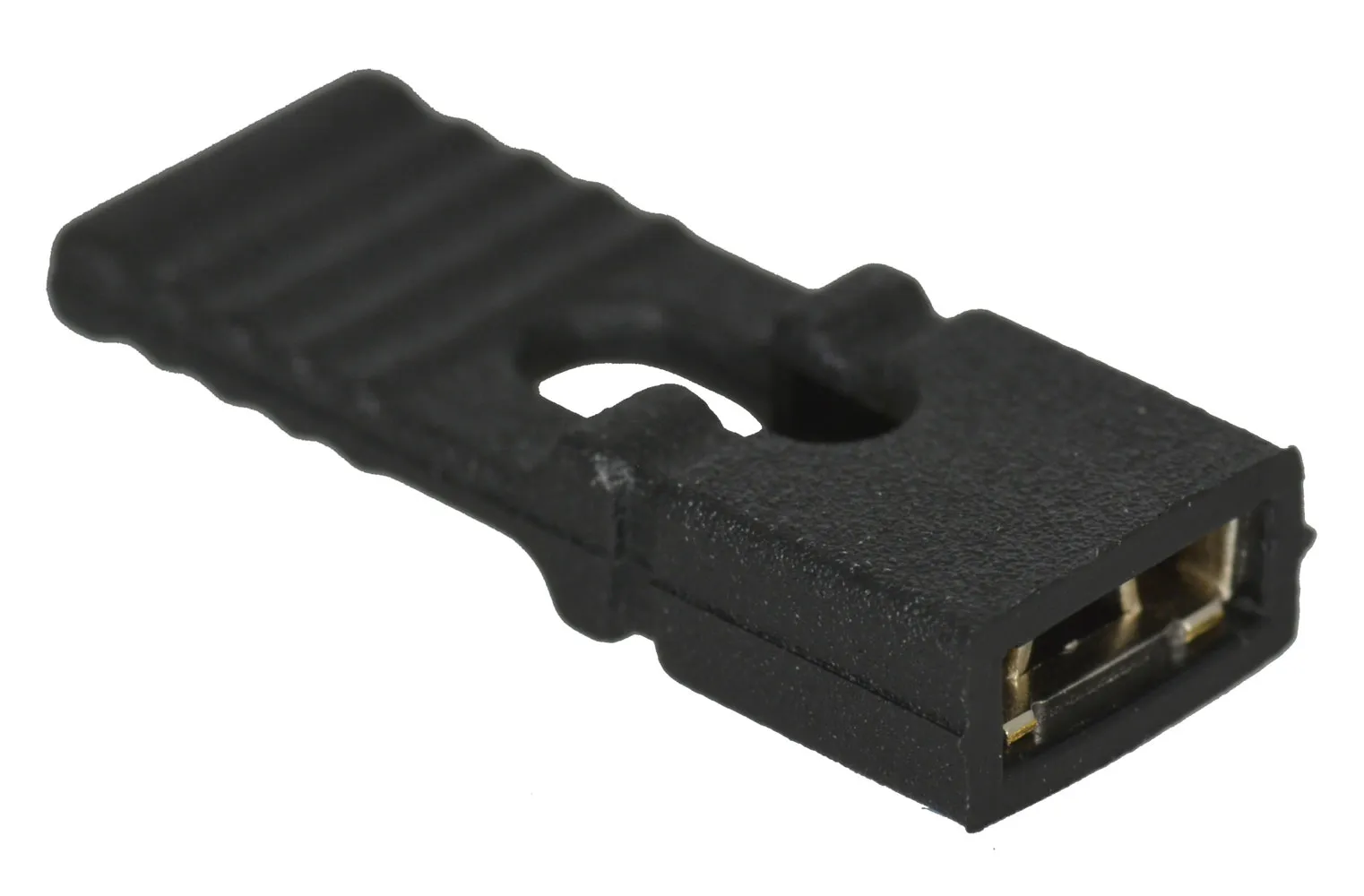

Shorting Block Jumper with Black Tab 0.1"
Specifications
- RoHS compliant
- Shunt for shorting 2-pin male headers
- Dimensions: 13.48mm H x 5.03mm W x 2.38mm D
Product Identification
Product Type:Closed Top
Dimensions & Appearance
Color:Black Tab
Depth:2.54 mm
Length:6.47 mm
Features
Number of Rows:1
Number of Contacts:2
Contact Material:Brass
Housing Material:Polyamide66
Pitch:0.100 in., 2.54 mm
Maximum Contact Resistance:30 mOhm
Contact Plating:Gold
Current Rating:1 A
