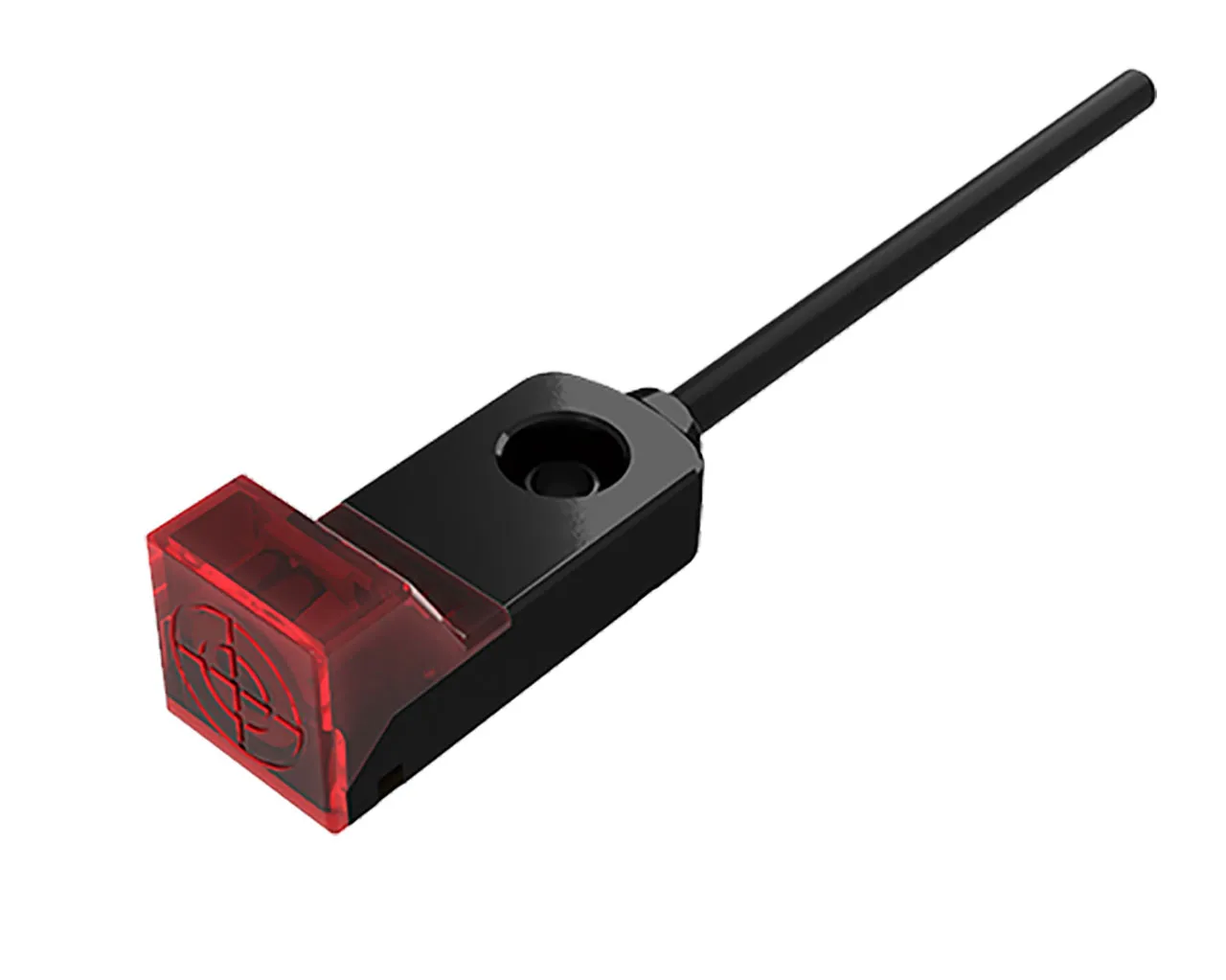

Rectangular Inductive Proximity Sensor PNP-NO/NC 12-30VDC 100mA Top Surface 4mm Sense Distance

Features

• Surge suppression and overload protection
• Compact and durable; IP66 rated
• Single screw hole mounting
• 2-in-1 Output Type: PNP-N.O./N.C
• Sensing Distance: 4 mm
• Secure Sensing Distance: 0 to 3.2 mm
• Standard Sensing Object: Iron / 12 x 12 x 1 mm
• Sensing Type: Top Surface
• Response Time: 700 Hz
• Hysteresis: ≦ 10% of sensing distance
• Operating Voltage: 12 to 30 VDC
• Current Consumption: ≦ 8 mA no-load
• Load Current: 100 mA Max. at 24 VDC
• Wiring Method: Pre-wired, 3-wire, 2 meters (6.5 ft.)

Overview

The Inductive Proximity Sensor is usually used to detect conductive metals such as iron, aluminum, copper, and others. It can convert the movement information or presence information of the detected object into electrical signals. The advantages of inductive proximity sensors include sensing in a non-contact manner, which will not wear out or damage the detection object, the product life is longer, it's suitable to use even there is oil, dirt or water on the detecting object, and the response speed is faster and not affected by the surface color of the detected object.
