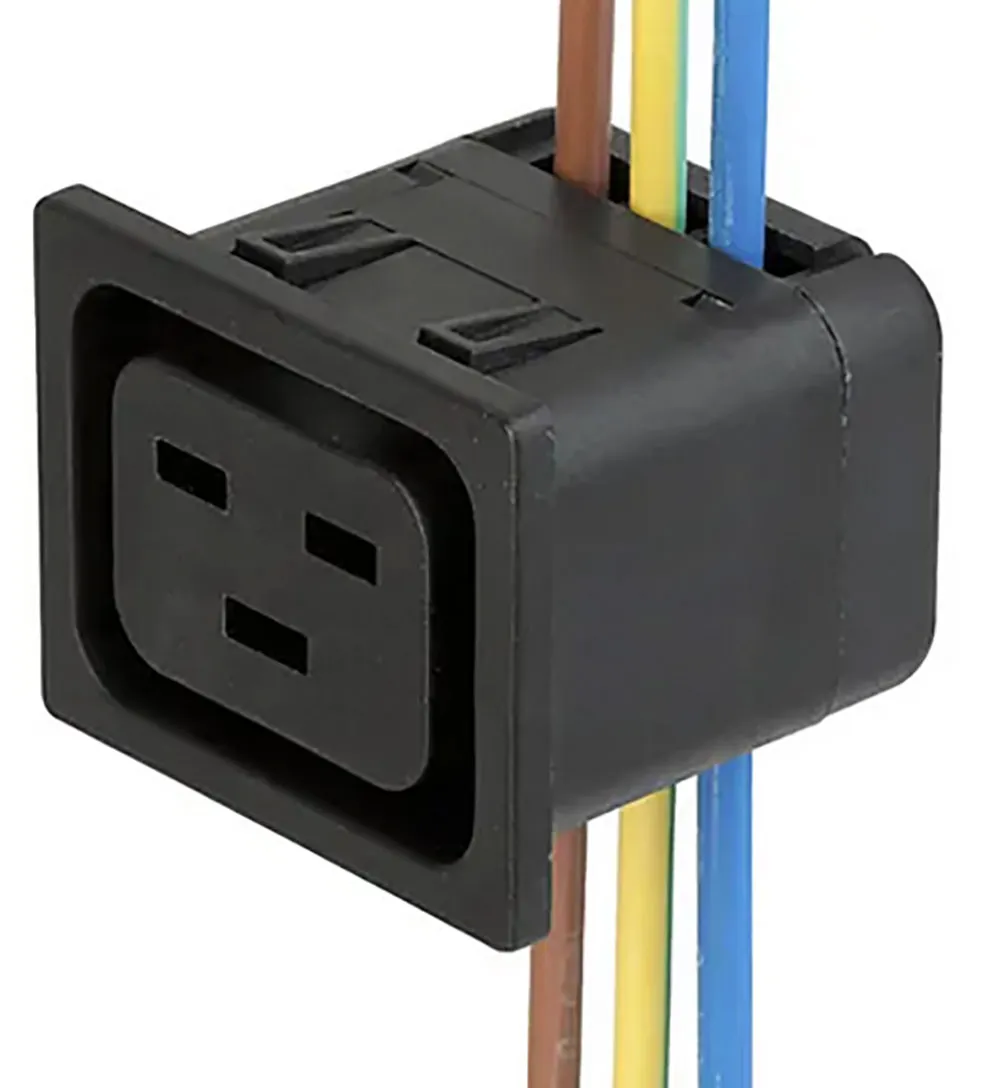

Power Entry Connector Receptacle Female Sockets IEC 320-2-2/J Panel Mount Snap-In (1.5mm)

Specifications

  • Series: 4710
  • Connector Style: IEC 320-2-2/J
  • Connector Type: Receptacle, Female Sockets
  • Current - IEC: 16 A
  • Voltage - IEC: 250 VAC
  • Current - UL: 20 A
  • Voltage - UL: 250 VAC
  • Filter Type: Unfiltered - Commercial
  • Accommodates a Fuse: No
  • Number of Positions: 3
  • Mounting Type: Panel Mount, Snap-In
  • Termination: IDC (cross)
  • Panel Cutout Dimensions: Rectangular - 37.6 mm x 29.5 mm
  • Panel Thickness: 0.059" (1.5 mm)
  • Material Flammability Rating: UL94 V-0
  • Ingress Protection: n/a
  • Approval Agency: cULus, ENEC, CCC

Product Identification

Product Type:Female Socket
Manufacturer Series:ValuePro

Dimensions & Appearance

Mounting Hole:Rectangular - 37.60mm x 29.50mm
Body Orientation:Straight
Mounting Type:Panel Mount, Snap-In

Features

Fused:No
Filtered:No
Contact Gender:Female
Switch Function:Not Switched
Max Panel Thickness:1.5 mm, 0.059 in.
Connector Type:C19
Termination:IDC ("cross")
Voltage Rating:250 VAC
Current Rating:16 A
,
