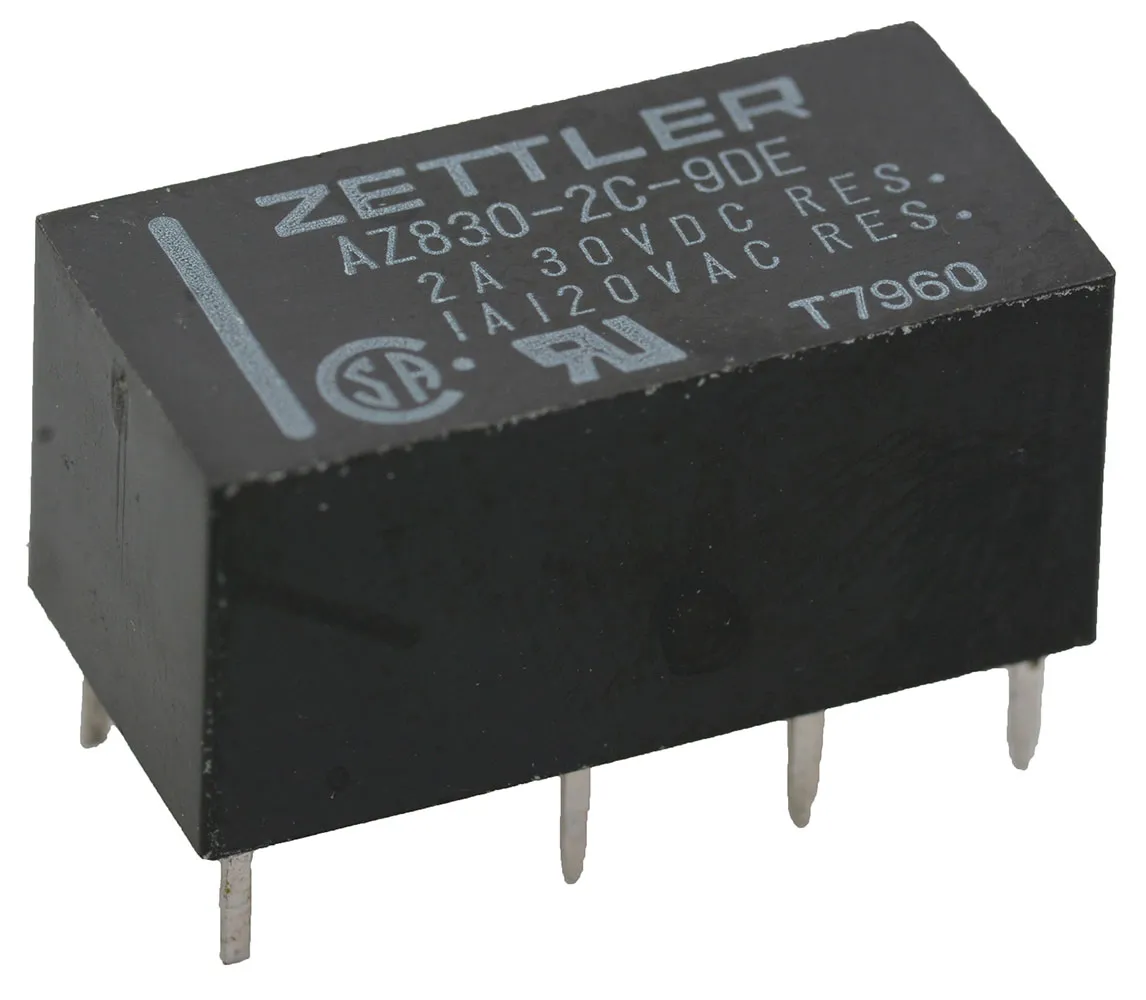

Polarized DIP Relay DPDT 2 Form C 9VDC 203 Ohm

Specifications

  • Single Side Stable
  • Contact Arrangement: DPDT (2 Form C)
  • Rating: 1A @ 120 VAC, 2A @ 30 VDC
  • Coil Voltage: 9 VDC
  • Coin Resistance: 203 Ohms
  • Latching relay
  • DIP-style package; fits standard 16-pin socket

Dimensions & Appearance

Length:20 mm
Height:9.8 mm
Width:9.9 mm

Features

Relay Construction:Latching, Double Coil
Coil Voltage:9 VDC
Pins:8
Contact Current:1 A, 2 A
Contact Voltage:120 VAC, 30 VDC
Contact Form:DPDT
Coil Resistance:203 Ohm
,
