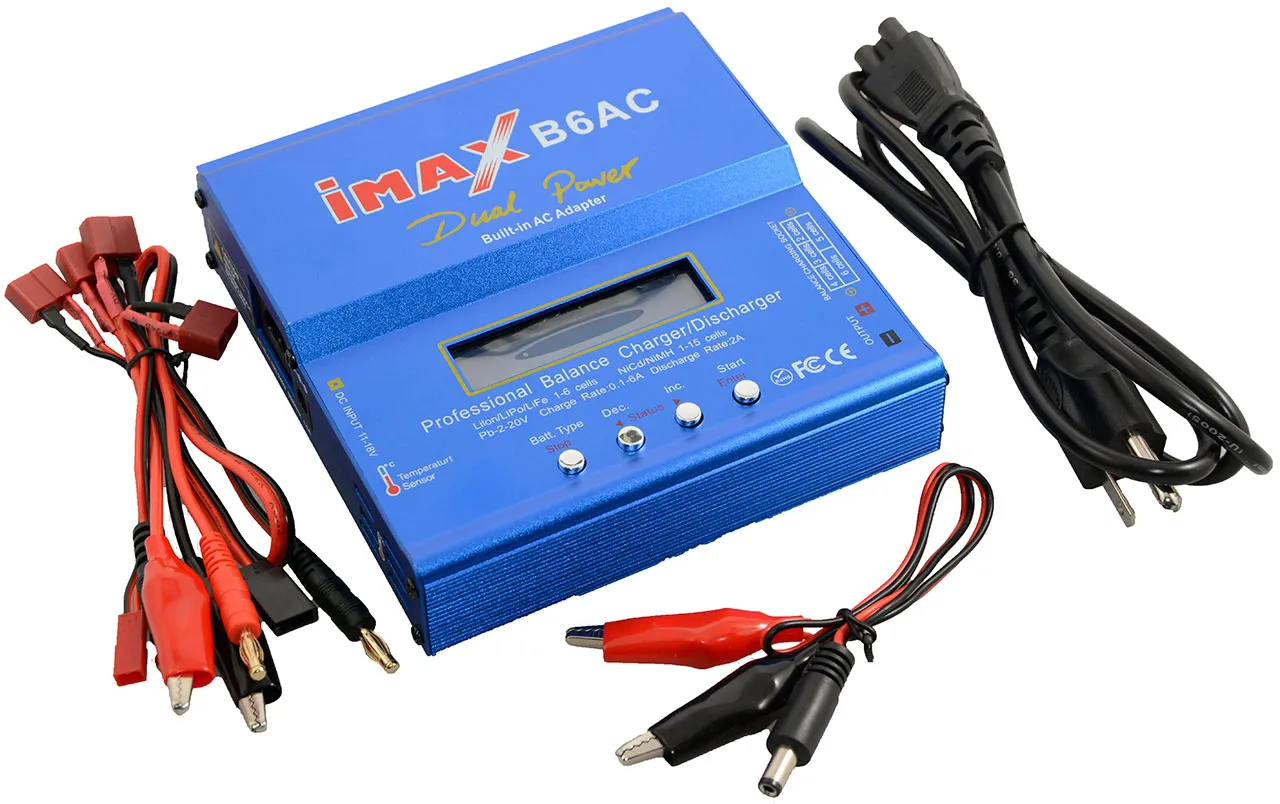

Multi-Function LiPo Combination Professional Balance Battery Charger and Discharger
Features
- Microprocessor controlled
- High-power and high-performance circuit
- Input Voltage: 110 to 240 VAC
- Output Power: <150 W
- Output Current: 0A to 6A
- Max Output Power: 80 W
- Balance Current: <200 mA
- LiIon/LiPo/LiFe: 1 to 6 cells
- NiCd/NiMH: 1 to 15 cells
- Lead acid (Pb): 2 to 20 volts
- Charge Rate: 0.1A to 6A
- Discharge: 0.1A to 2A
Overview
Besides charging LiPo batteries, it can also charge Li-Ion, LiFe (lithium iron phosphate), NiCd, NiMH, and Pb batteries. The maximum charge current up to 6A is able to charge your battery even faster.
Product Identification
Additional Feature:For LiPo, For Li-Ion, For LiFe, For NiCd, For NiMH, For Lead-Acid
Manufacturer Series:B6AC
Compliance
Agency Approvals: FCC, CE
Dimensions & Appearance
Color:Blue
Operating conditions
Minimum Operating Temperature:0°C
Maximum Operating Temperature:40°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:110 VAC to 240 VAC
Maximum Input Current:2 A
Output
Output Range:2 VDC to 20 VDC
Output Connector Type:Multiple Cables
Output Voltage:Battery Dependent
Output Current:6 A
Features
PFC Function:No
AC Power Cord:Included NEMA5-15P to C5
Efficiency:N/A
Power Rating:80 W
