Linear AC DC Converters 1 Output 15VDC 100-240 VAC Input

Features

  • Type: Linear
  • Number of Outputs: 1
  • Voltage - Input: 100, 120, 220, 230, 240 VAC
  • Voltage - Output 1: 15 VDC
  • Current - Output 1: 3 A
  • Power (Watts): 45W
  • Applications: ITE (Commercial)
  • Voltage - Isolation: 3 kV
  • Efficiency: 55%
  • Operating Temperature: 0°C to 50°C
  • Features: Adjustable Output, Remote Sense
  • Mounting Type: Chassis Mount
  • Size / Dimension: 5.62" L x 4.87" W x 2.95" H (142.8mm x 123.7mm x 74.9mm)

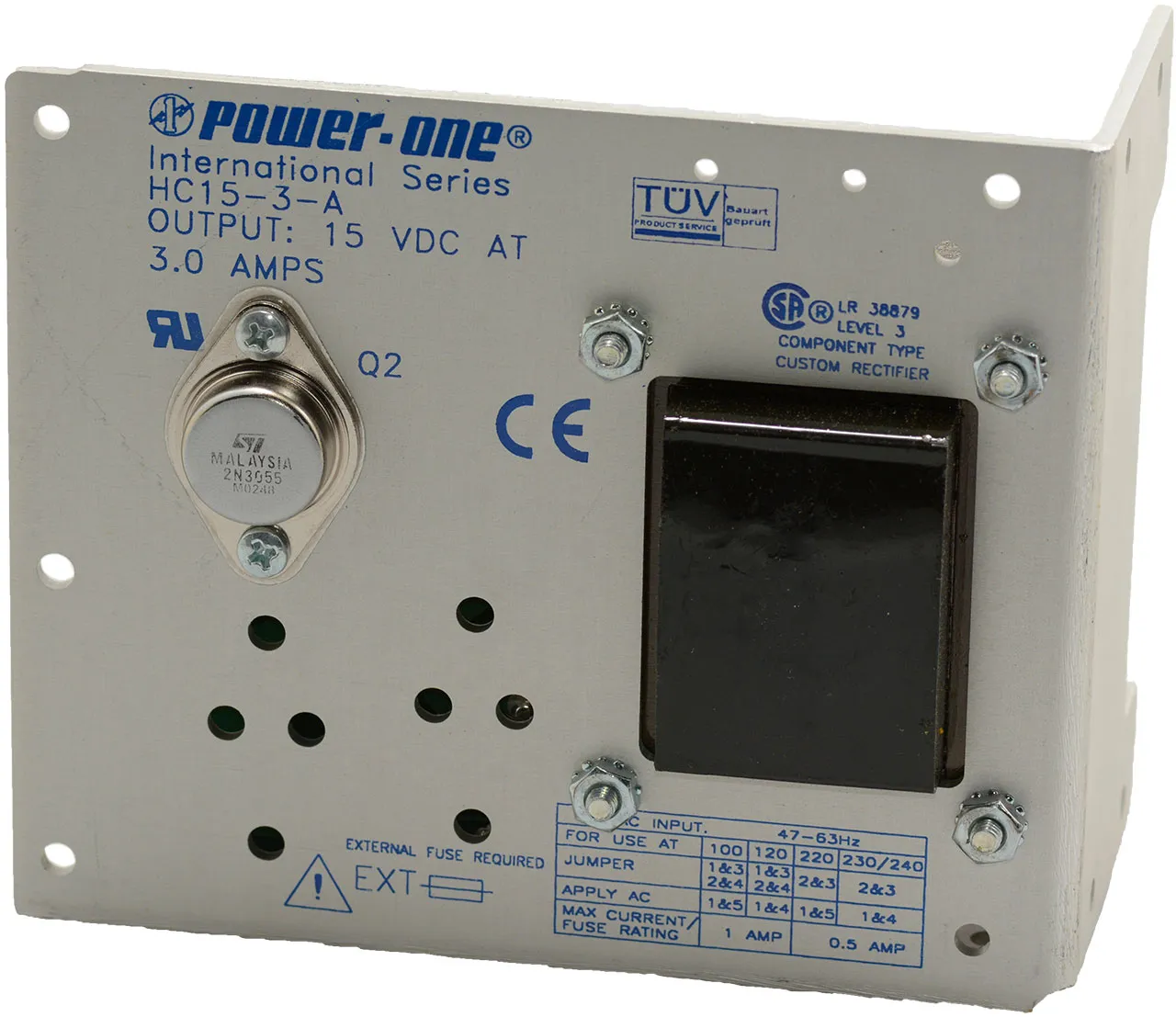

Connection Side of Power Supply

Product Identification

Additional Feature:Adjustable Output, Remote Sense
Product Type:External Power Supply
Manufacturer Series:HC15

Input

Input Voltage:100 VAC, 120 VAC, 220 VAC, 230 VAC, 240 VAC

Output

Output Voltage:15 VDC
Output Current:3 A

Features

Efficiency:55%
AC Power Cord:N/A
Power Rating:45 W
,
