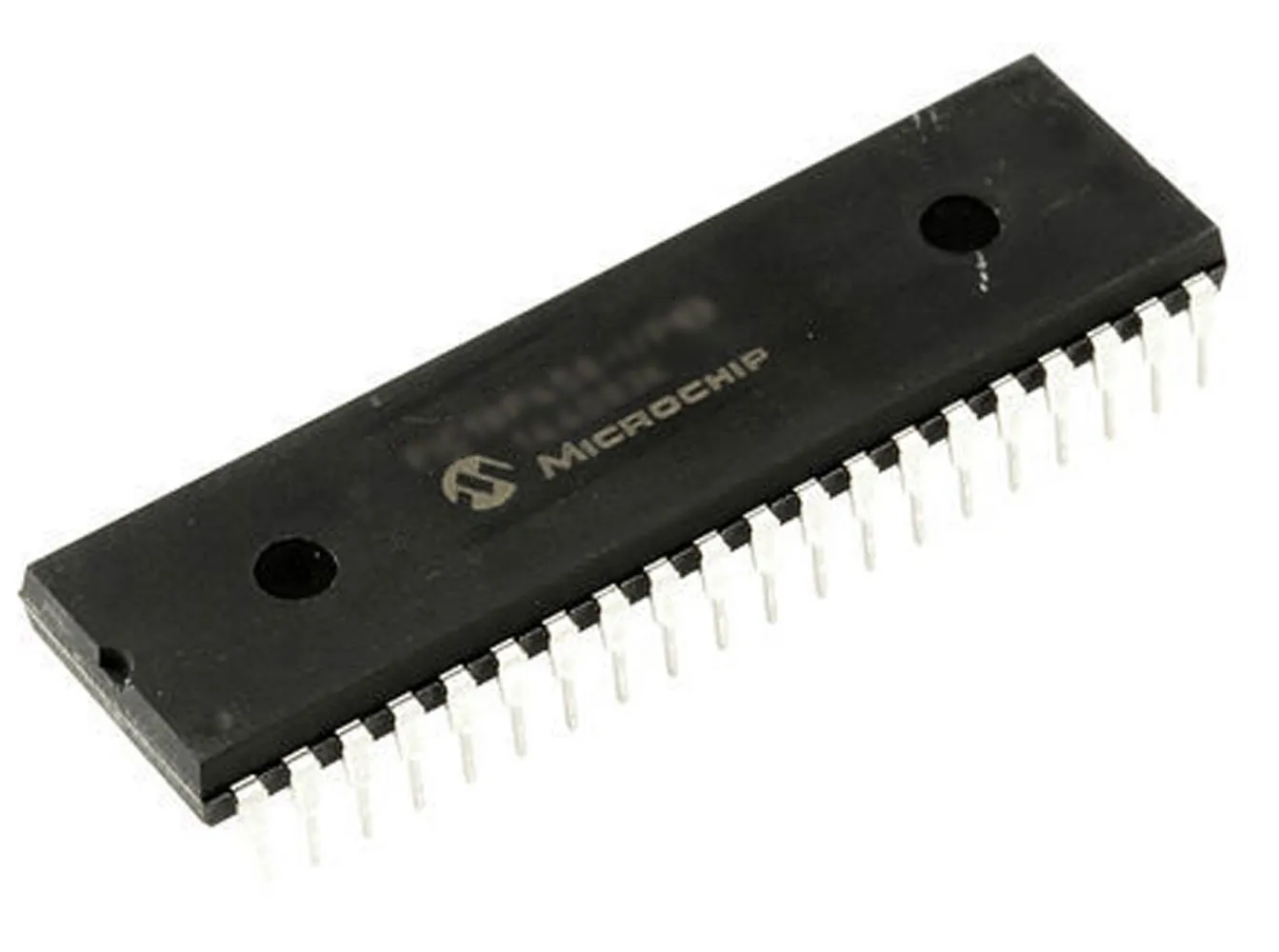

8-bit 14.3KB Flash Microcontroller

Features

  • Packaging: PDIP-40
  • RISC Architecture
  • Voltage: 5V

    • Product Identification

    Product Type:Microcontroller
    Family:PIC16

    Dimensions & Appearance

    Width:13.84 mm
    Height:3.81 mm
    Length:52.26 mm
    Mounting:Through Hole

    Operating conditions

    Minimum Operating Temperature:-40°C
    Maximum Operating Temperature:85°C

    Packaging

    Packaging:Tube
    Package:PDIP-40

    Input

    Maximum Input Voltage:5.5V
    Minimum Input Voltage:4V
    Input Voltage:5V

    Features

    Data Bus Width:8Bit
    Instruction Set Architecture:RISC
    Number of Timers:3
    On-Chip ADC:8-chx10-bit
    Program Memory Type:Flash
    Interface Type:CCP/I2C/MSSP/SPI/USART
    Screening Level:Industrial
    Number of Programmable I/Os:33
    Program Memory Size:14.3KB
    Maximum Clock Frequency:20MHz
    RAM Size:368Byte
    Device Core:PIC
    Maximum Speed:20 MHz
    Pins:40
    ,
