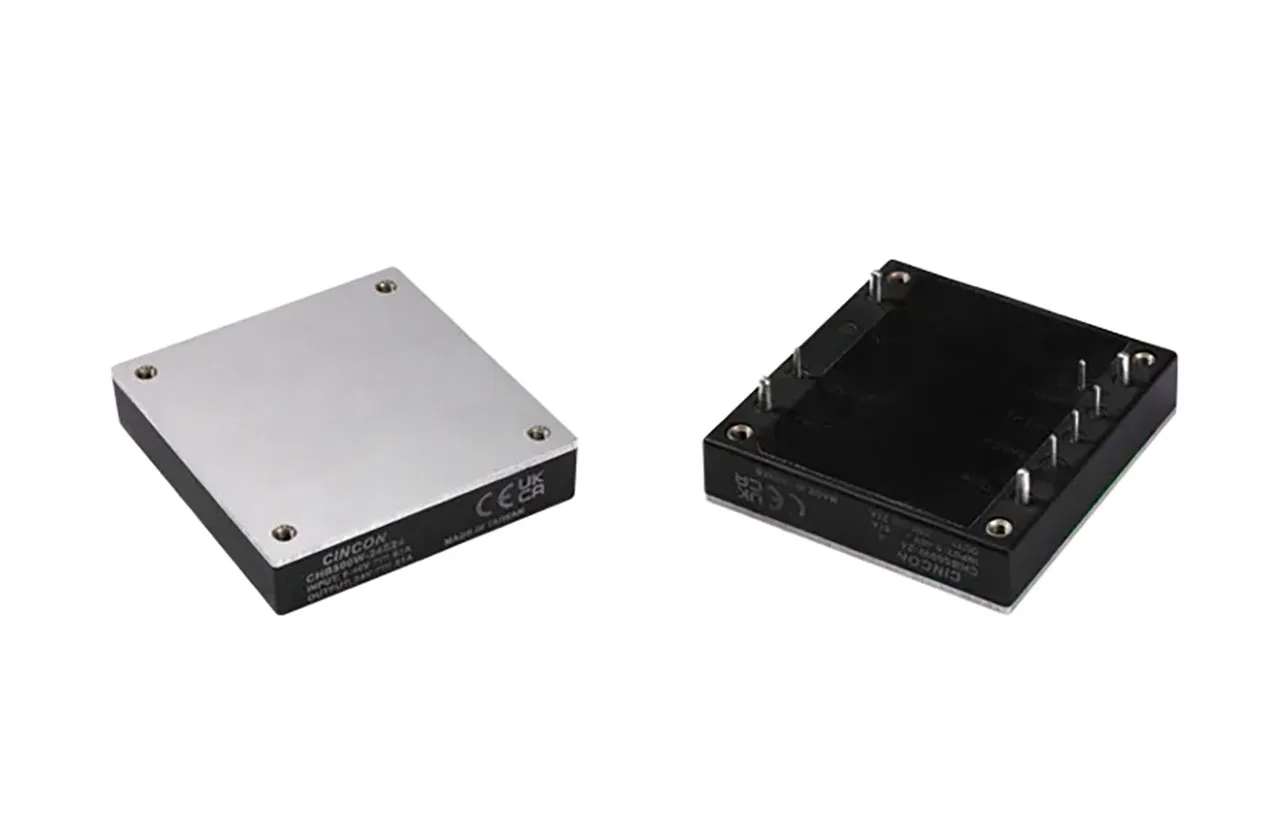

Isolated Regulated DC-DC Converter 500W 54V 9.26A Out 9-40Vin Negative Logic Remote ON/OFF with Parallel Control

Jameco Part #:

Manufacturer #:

Non Cancelable

Non Returnable

Product Price:

$289.950

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$289.950	-	-
5+	$260.950	29.00	10%
25+	$233.950	56.00	19.31%

Efficiency up to 91.5%
Fixed switching frequency
Regulated outputs
Remote ON/OFF
Low no load power consumption
Fully protected: over temperature, over current, over voltage, UVLO
3000V DC I/O isolation
Operating temperature: -40C to 105C
Half brick size meets industrial standard 2.28" x 2.4" x 0.5"
Safety meets UL/IEC/EN 62368-1 2nd (Basic Insulation)
Shock and vibration MIL-STD-810F compliant
Fire & smoke EN 45545-2 compliant
5000m operating altitude
Opional model includes single wire parallel control (those with model# suffix "-PC")

Isolated Regulated DC-DC Converter 500W 54V 9.26A Out 9-40Vin Negative Logic Remote ON/OFF with Parallel Control.

Product Identification

Type:Isolated

Additional Feature:Negative Logic Remote ON/OFF, Parallel Control

Product Type:DC-DC Regulated Single Output SMPS

Manufacturer Series:CHB500W

Agency Approvals:UL, CE, EN, UKCA

Color:Black

Height:0.5 in.

Width:2.28 in.

Length:2.40 in.

Maximum Operating Temperature:105°C

Minimum Operating Temperature:-40°C

Input Frequency:N/A

Input Voltage Range:9 VDC to 40 VDC

Input Voltage:24 VDC

Maximum Input Current:22.4 A

Number of Outputs:1

Output Connector Diameters:1 mm

Output Connector Type:PC Pins

Output Voltage:54 VDC

Additional Output Voltages (VDC):N/A

Output Current:9.26 A

Isolation Voltage:3000V

Pins:8

AC Power Cord:N/A

Efficiency:90.5%

Power Rating:500 W
