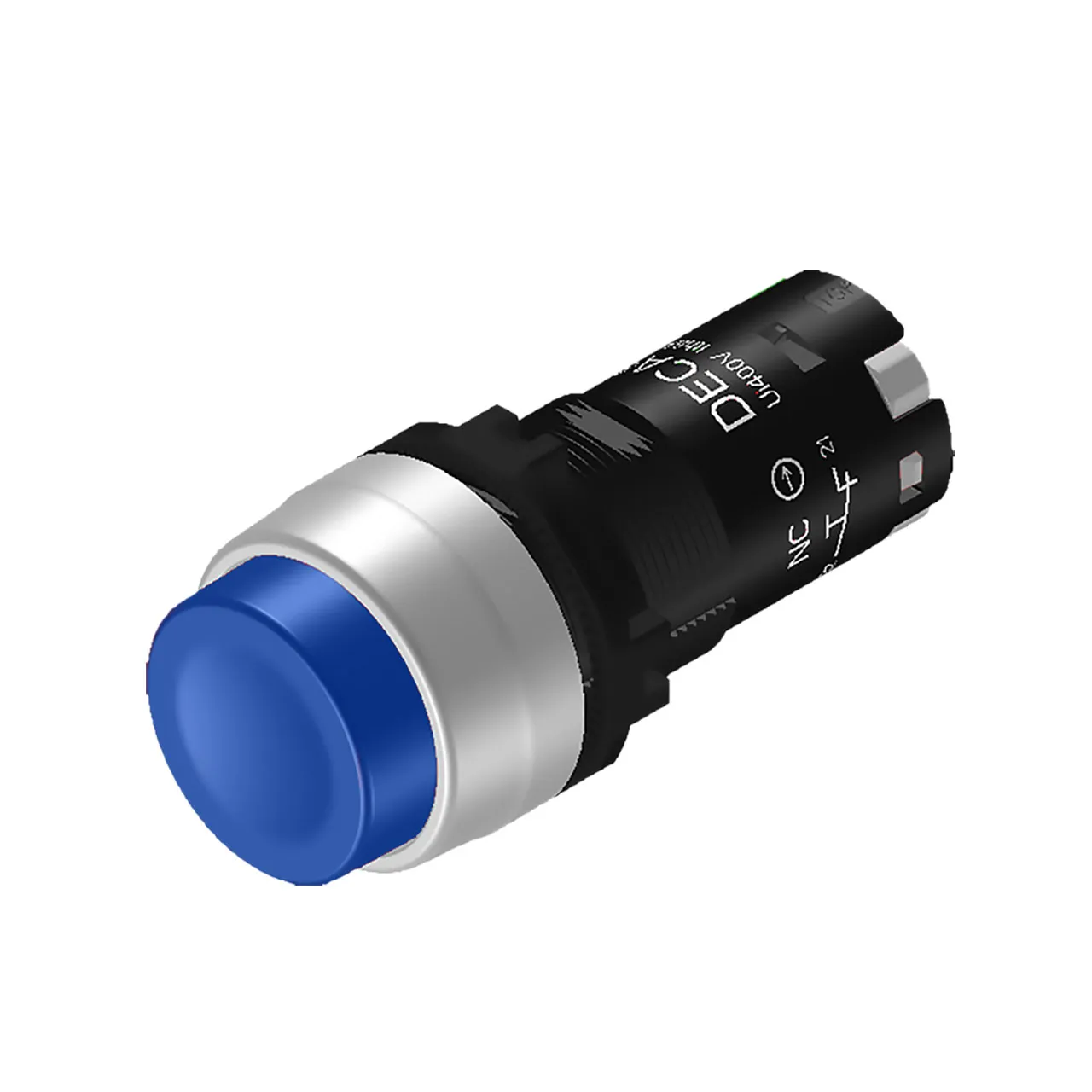

Industrial Panel Mount Push Button Switch Maintained 1NC Blue with Metal Bezel 22mm Assembly Hole Push-In Wiring

Features

    Non-Illuminated switch
  • Maintained operation
  • Solid housing design for operator and contact block to reduce installation space
  • Complete type with 22mm version
  • Round with metal colored bezel
  • IP65 protection rating
  • With anti-rotation latch design on the operator
  • Tighten or disassemble the fixing nut by hand tools or finger freely
  • Single contact and double wiring holes design, capable of solid wire, strand wire and European terminal wiring
  • New partition and spring structure design, increase the wire holding force and stability
  • The contact blocks and lamp holders are distinguished by color which is clearly recognizable
  • Waterproof Silicon Sleeve: Provides IP66 protection for the contact under the mounting panel

Overview

Industrial Panel Mount Push Button Switch Maintained 1NC Blue with Metal Bezel 22mm Assembly Hole Push-In Wiring

Product Identification

Additional Feature:IP66, Metal Bezel
Product Type:Industrial Push Switch

Compliance

RoHS Status:ROHS Compliant

Dimensions & Appearance

Body Color:Silver
Mounting Style:Panel, Front
Diameter:1.14 in.
Depth:1.65 in.
Height:0.80 in.
Width:1.14 in.
Length:2.45 in.

Features

Minimum Insulation Resistance:100 MOhm
Pins:4
Contact Form:1NC
Electrical Life:100,000 Cycles
Maximum Contact Resistance:100 mOhm
Dielectric Strength:2000 V
Illumination Type:N/A
Switch Function:ON-OFF
Actuator Length:0.19 in.
Color - Actuator/Cap:Blue
Voltage Rating:12 VDC, 30 VDC, 120 VAC, 240 VAC, 380 VAC
Termination Style:Push-In
Actuator Type:Round Button
,
