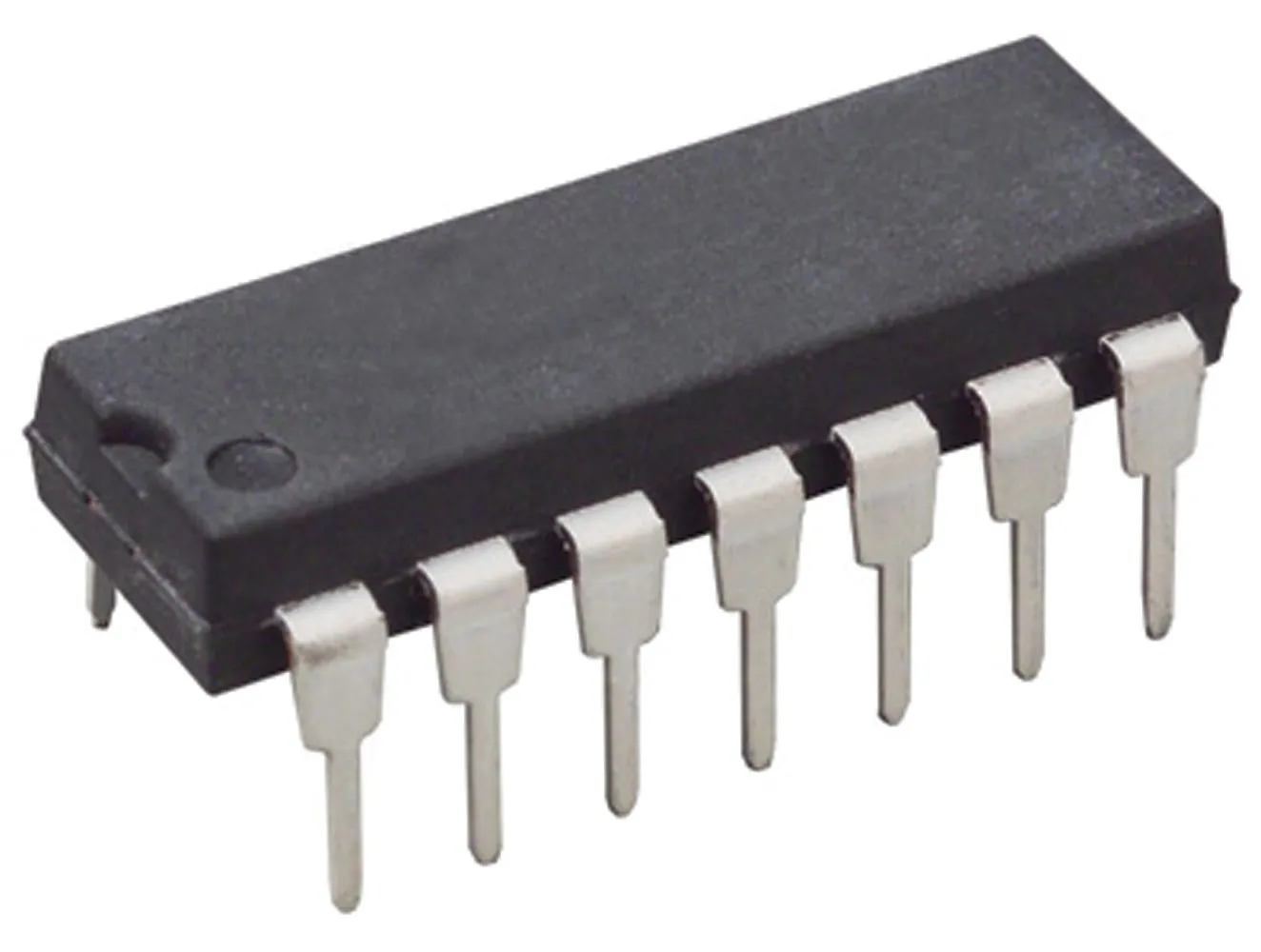

Quad 2-Input OR Gate

Specifications

The CD4071BC and CD4081BC quad gates are monolithic complementary MOS (CMOS) integrated circuits constructed with N- and P-channel enhancement mode transistors. They have equal source and sink current capabilities and conform to standard B series output drive.The devices also have buffered outputs which improve transfer characteristics by providing very high gain. All inputs protected against static discharge with diodes to VDD and VSS.

Features

Symmetrical output characteristics

Maximum input leakage 1 mA at 15V over full temperature range
