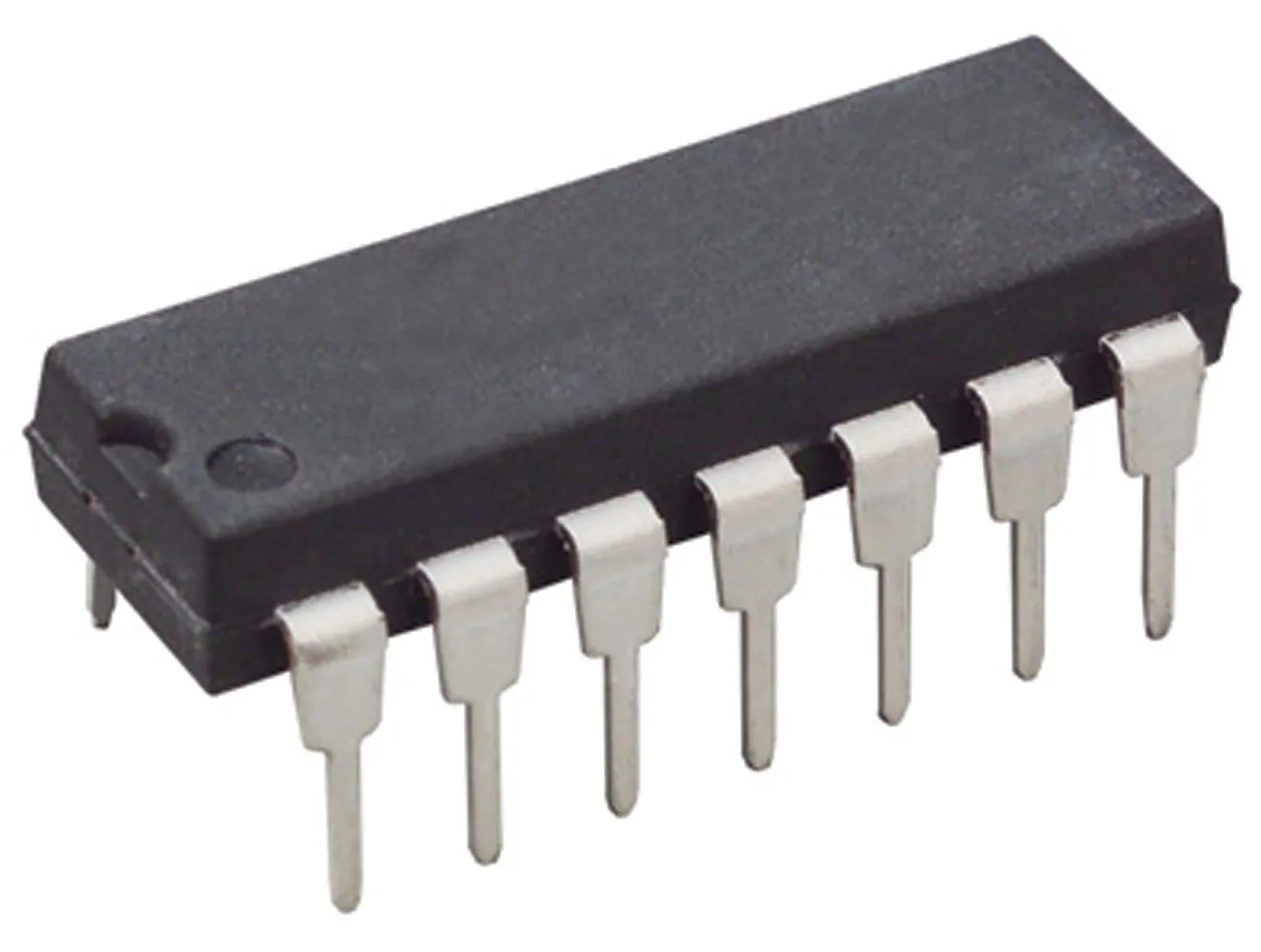

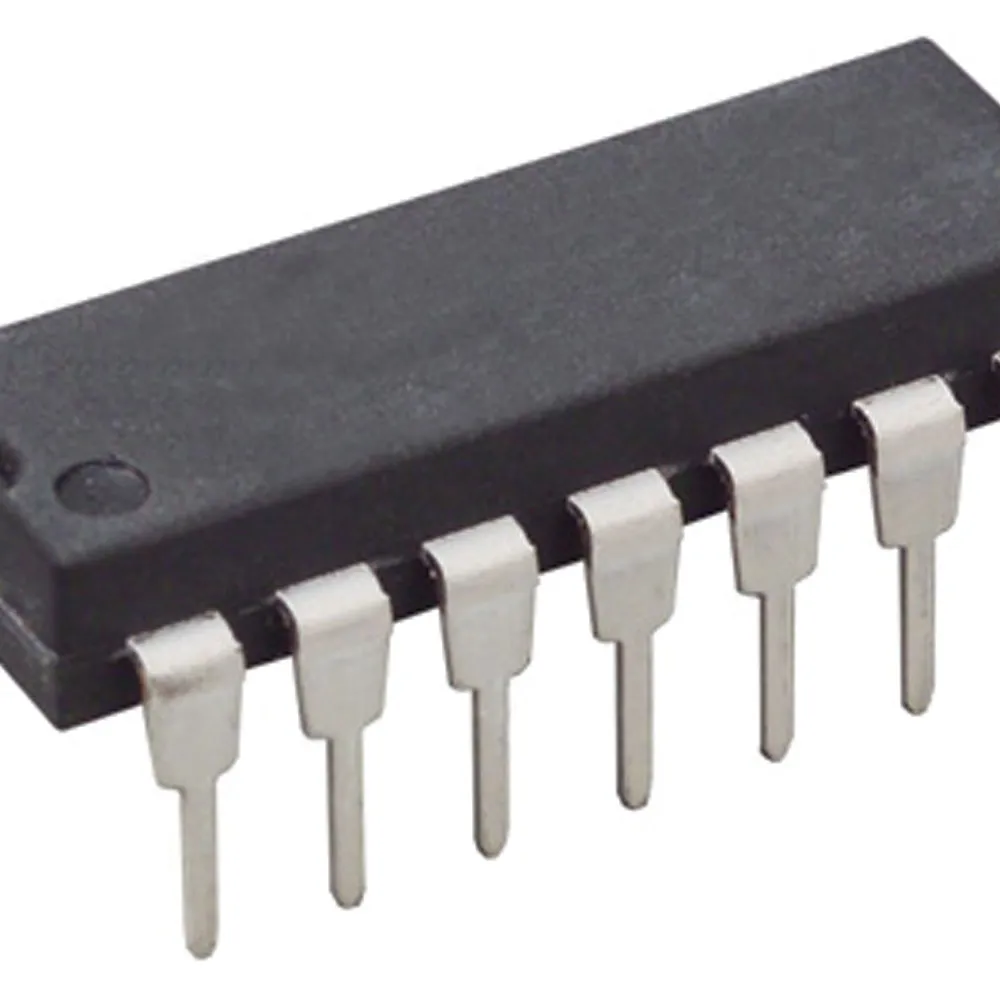

Quad Bilateral Switch DIP-14

Specifications

The CD4066BC is a quad bilateral switch intended for the transmission or multiplexing of analog or digital signals. It is pin-for-pin compatible with CD4016BC, but has a much lower "ON" resistance, and "ON" resistance is relatively constant over the input-signal range.

Features

Wide supply voltage range 3V to 15V

High noise immunity 0.45VDD

Wide range of digital and ±7.5V Peak analog switching

"ON" resistance for 15V operation 80Ω

Matched "ON" resistance ΔR ON=5Ω over 15V signal input

"ON" resistance flat over peak-to-peak signal range

High "ON"/"OFF" 65dB (typ.) output voltage ratio

High degree linearity 0.1% distortion (typ.)

Extremely low "OFF" 0.1nA (typ.) switch leakage

Extremely high control input impedance

Low crosstalk -50dB (typ.) between switches

Frequency response, switch "ON" 40MHz (typ.)

Applications

Analog signal switching/multiplexing

Signal gating

Squelch control

Chopper

Modulator/Demodulator

Commutating switch

Digital signal switching/multiplexing

CMOS logic implementation

Analog-to-digital/digital-to-analog conversion

Digital control of frequency, impedance, phase, and analog-signal-gain
