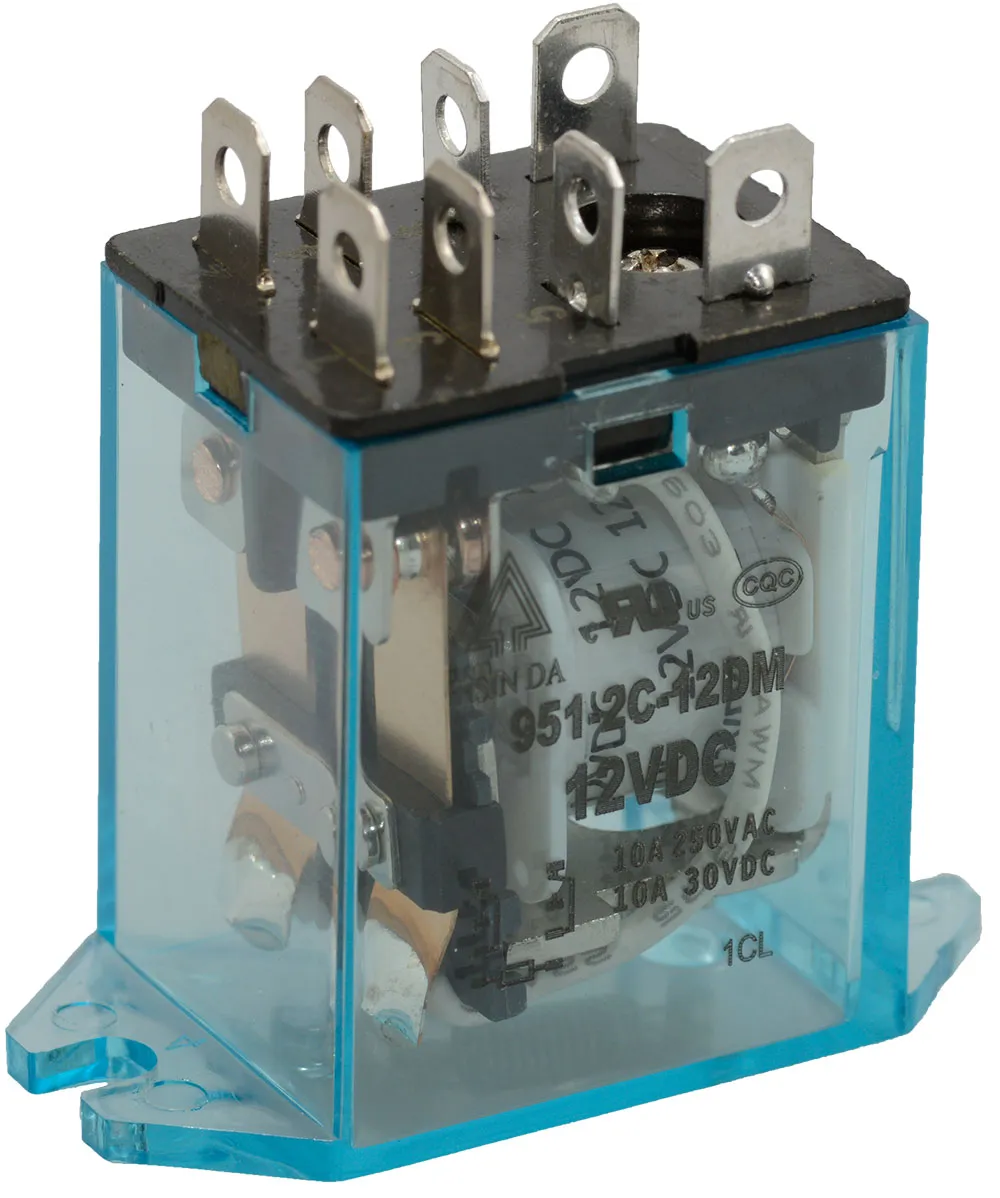

General Purpose Relay DPDT (2 Form C) 12VDC Coil 10A Chassis Mount

Specifications

  • Series: LY
  • Mounting Type: Chassis Mount, Case-surface
  • Coil Voltage: 12 VDC
  • Contact Form: DPDT (2 Form C)
  • Contact Rating: 10 A
  • Switching Voltage: 250 VAC, 125 VDC - Max
  • Coil Current: 75 mA
  • Coil Type: Non-Latching
  • Termination Style: Plug In
  • Seal Rating: n/a
  • Coil Insulation: n/a
  • Must Operate Voltage: 9.6 VDC
  • Must Release Voltage: 1.2 VDC
  • Operate Time: 25 ms
  • Release Time: 25 ms
  • Operating Temperature: -25°C to 55°C
  • Contact Material: Silver Alloy
  • Relay Type: General Purpose
  • Coil Resistance: 160 Ohms
  • Base Number: LY2

Features

Coil Voltage:12 VDC
Coil Current:75 mA
Coil Resistance:160 Ohm
Contact Form:DPDT
Contact Rating:10A@250VAC, 10A@125VDC

Related products

Mating Socket (DIN Rail):P/N: 282191, P/N: 175531
Mating Socket (Standard):P/N: 2321319
,
