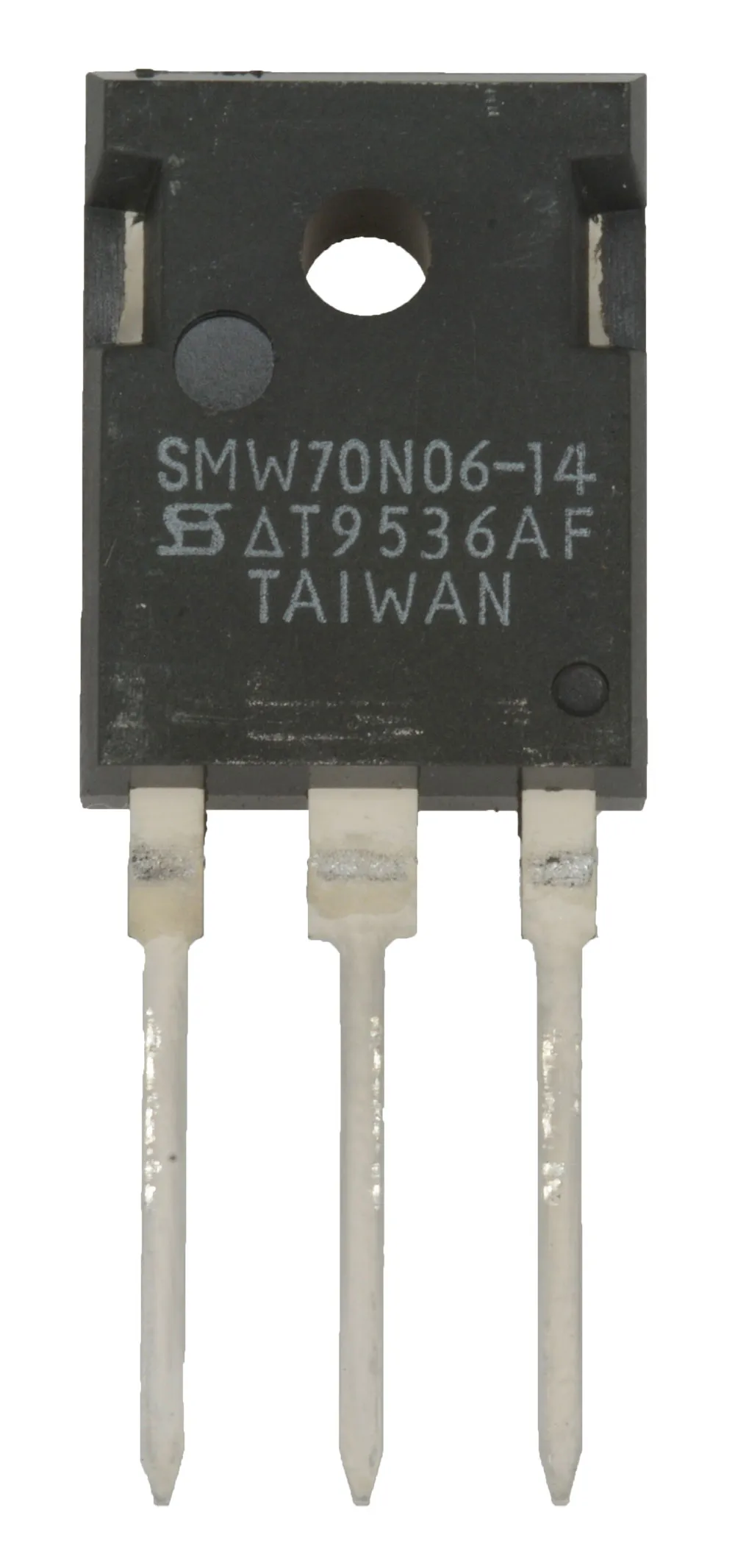

General Purpose N-Channel Transistor 60V 70A TO-220
Features:
- Drain-Source Voltage:: 60V
- Collector Current: 70A
- Packaging: TO-247AD
Product Identification
Product Type:MOSFET
Family:SMW70
Dimensions & Appearance
Width:15.82 mm
Height:5.03 mm
Length:21.1 mm
Mounting:Through Hole
Operating conditions
Maximum Operating Temperature:150°C
Minimum Operating Temperature:-55°C
Packaging
Packaging:Bulk
Package:TO-220-3
Output
Output Power:150W
Features
Number of Elements per Chip:1
Channel Type:N
Transistor Polarity:N
Pins:3
Channel Mode:N-Channel Enhancement
Category:Power MOSFET
Maximum Gate Source Voltage:20V
Maximum Drain Source Voltage:60 V
Repetitive Peak Reverse Voltage:60VDC
Maximum Reverse Current:-
Maximum Continuous Drain Current:70 A
Peak Non-Repetitive Surge Current:280A
Maximum Forward Current:70A
Maximum Forward Voltage:60VDC
Power Dissipation:150 W
Configuration:Single
