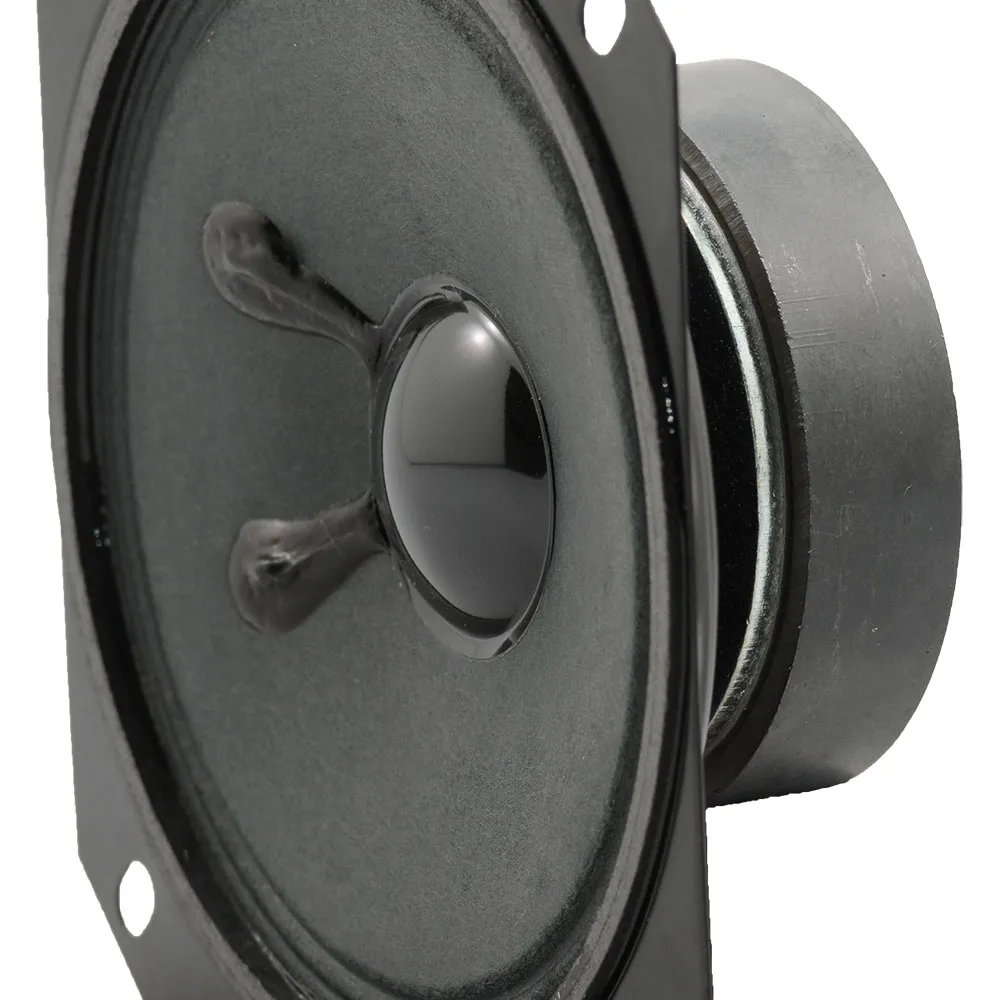

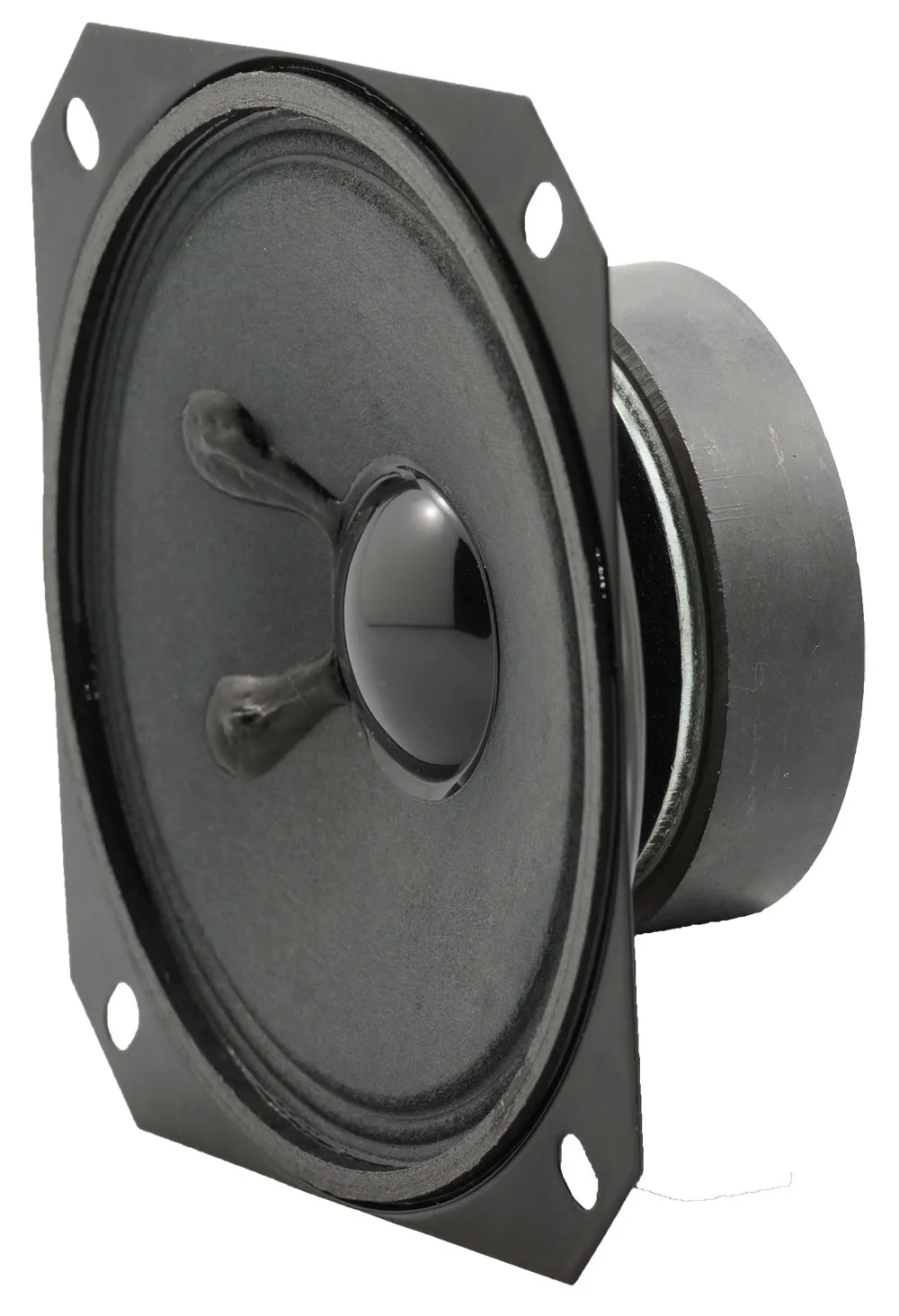

Full Range Speaker 8 Ohm 85dB 800Hz-10kHz Square Frame Ferrite Magnet

Features

  • Paper diaphragm
  • Large magnet
  • Anodized metal surfaces
  • Input Power: 10 W nominal / 15 W maximum
  • Sound output: 85 dB
  • Frequency: 800 to 10,000 Hz
  • Impedance: 8Ω
  • Magnet size: 2.76"Dia. x 0.57"H
  • Speaker size: 4.0"Dia. x 1.54"D

Product Identification

Product Type:Square Ferrite Speaker

Dimensions & Appearance

Depth:1.46 in.
Width:4 in.
Length:4 in.

Input

Nominal Input Power (W):10
Input Power (max) (W):15

Output

Output:85 dB

Features

Magnet Material:Ferrite
Termination Method:0.25" Quick Connect
Impedance:8 Ohm
Magnet Size (Diameter x H) (inches):2.76 x 1.26
Frequency Range:800 Hz to 10000 Hz
,
