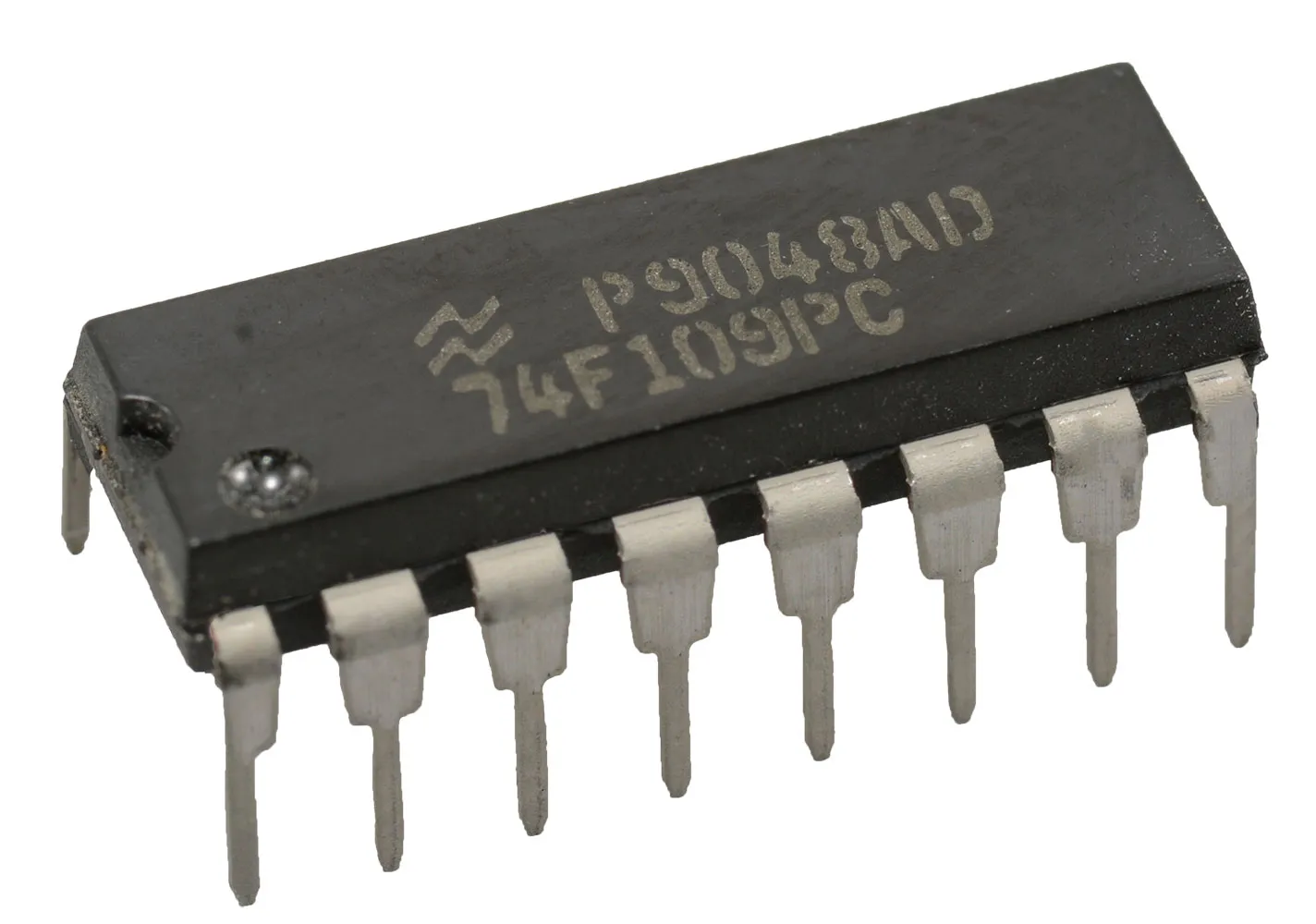

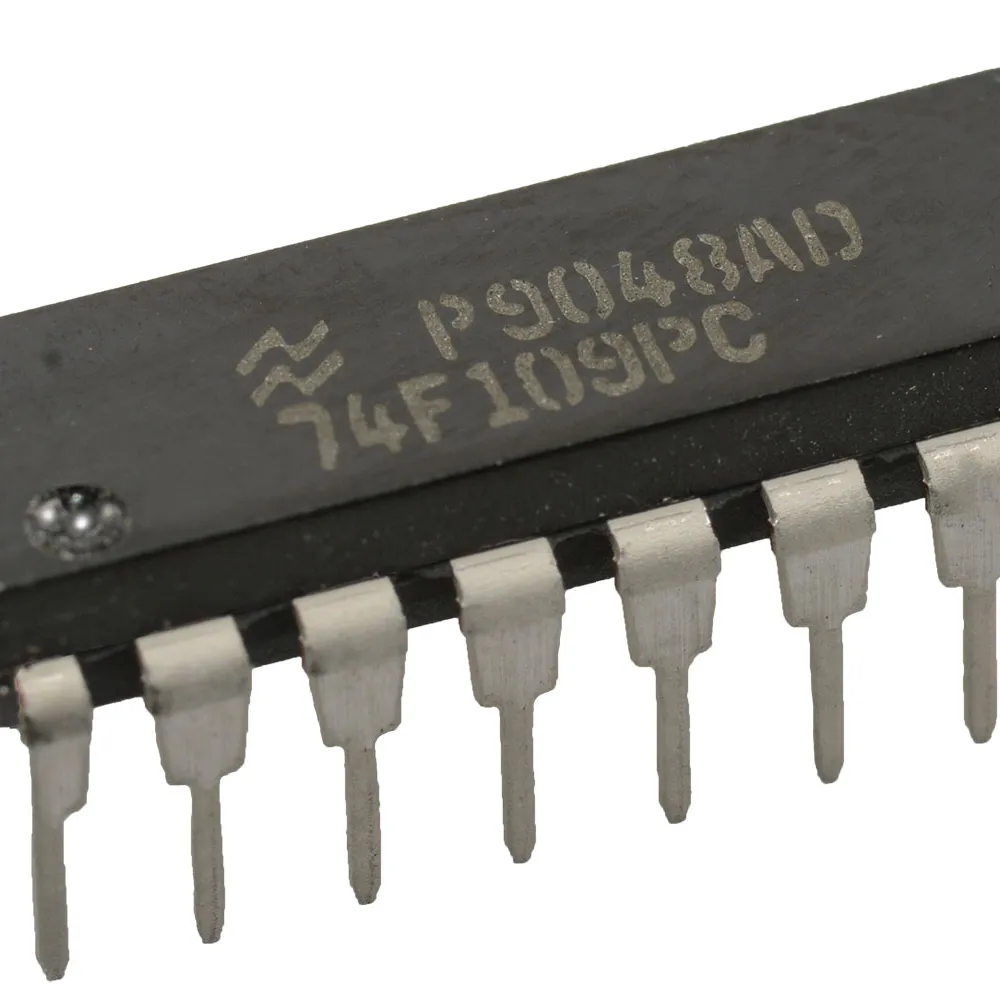

Dual J-K Positive Edge-Triggered Flip-Flop DIP-16

Features

• Series: 74F
• Function: Set(Preset) and Reset
• Type: JK Type
• Output Type: Differential
• Number of Elements: 2
• Number of Bits per Element: 1
• Clock Frequency: 125 MHz
• Max Propagation Delay @ V, Max CL: 8 ns @ 5 V, 50 pF
• Trigger Type: Positive Edge
• Current - Output High, Low: 1 mA, 20 mA
• Voltage - Supply: 4.5 V to 5.5 V
• Current - Quiescent (Iq): 17 mA
• Operating Temperature: 0°C to 70°C (TA)
• Mounting Type: Through Hole
• Package : 16-DIP (0.300", 7.62mm)
• Base Number: 74F109
