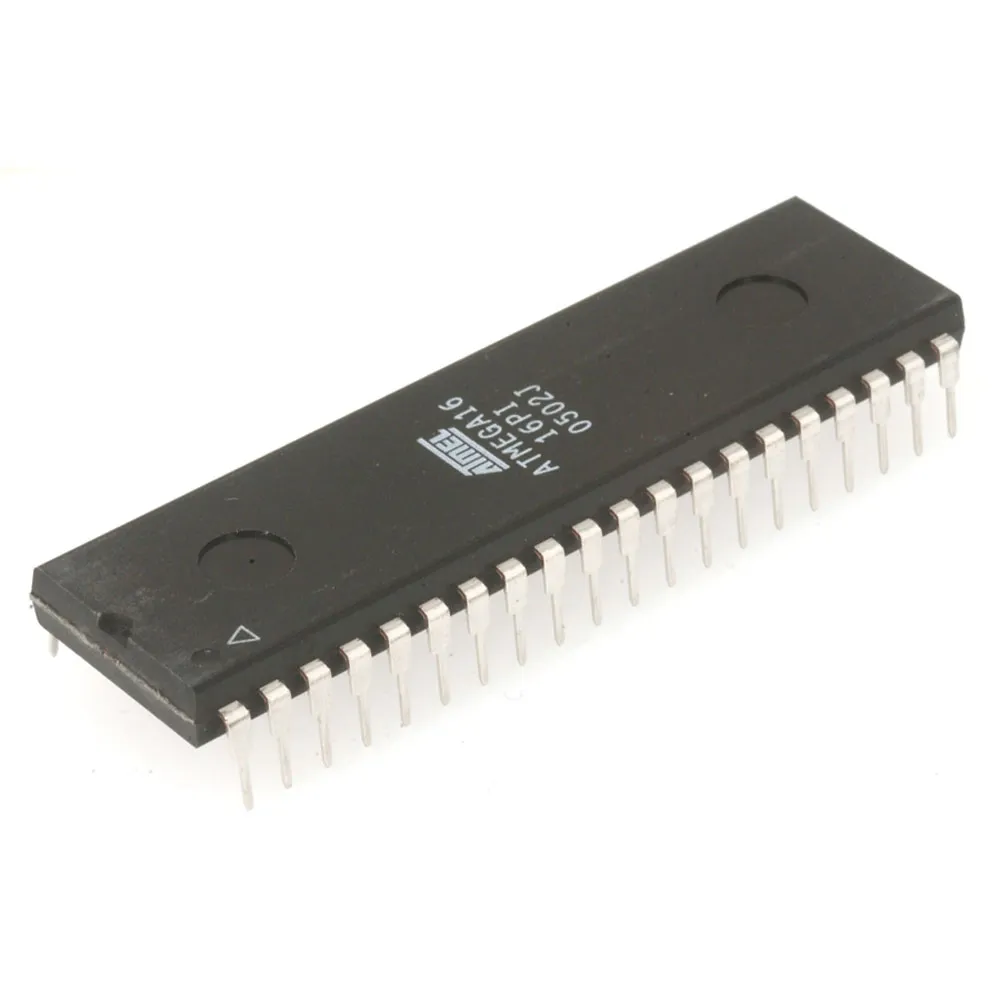

ATmega16 8-Bit AVR Microcontroller with 16KB In-System Programmable Flash

Features

  • High-performance, Low-power AVR® 8-bit Microcontroller
  • Advanced RISC architecture
  • 131 powerful instructions
  • Most Single-clock cycle execution
  • 32 x 8 general purpose working registers
  • Fully static operation
  • Up to 16 MIPS throughput at 16 MHz
  • On-chip 2-cycle multiplier
  • 512 Bytes EEPROM
  • 1K Byte Internal SRAM
  • 40-pin DIP

    • Product Identification

    Product Type:Microcontroller
    Family:ATmega

    Dimensions & Appearance

    Width:13.97 mm
    Height:4.83 mm - 0.38 mm (Min)
    Length:52.58 mm
    Mounting:Through Hole

    Operating conditions

    Minimum Operating Temperature:-40°C
    Maximum Operating Temperature:85°C

    Packaging

    Package:PDIP-40

    Input

    Maximum Input Voltage:5.5V
    Minimum Input Voltage:4.5V
    Input Voltage:5V

    Features

    Data Bus Width:8Bit
    RAM Size:1KB
    Instruction Set Architecture:RISC
    Number of Timers:3
    On-Chip ADC:8-chx10-bit
    Program Memory Type:Flash
    Screening Level:Industrial
    Number of Programmable I/Os:32
    Maximum Clock Frequency:16MHz
    Interface Type:JTAG/SPI/UART
    Device Core:AVR
    Program Memory Size:16KB
    Maximum Speed:16 MHz
    Pins:40
    ,
