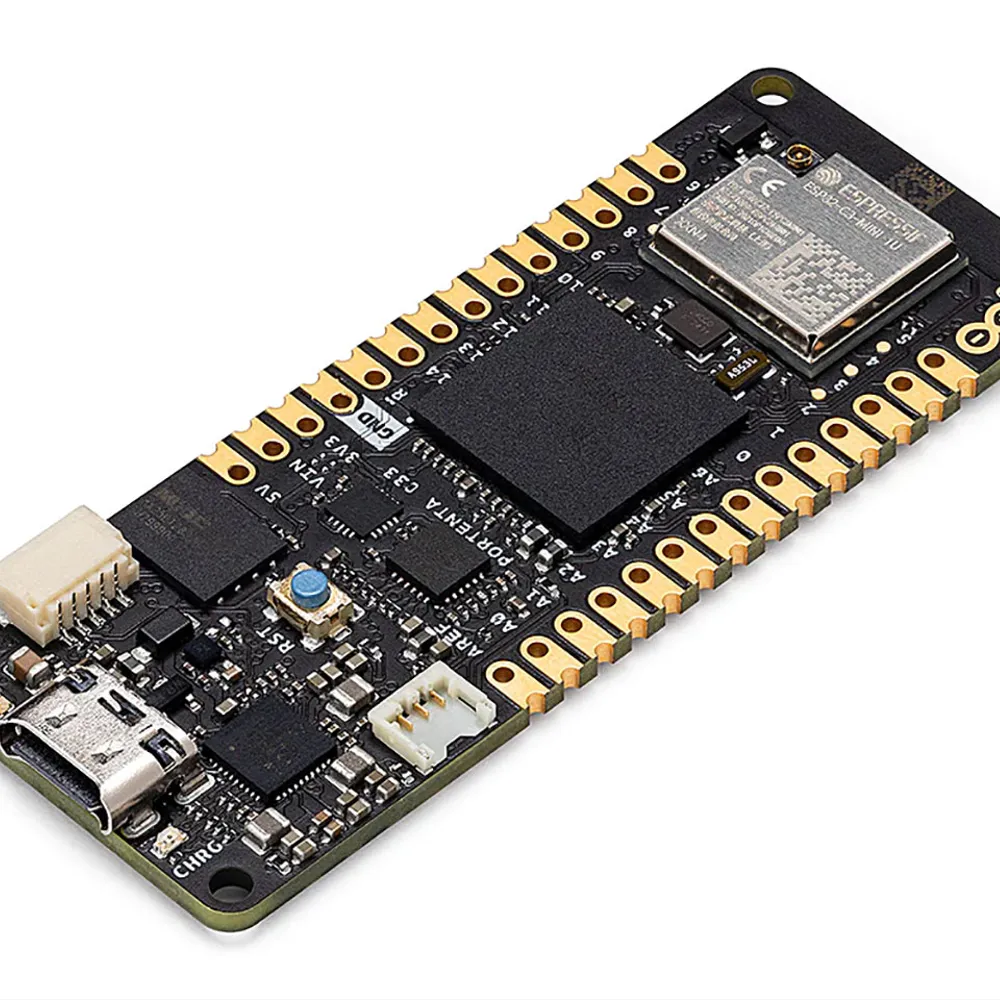

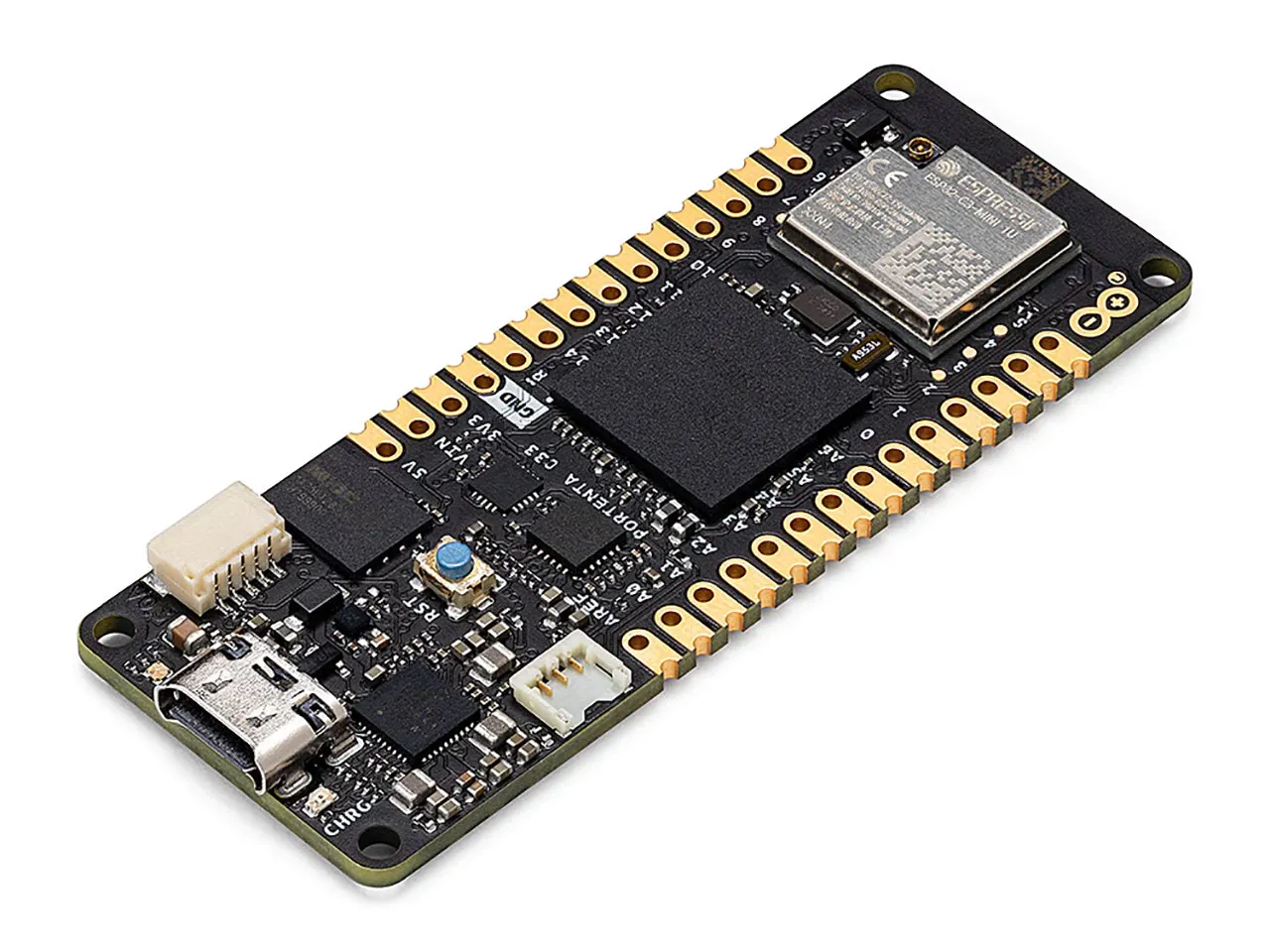

Arduino Portenta C33

Features

• Cost-effective, industrial-grade, secure SOM to make industrial IoT accessible to all
• Ideal for low-cost IoT applications with Wi-Fi®/Bluetooth® LE connectivity
• Supports MicroPython and other high-level programming languages
• Offers industrial-grade security at the hardware level and secure OTA firmware updates
• Leverages ready-to-use software libraries and Arduino sketches
• Perfect to monitor and display real-time data on Arduino IoT Cloud widget-based dashboards
• Compatible with Arduino Portenta and MKR families
• Features castellated pins for automatic assembly lines

Overview

Portenta C33 is a streamlined module that offers the high performance of the Portenta family at a lower price point, thanks to optimizations and streamlined features.

Ideal for developing cost-effective, real-time applications, the Portenta C33 features the Arm® Cortex®-M33 microcontroller by global leader, Renesas, and supports MicroPython and other high-level programming languages. Thanks to its onboard Wi-Fi® and Bluetooth® Low Energy connectivity, the module stands out as an ideal solution for IoT gateways, remote control systems, fleet management and process tracking.

The Portenta C33 can update its firmware over-the-air using the Arduino IoT Cloud or other third-party services, while its secure element ensures hardware security to an industrial standard. Quickly deploying AI-powered projects becomes quick and easy with Portenta C33. Leverage a wide variety of ready-to-use software libraries and Arduino sketches available, as well as widgets that display data in real time on Arduino IoT Cloud-based dashboards. To top it off, the module's form factor is compatible with the Portenta and MKR ranges and features castellated pins - ready for automatic assembly lines and more efficient connections to other components.

Applications

Portenta C33 brings more applications than ever within users' reach, from enabling quick plug-and-play prototyping to providing a cost-effective solution for industrial-scale projects. Applications include:

• Industrial IoT gateway
• Machine monitoring to track OEE/OPE
• Inline quality control and assurance
• Energy consumption monitoring
• Appliances control system
• Ready-to-use IoT prototyping solution

For full documentation and complete technical specs, visit Arduino Docs.

Technical Specifications

• Microcontroller:
  • 1x Arm® Cortex®-M33 core up to 200 MHz
  • 512 kB onboard SRAM
  • 2 MB onboard Flash
  • Arm TrustZone®
  • Secure Crypto Engine 9
• External Memories: 16 MB QSPI Flash
• USB-C High Speed
• Connectivity:
  • 100Mb Ethernet interface (PHY)
  • Wi-Fi®
  • Bluetooth® Low Energy
• Interfaces:
  • CAN
  • SDCard
  • ADC
  • GPIO
  • SPI
  • I2S
  • I2C
  • JTAG/SWD
• Security: NXP® SE050C2 Secure Element
• Operating Temperature: -40°C to +85°C (-40°F to 185°F)
• Dimensions: 66.04 mm x 25.40 mm (2.6" x 1")
