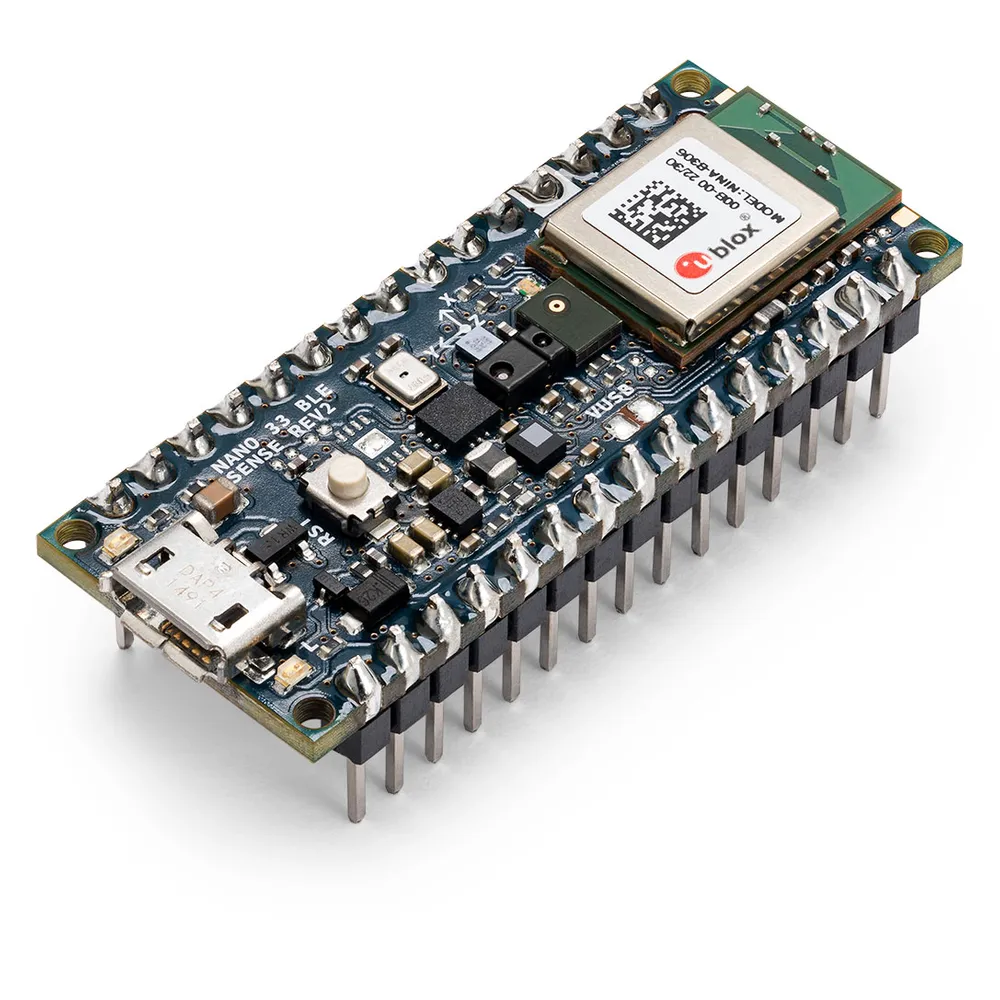

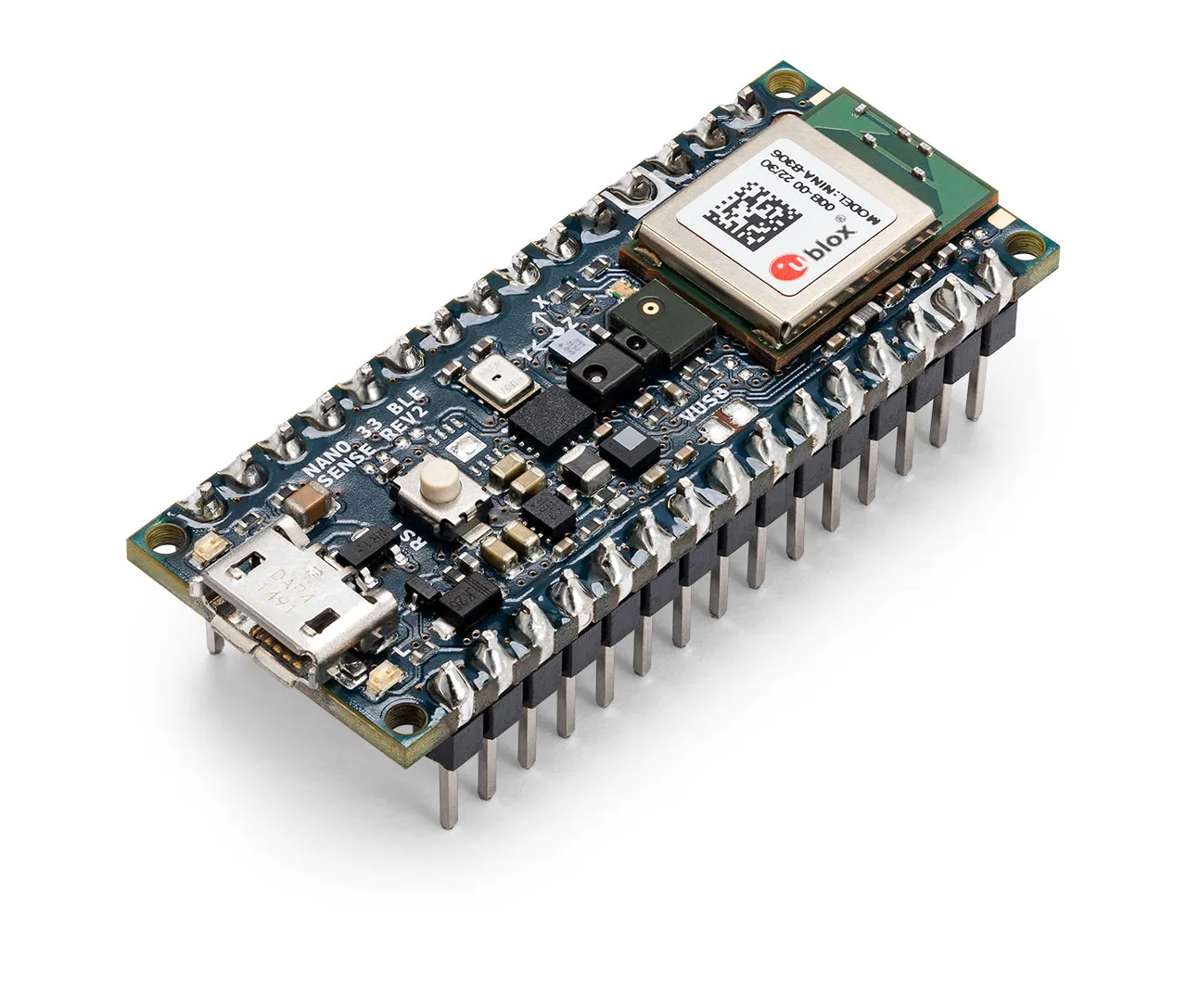

Arduino Nano 33 BLE Sense Rev2 with Headers
Features
- An AI enabled board in the shape of the classic Nano board, with all the sensors to start building your next project right away
- Microcontroller: nRF52840 (datasheet)
- Operating Voltage: 3.3V
- Input Voltage (limit): 21V
- DC Current per I/O Pin: 15 mA
- Clock Speed: 64MHz
- CPU Flash Memory: 1MB (nRF52840)
- SRAM: 256KB (nRF52840)
- EEPROM: none
- Digital Input / Output Pins: 14
- PWM Pins: all digital pins
- UART: 1
- SPI: 1
- I2C: 1
- Analog Input Pins: 8 (ADC 12 bit 200 k samples)
- Analog Output Pins: Only through PWM (no DAC)
- External Interrupts: all digital pins
- LED_BUILTIN: 13
- USB: Native in the nRF52840 Processor
- IMU: BMI270 (datasheet) and BMM150 (datasheet)
- Microphone: MP34DT06JTR (datasheet)
- Gesture, light, proximity, color: APDS9960 (datasheet)
- Barometric pressure: LPS22HB (datasheet)
- Temperature, humidity: HS3003 (datasheet)
Overview
The Arduino Nano 33 BLE Sense Rev2 with headers is Arduino’s 3.3V AI enabled board in the smallest available form factor with a set of sensors that will allow you without any external hardware to start programming your next project, right away.
With the Arduino Nano 33 BLE Sense Rev2, you can:
- Build wearable devices that using AI can recognize movements.
- Build a room temperature monitoring device that can suggest or modify changes in the thermostat.
- Build a gesture or voice recognition device using the microphone or the gesture sensor together with the AI capabilities of the board.
