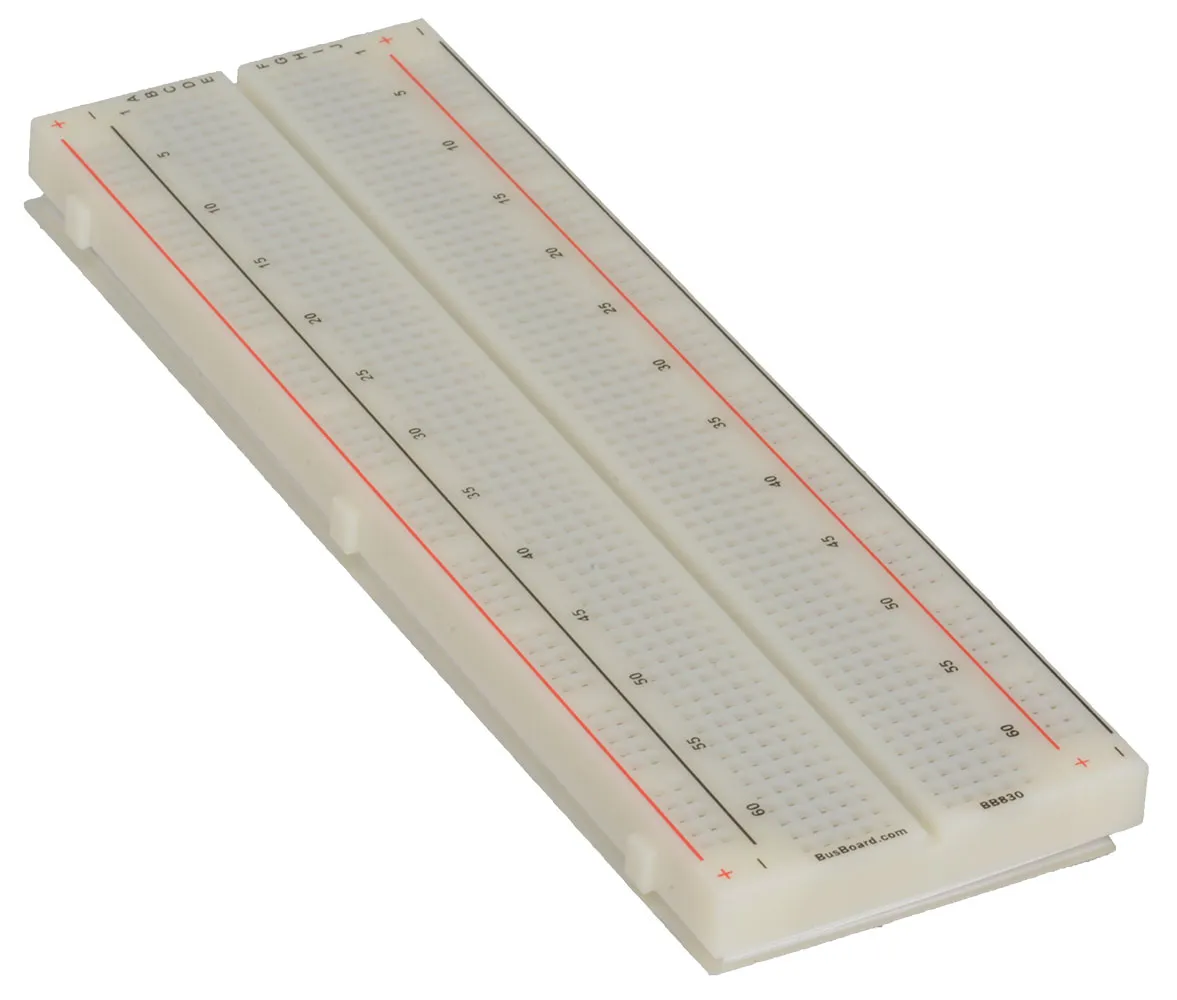

Solderless Plug-In Breadboard

The transparent breadboard is great for students because the internal connections can be seen. It has a total of 830 connection-tie points (i.e. 830 wire insertion holes), including 4 power rails. Solderless breadboards are useful for building and testing new circuits because parts can be easily inserted and removed. They are completely re-usable.

The housing is made of ABS plastic, with a printed legend giving numbers and letters for columns and rows. The internal contacts are phosphor bronze with a plated nickel finish. A peelable adhesive tape backing is provided for attaching it to a surface and an optional metal back plate is provided.

BPS BreadBoards are Lead-Free and RoHS Compliant.

Features

• 830 total tie points
• ABS plastic body with black printed legend. Color legend on distribution strips
• Contacts are Phosphor Bronze with Nickel-plated finish, rated for 50,000 insertions
• Rated at 36 Volts, 2 Amps
• Insertion Wire Size: 21 to 26 AWG, 0.016 to 0.028 inches diameter (0.4 to 0.7mm diameter)
• Peelable adhesive tape backing provided for attaching to a surface
• Metal back plate included
