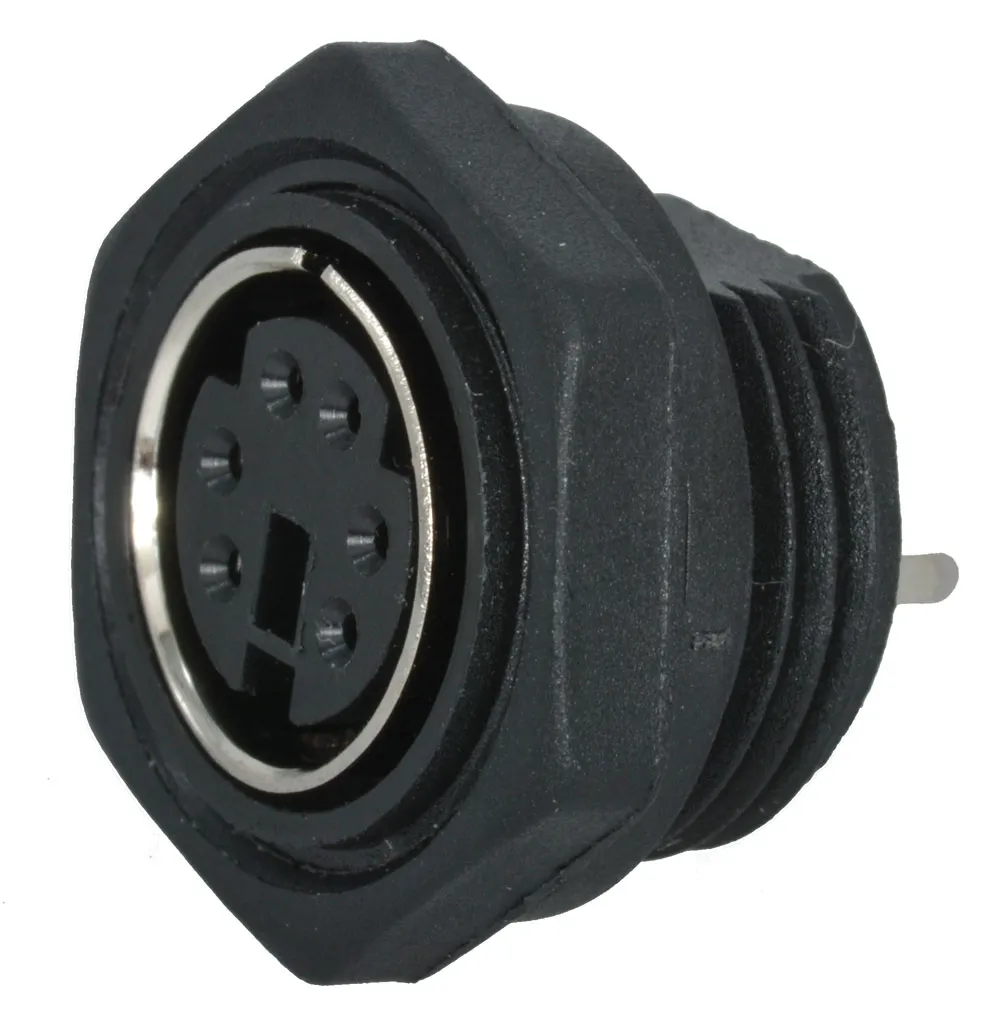

6-Terminal Circular Mini DIN Female Panel Mount

Features

  • Thread Size: M14 x 1.0
  • Width: 0.67" (flat to flat)
  • Thickness: 0.10"
  • Mounting hole ("D" hole): 0.543" diameter (0.487" diameter at "D" flat)
  • Orientation: Straight
  • Contact Material: Copper
  • 0.1" (2.54mm) long pins
  • Use with 6-Pin Male Mini DIN Plug (Recommended: 6-Pin Male Mini DIN Plug, p/n: 142262)

Dimensions & Appearance

Mounting Type:Panel Mount, Through Hole

Features

Contact Finish:Silver
Connector Style:Mini DIN
Number of Contacts:6
Shell Material:Polybutylene Terephthalate (PBT)
Shielding:Unshielded
Connector Type:Socket
Current Rating:1A, 2A
Voltage Rating:100 VAC, 12 VDC
Termination:Solder
,
