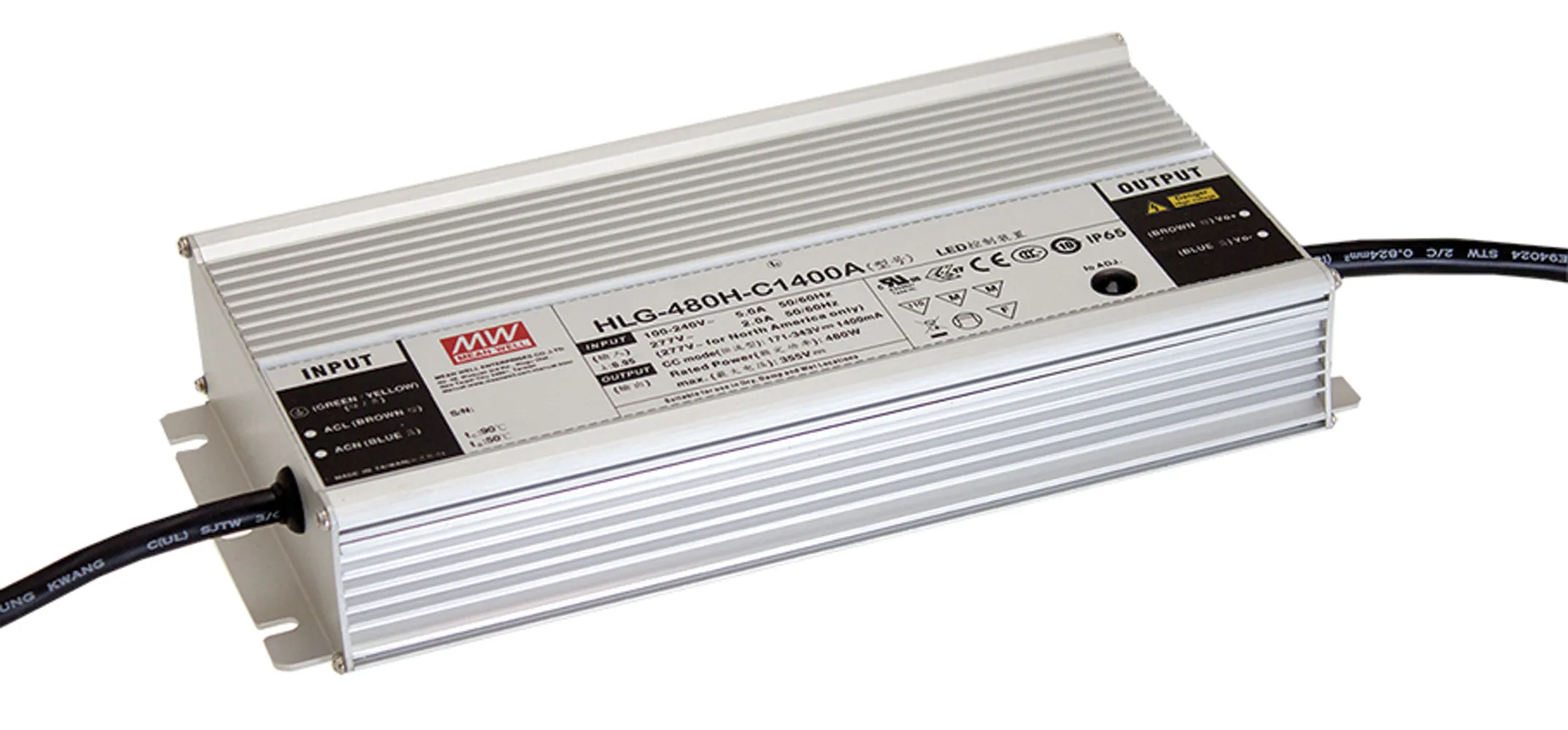

3.5A 68-137V 480W Constant Current Mode Enclosed Switching LED Driver Model D2

3500 milliamps @ 68 to 137 Volts DC

Features

  • Model D2 - Built-in Smart dimming and programmable function, and environment adaptiveness
  • Constant current mode output
  • Metal housing with Class I design
  • Built-in active PFC function
  • Environment-adaptive driving capability
  • IP67 design for indoor or outdoor installations
  • Typical lifetime: >62,000 hours
  • 7 year warranty

Specifications

  • Universal AC input range: 90 to 305 VAC @ 47 to 63 Hz
  • Rated current: 3.5 amps
  • Rated power: 480 watts
  • Constant current region: 68-137 VDC
  • Current adjustment range: 1750 to 3500 mA (via built-in potentiometer)
  • Efficiency: 95%
  • Agency approvals: UL, CUL, CCC, CB, CE

Applications

  • LED harbor lighting
  • LED greenhouse lighting
  • LED stadium lighting
  • LED mining lighting
  • Type "HL" for use in Class I, Division 2 hazardous (Classified) locations

Overview

Product Identification

Manufacturer Series:HLG-480H-C
Product Type:Auto Switching SMPS

Compliance

Agency Approvals:UL, CUL, CB, CE, EN, ENEC, EAC, CCC

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.72 in.
Length:10.31 in.
Width:4.92 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:90°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 305 VAC
Maximum Input Current:5 A

Output

Number of Outputs:1
Output Connector Type:Stripped and Tinned
Output Voltage:See Output Range
Output Range:68 VDC to 137 VDC
Output Current:3.50 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP67
Efficiency:95%
Power Rating:480 W
,
