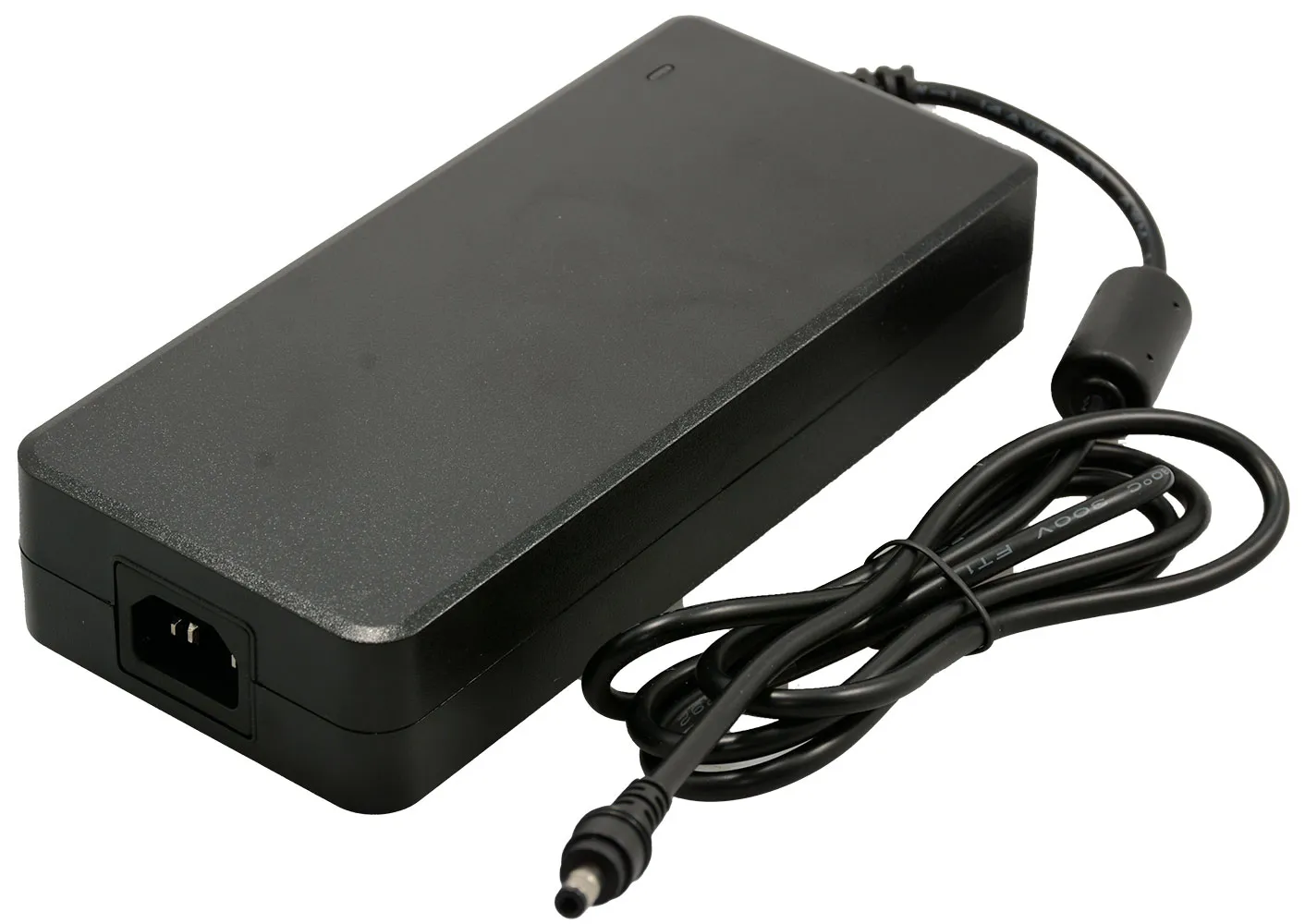

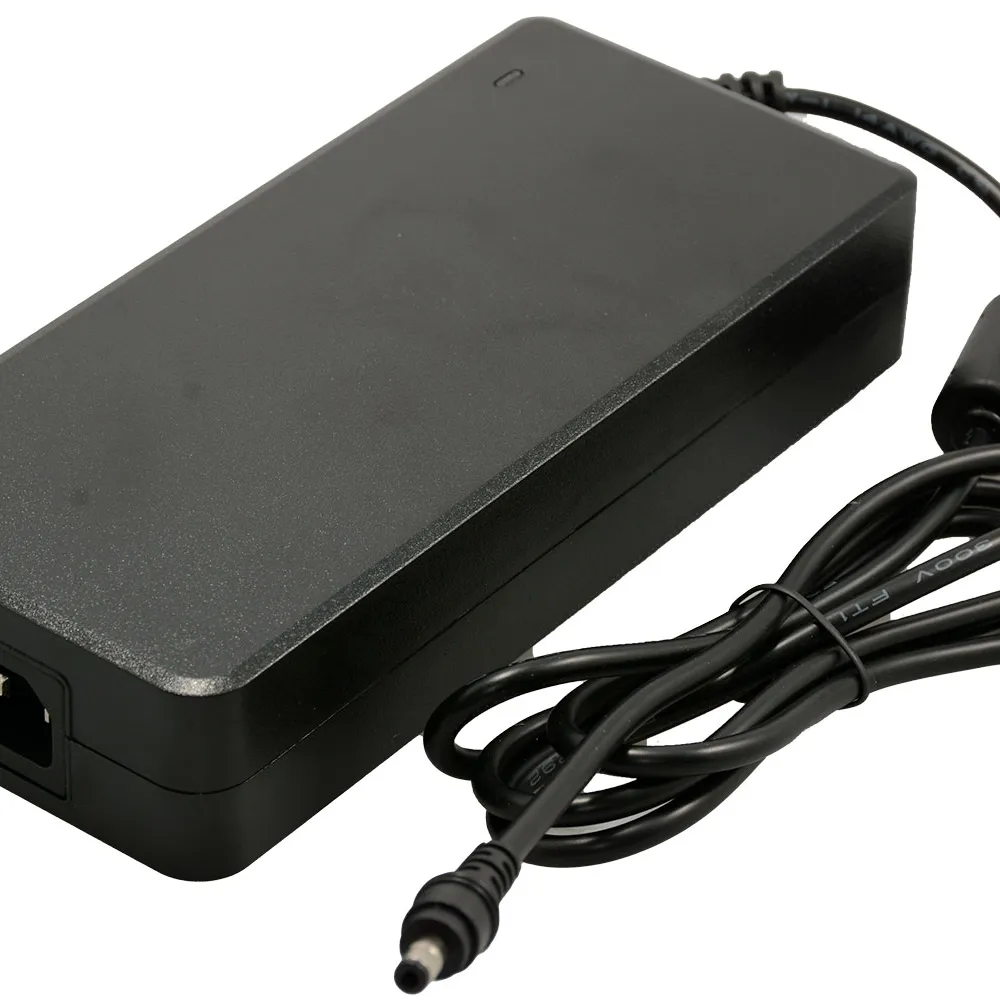

19 Volt 9.47 Amp 180 Watt Regulated Switching Table Top Power Supply 2.5mm Plug
Specifications
- Output voltage: 19 VDC
- Output current: 9.47 A
- Output power: 180 W
- Output connector: 2.5mm x 5.5mm female barrel plug, center positive
- Input voltage: 90 VAC to 264 VAC @ 47-63 Hz, 3.5A
- LED indicator: Yes
- Size: 7.77"L x 3.5"W x 1.54"H
- Case color: Black
- DC Output cord length: 4.875 ft. (1.5m)
- AC input cord length: Not included. (We recommend P/N: 2271575 or, Shop all 3-conductor C13 AC power cords)
- Weight: 1.5 lbs.

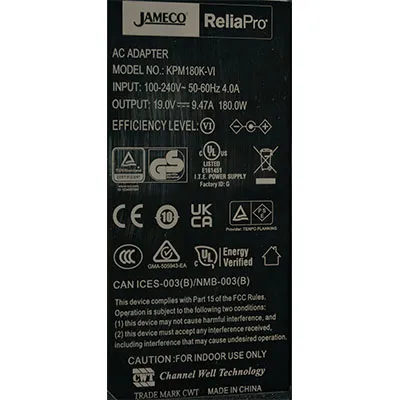

- Agency approvals: UL (E161451), cUL, TUV, CE, UKCA, CCC, C-Tick
Product Identification
Type:Auto Switching SMPS
Manufacturer Series:ReliaPro
Compliance
Agency Approvals: CCC, CE, C-TICK, CUL, EN, TUV, UKCA, VCCI, UL
Dimensions & Appearance
Style:Desktop
Color:Black
Height:1.54 in.
Width:3.50 in.
Length:7.77 in.
Operating conditions
Minimum Operating Temperature:-10°C
Maximum Operating Temperature:40°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:3.5 A
Output
Number of Outputs:1
Output Connector Diameters:2.5mm x 5.5mm
Output Voltage (Channel 1):19 VDC
Output Connector Type:Cylindrical Female
Output Voltage:19 VDC
Additional Output Voltages (VDC):N/A
Output Current (Channel 1):9.47 A
Output Current:9.47 A
Features
Minimum Isolation Voltage:1500V
Polarity:Center Positive
Product Note:Level VI
AC Power Cord:NOT INCLUDED, RECOMMEND 2271575
IP Rating:N/A
Efficiency:89%
Power Rating:180 W
