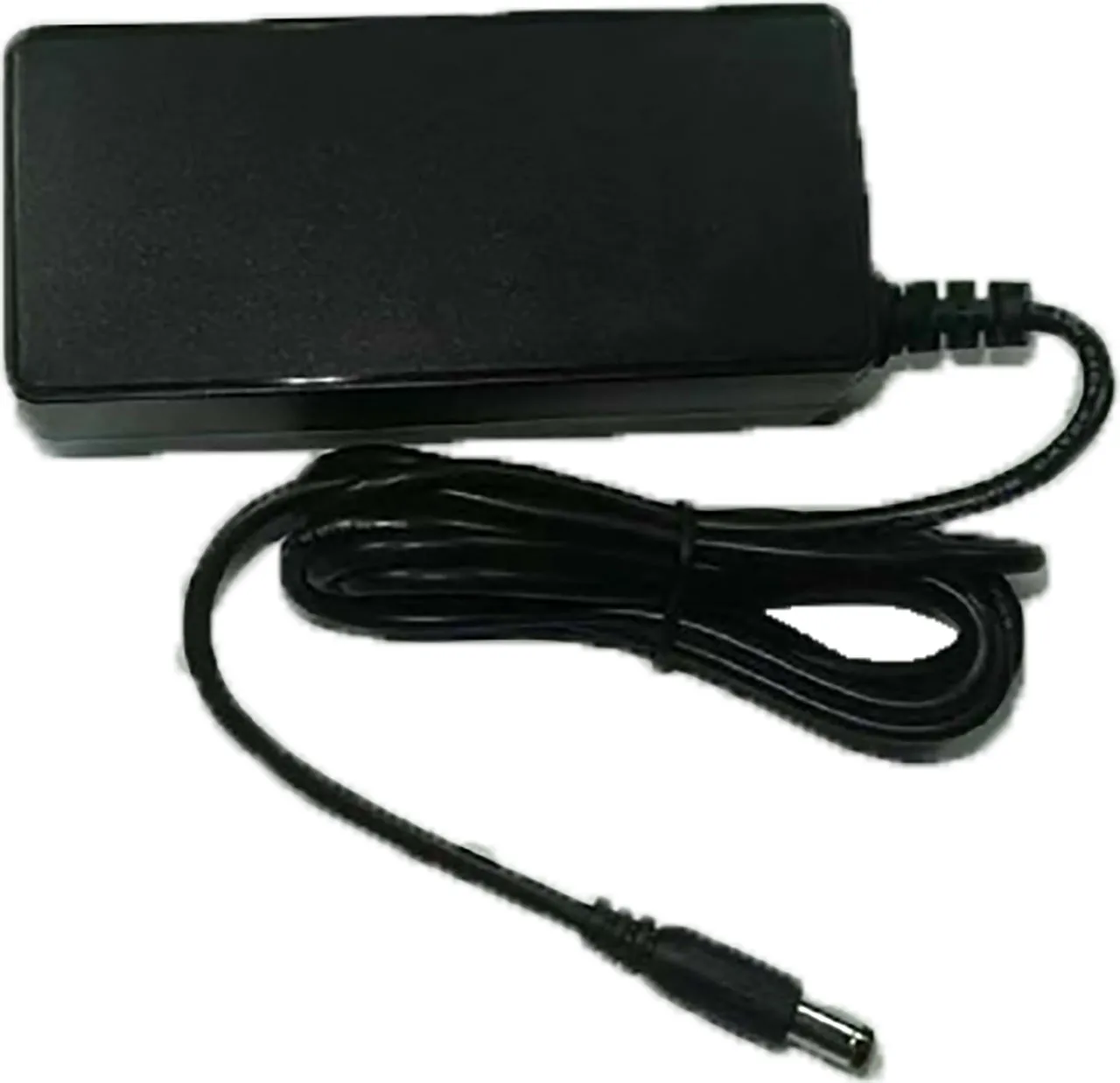

12 VDC 2A Switching Table Top Power Supply C8 Inlet 2.1mm Plug
Features
- Output Rating: 12 VDC @ 2 A
- Input Voltage: 100-240 VAC @ 50/60 Hz
- AC input cord not included, we recommend P/N: 189587
- Plug Size: 2.1mm ID x 5.5mm OD x 11mm Length
- Output cord length: 4 feet
- Agency Approval: UL, FCC, CE, UKCA
- CEC Level VI
Overview
Output Connector Type: Cylindrical female barrel 2.1mm inside diameter / 5.5mm outside diameter straight plug.
Product Identification
Type:Auto Switching SMPS
Manufacturer Series:ReliaPro
Compliance
Agency Approvals: CE, FCC, UKCA, UL
Dimensions & Appearance
Style:Desktop
Color:Black
Height:1.18 in.
Width:1.79 in.
Length:3.60 in.
Operating conditions
Minimum Operating Temperature:0°C
Maximum Operating Temperature:40°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:100 VAC to 240 VAC
Maximum Input Current:0.8 A
Output
Number of Outputs:1
Output Connector Diameters:2.1mm x 5.5mm
Output Voltage (Channel 1):12 VDC
Output Voltage:12 VDC
Output Connector Type:Cylindrical Female
Output Current (Channel 1):2 A
Additional Output Voltages (VDC):N/A
Output Current:2 A
Features
Polarity:Center Positive
Minimum Isolation Voltage:3000V
Product Note:Level VI
AC Power Cord:NOT INCLUDED, RECOMMEND 189587
Efficiency:86%
Power Rating:24 W
