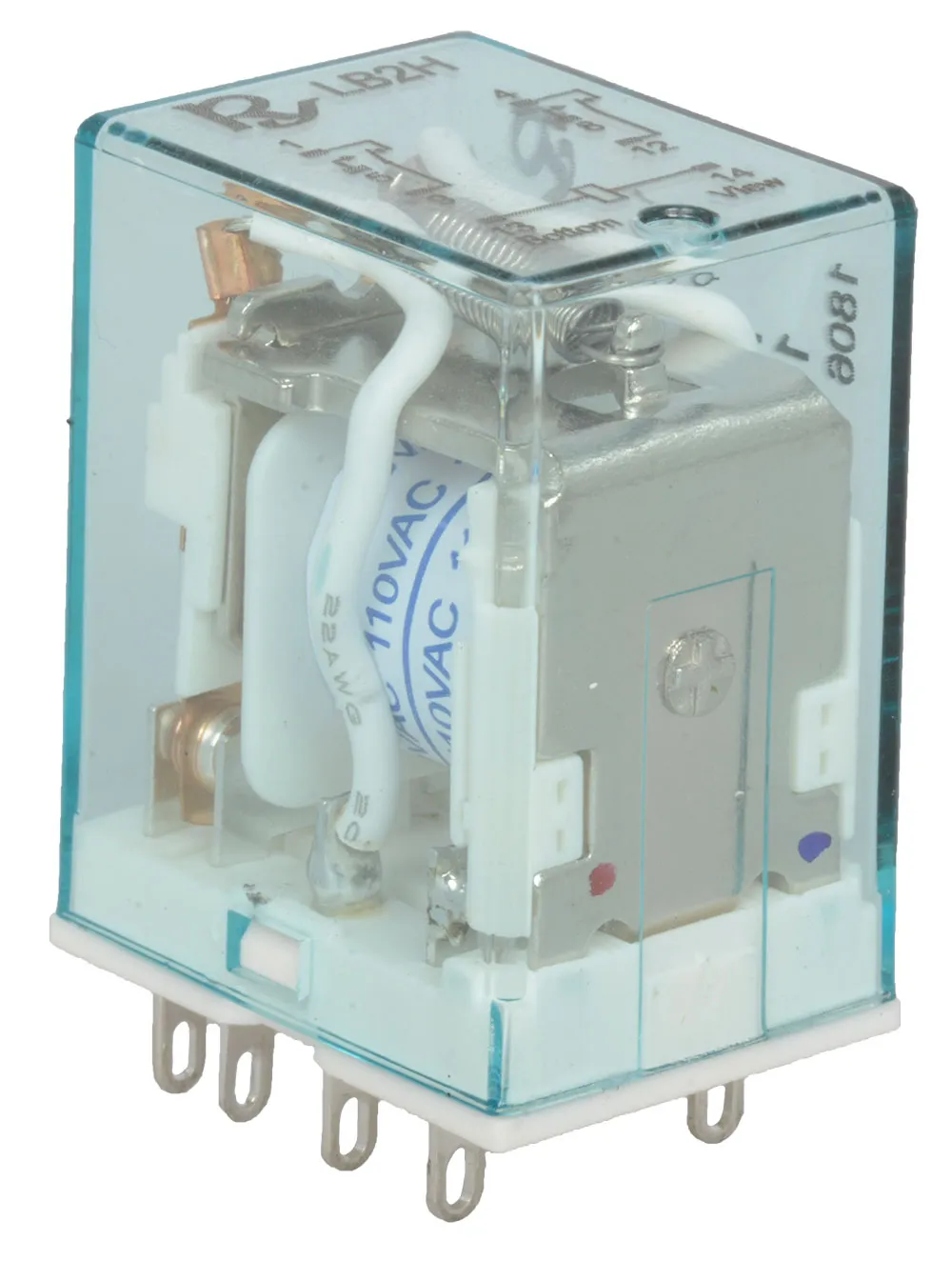

110 Volt AC DPDT High Performance Power Relay 240VAC/30VDC 10A Contact

Features

  • High performance power relay
  • Solder lug/plug-in terminals 2.5mm

Specifications

  • Contact Type: 2PDT, 12A
  • Coil Voltage: 100/110 VAC (50/60Hz)
  • Coil (Ohms): 3,900
  • Contact Current: 10 A
  • Contact Voltage: AC 240V / DC 30V
  • Number of Pins: 8 (2.5mm solder lug terminals)
  • Mechanical Life: 1,000,000 operations min.
  • Electrical Life: 100,000 operations min.
  • Dielectric Strength: 750 V (between contact)

Applications

  • Control equipment, vending machines, cooking appliances, office machines, domestic appliances, etc.

Compliance

RoHS Status:ROHS Compliant

Features

Coil Current:10 A
Coil Voltage:110 VAC
Contact Form:DPDT
Coil Resistance:3900 Ohm
Contact Rating:10A@240VAC, 10A@30VDC

Related products

Mating Socket (Standard):P/N: 175531
Mating Socket (DIN Rail):P/N: 282191
,
