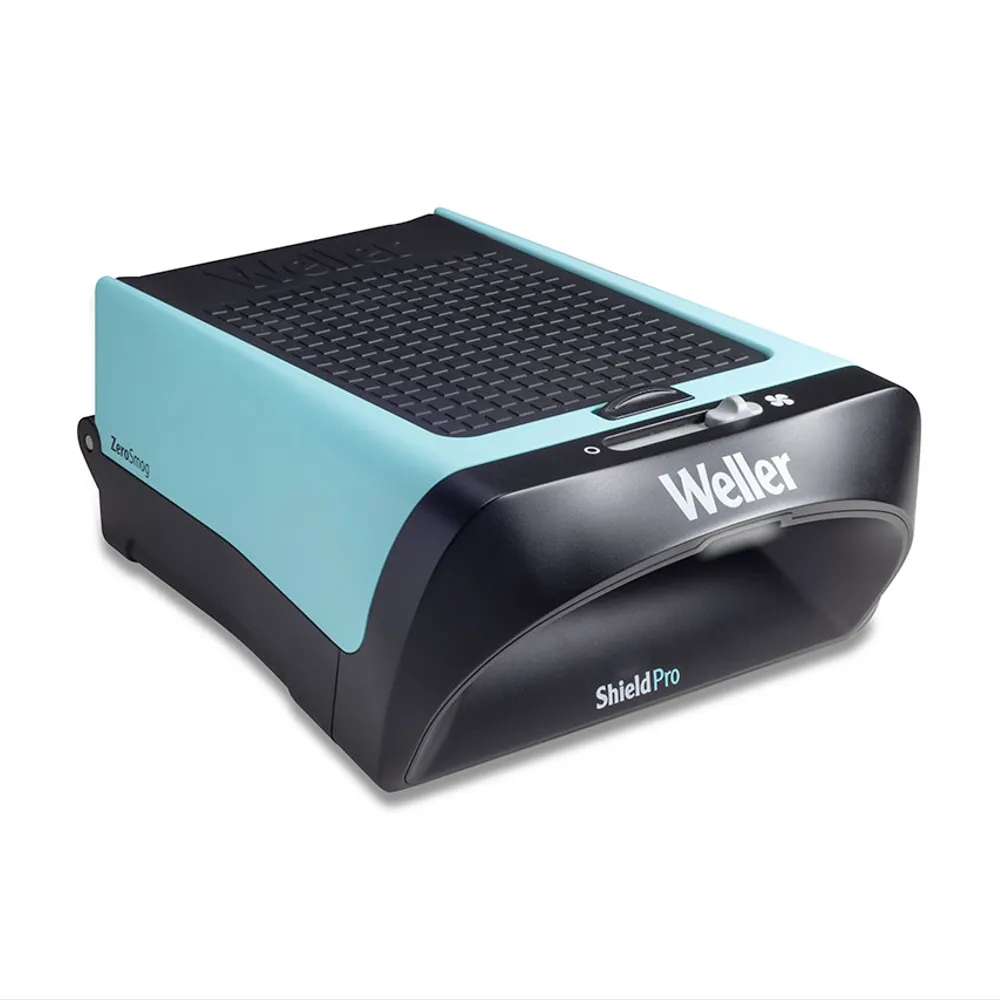

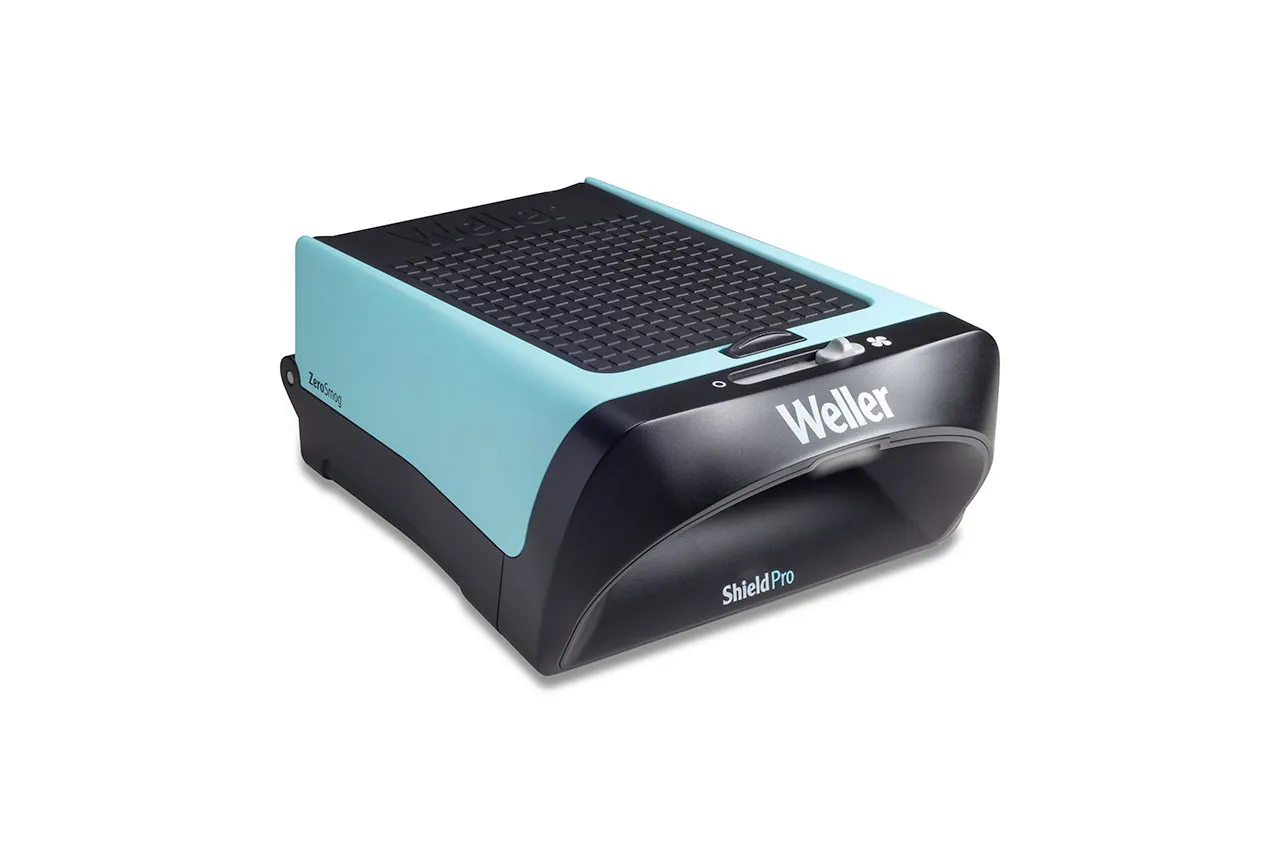

Zero Smog Shield Pro

Features

• Efficient particle and gas filtration, odor removal for single workbench
• Powerful blower with adjustable extraction power
• Stackable with soldering stations of all brands (max. footprint 13 cm x 18 cm)
• Connectable to various Weller soldering stations
• Easy to move around
• Easy filter change
• Filter status indication (green/red light)
• Illuminated work area
• Low noise level of 50dB (59dB at full speed)
• Antistatic housing (ESD safe)
• Dimensions L x W x H: 270 x 212 x 110 mm 10.6 x 8.3 x 4.3 In
• Capacity (m³/h): 32
• ESD Safe: Yes
• Maximum Vacuum: 490 Pa
• Maximum Volume: 59 dB(A)
• Power: 20 W
• Voltage: 100- 240 V, 50/60 Hz

Overview

It's a new era in electronics manufacturing where having clean air is essential not simply a bonus. It is the main factor influencing higher output, happier employees, and improved financial results. Modern solder fume extraction technology like the ZeroSmog Shield Pro system is made to completely transform each workstation. With the Weller ZeroSmog Shield Pro, a real filtering device that keeps your work environment fresh and clean, you can breathe pure air at your workbench as you work on your next soldering operation. Its small size allows it to be stacked with soldering stations to make the most of your workplace. You can concentrate on your soldering and breathe easy with the ZeroSmog Shield Pro.
