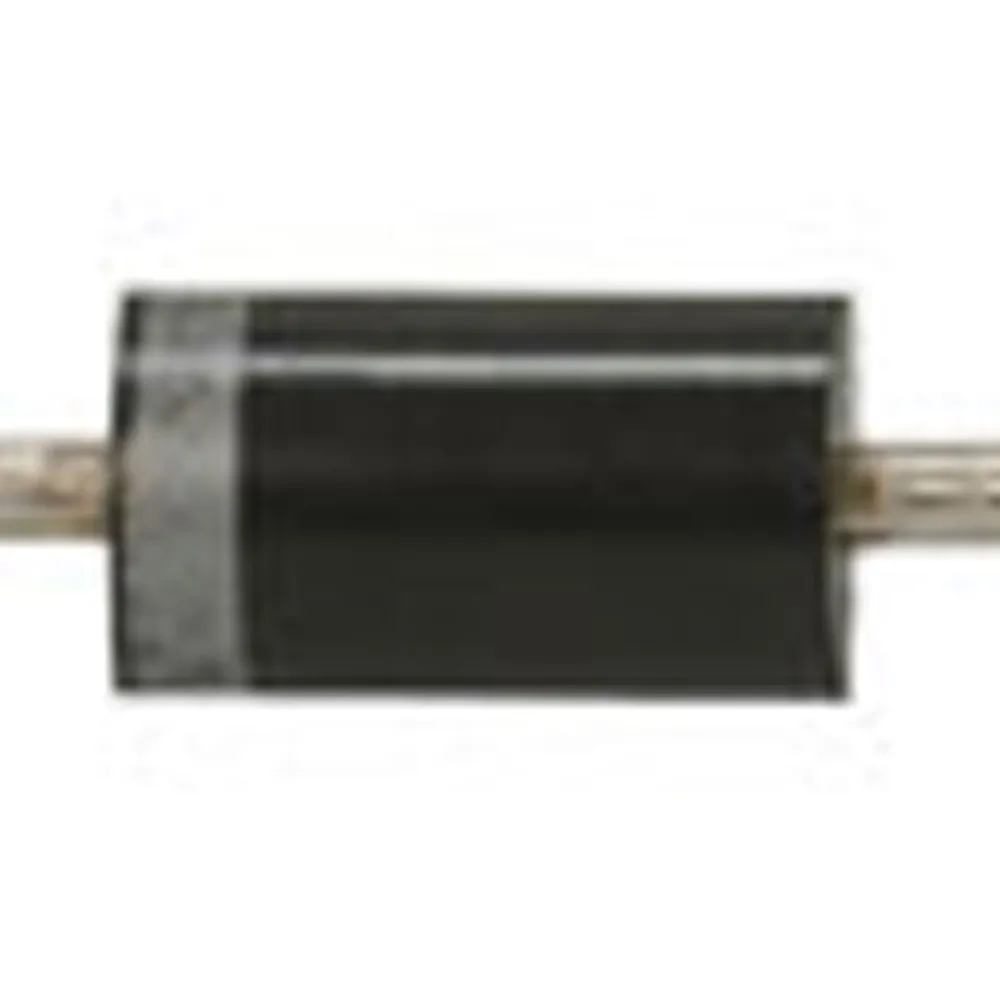

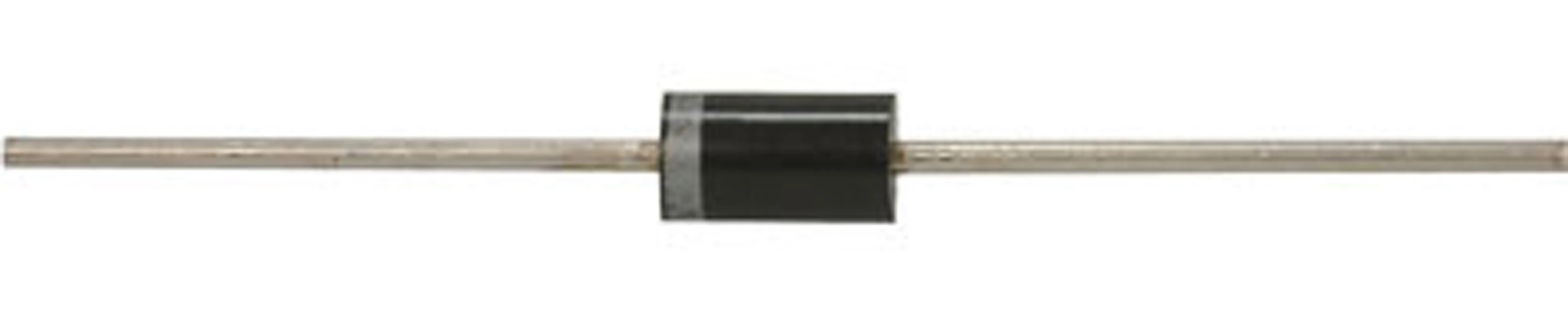

Diode Zener Single 5.1V 5% 1W 2-Pin DO-41 Tape and Reel

Specifications

  • For use in stabilizing and clipping circuits with high power rating
  • Standard Zener voltage tolerance suffix "A" for ±5% tolerance.

    • Product Identification

    Family:1N4733A
    Product Type:Zener Diode

    Dimensions & Appearance

    Mounting:Through Hole
    Width:2.72 mm
    Height:2.72 mm
    Length:5.21 mm

    Operating conditions

    Maximum Operating Temperature:175°C
    Minimum Operating Temperature:-65°C

    Packaging

    Packaging:Tape and Reel
    Package:DO-41

    Features

    Impedance:7 Ohm
    Nominal Zener Voltage:5.1
    Tolerance:5%
    Power Dissipation:1W
    Maximum Reverse Leakage Current:10uA
    Test Current:49 mA
    Configuration:Single
    ,
