Working with 7 Segment LEDs (without Arduino)

If you don't already have an Arduino Uno to use with the kit, we also offer the 7 Segment Kit with an Arduino Uno, see P/N: 2244906. Click here to check out the tutorial.

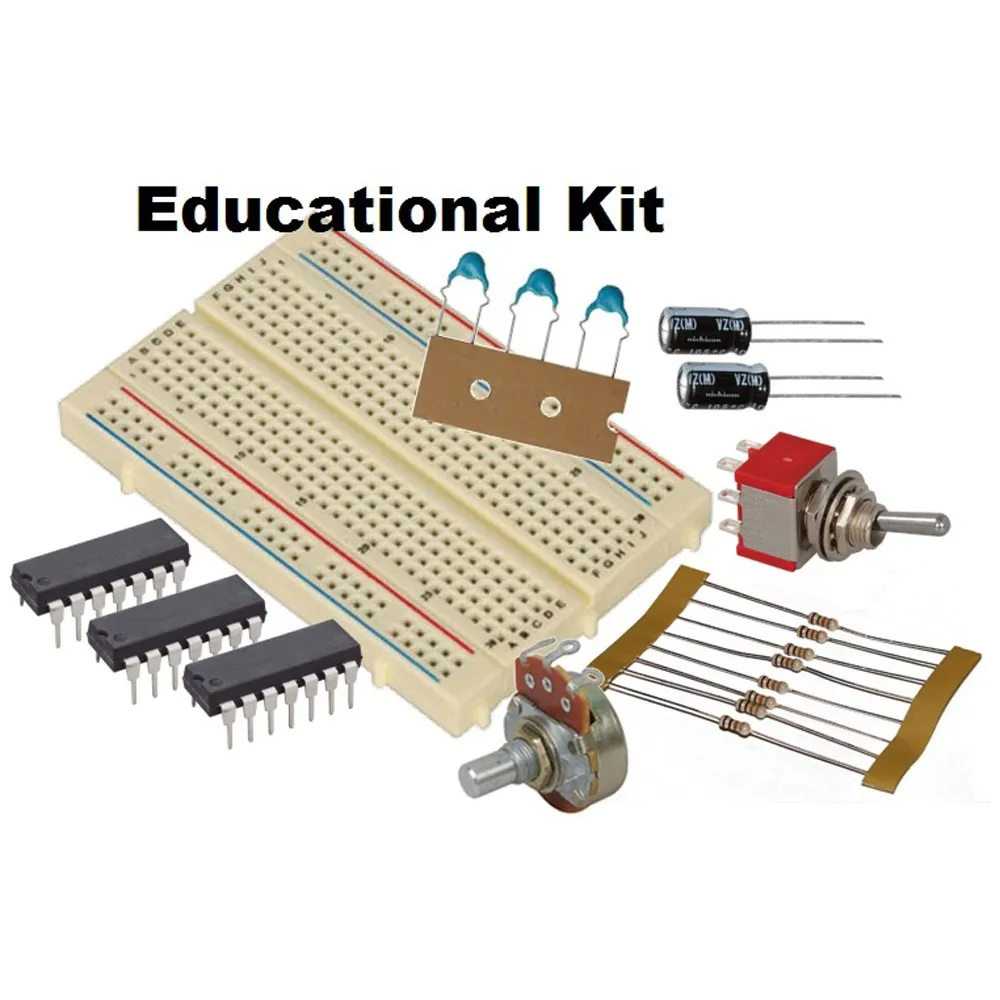

Kit Includes:

Part No.
Qty.
Description
17187
2
Display 7-Segment Common Cathode Red 1 Digit 697NM Right Hand Decimal Point
690700
20
Carbon Film Resistor 220 Ohm 1/4 Watt 5%
691104
10
Resistor Carbon Film 10k Ohm 1/4 Watt 5%
178597
10
Transistor General Purpose BJT NPN 40 Volt 0.2 Amp 3-Pin TO-92
2207056
1
9V Battery Snap with 2.1mm Barrel Plug
198731
1
9V Energizer® Alkaline Battery
20723
1
830-Point Solderless Breadboard 6.5" x 2.125"
2127718
1
70-Piece Jumper Wire Kit - 22AWG 14 Lengths 10 Colors
13493
1
BCD to 7 Segment Latch decoder Driver DIP 16

Features

Design Level:Beginner Kit
Piece Count:47
,
