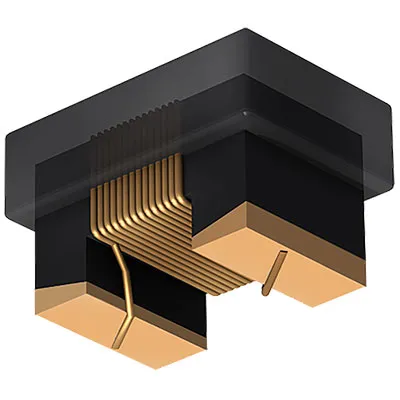

Wire-wound Ferrite RF Chip Inductor 560nH 10% 0.55A Taped/Reel 4000 QTY
Features
- Inductance Value: 560nH
- Tolerance: 10%
- Q min: 12
- DCR max: 0.44
- Rated DC Current: 0.55A
- Packaging: Taped/Reel
- Lifecycle-status: Active
- REACH: Compliant
- RoHS: Compliant
- AEC-Q200-standard: Approved
- Pack Quantity: 4000
Overview
Wire-wound Ferrite RF Chip Inductor 560nH 10% 0.55A Taped/Reel 4000 QTY
Product Identification
Family:0603F
Product Type:Wire-wound Ferrite RF Chip Inductor
Dimensions & Appearance
Depth:1.10 mm
Height:1 mm
Length:1.70 mm
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C
Packaging
Package:0603
Packaging:Taped/Reel
Features
Core Material:Ferrite
Test Frequency:7.9 MHz
Tolerance:10%
Technology:Wirewound
Minimum Quality Factor:12
Protection Style:Unshielded
Current Rating:0.55 A
Maximum DC Resistance:0.44 Ohm
Maximum Self Resonant Frequency:525 MHz
Inductance:560 nH
