Wire-wound Ferrite RF Chip Inductor 270nH 10% 0.38A Taped/Reel 5000 QTY
Features
- Inductance Value: 270nH
- Tolerance: 10%
- Z typ: 1400
- DCR max: 0.550
- Rated DC Current: 0.38A
- Packaging: Taped/Reel
- Lifecycle-status: Active
- REACH: Compliant
- RoHS: Compliant
- AEC-Q200-standard: Approved
- Pack Quantity: 5000
Overview
Wire-wound Ferrite RF Chip Inductor 270nH 10% 0.38A Taped/Reel 5000 QTY
Product Identification
Family:0402F

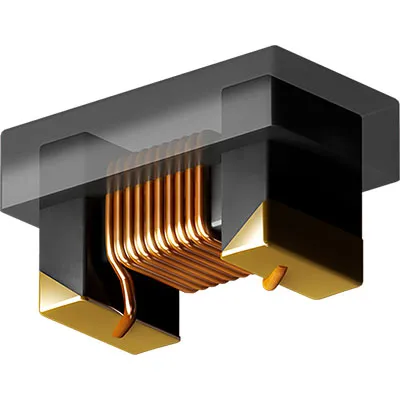

Product Type:Wire-wound Ferrite RF Chip Inductor
Dimensions & Appearance
Depth:0.65 mm
Height:0.7 mm
Length:1.20 mm
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C
Packaging
Package:0402
Packaging:Taped/Reel
Features
Core Material:Ferrite
Test Frequency:7.9 MHz
Tolerance:10%
Technology:Wirewound
Protection Style:Unshielded
Impedance:1400 Ohm
Current Rating:0.38 A
Maximum DC Resistance:0.550 Ohm
Maximum Self Resonant Frequency:880 MHz
Inductance:270 nH
