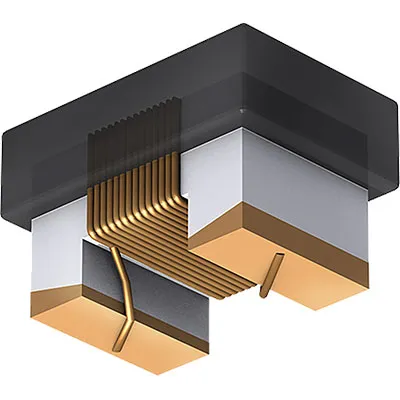

Wire-wound Ceramic RF Chip Inductor 5.8nH 10% 600mA Taped/Reel 2500 QTY
Features
- Inductance Value: 5.8nH
- Tolerance: 10%
- Q min: 50
- DCR max: 0.11
- Rated DC Current: 600mA
- Packaging: Taped/Reel
- Lifecycle-status: Active
- REACH: Compliant
- RoHS: Compliant
- AEC-Q200-standard: Approved
- Pack Quantity: 2500
Overview
Wire-wound Ceramic RF Chip Inductor 5.8nH 10% 600mA Taped/Reel 2500 QTY
Product Identification
Product Type:Wire-wound Ceramic RF Chip Inductor
Family:0805AS
Dimensions & Appearance
Depth:1.80 mm
Height:1.60 mm
Length:2.30 mm
Operating conditions
Maximum Operating Temperature:150°C
Minimum Operating Temperature:-40°C
Packaging
Package:0805
Packaging:Taped/Reel
Features
Core Material:Ceramic
Tolerance:10%
Test Frequency:250 MHz
Technology:Wirewound
Protection Style:Unshielded
Minimum Quality Factor:50
Maximum DC Resistance:0.11 Ohm
Inductance:5.8 nH
Maximum Self Resonant Frequency:5500 MHz
Current Rating:600 mA
