Wire-wound Ceramic RF Chip Inductor 36nH 5% 0.60A Taped/Reel 5000 QTY
Features
- Inductance Value: 36nH
- Tolerance: 5%
- Q min: 25
- DCR max: 0.455 Ohm
- DC Current max: 0.60A
- Packaging: Taped/Reel
- Lifecycle-status: Active
- REACH: Compliant
- RoHS: Compliant
- Pack Quantity: 5000
Overview
Wire-wound Ceramic RF Chip Inductor 36nH 5% 0.60A Taped/Reel 5000 QTY
Product Identification
Family:0402AQC

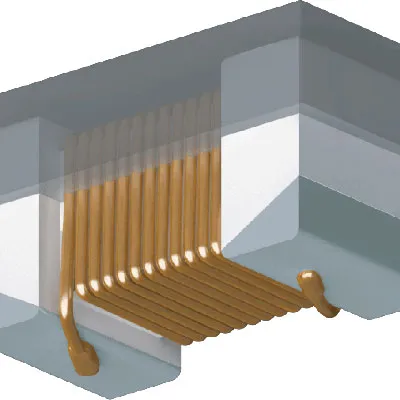

Product Type:Wire-wound Ceramic RF Chip Inductor
Dimensions & Appearance
Depth:0.65 mm
Height:0.65 mm
Length:1.20 mm
Operating conditions
Maximum Operating Temperature:150°C
Minimum Operating Temperature:-40°C
Packaging
Package:0402
Packaging:Taped/Reel
Features
Core Material:Ceramic
Tolerance:5%
Test Frequency:100 MHz
Technology:Wirewound
Protection Style:Unshielded
Minimum Quality Factor:25
Maximum Self Resonant Frequency:3.5 GHz
Current Rating:0.60 A
Maximum DC Resistance:0.455 Ohm
Inductance:36 nH
