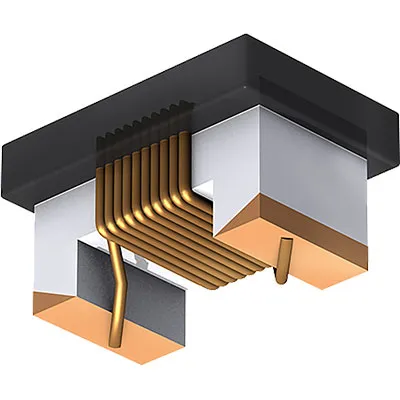

Wire-wound Ceramic RF Chip Inductor 3.3nH 10% 700mA Taped/Reel 4000 QTY
Features
- Inductance Value: 3.3nH
- Tolerance: 10%
- Q min: 22
- DCR max: 0.10
- Rated DC Current: 700mA
- Packaging: Taped/Reel
- Lifecycle-status: Active
- REACH: Compliant
- RoHS: Compliant
- AEC-Q200-standard: Approved
- Pack Quantity: 4000
Overview
Wire-wound Ceramic RF Chip Inductor 3.3nH 10% 700mA Taped/Reel 4000 QTY
Product Identification
Product Type:Wire-wound Ceramic RF Chip Inductor
Family:0603AS
Dimensions & Appearance
Depth:1.10 mm
Height:1 mm
Length:1.70 mm
Operating conditions
Maximum Operating Temperature:150°C
Minimum Operating Temperature:-40°C
Packaging
Package:0603
Packaging:Taped/Reel
Features
Core Material:Ceramic
Tolerance:10%
Test Frequency:250 MHz
Technology:Wirewound
Protection Style:Unshielded
Minimum Quality Factor:22
Maximum DC Resistance:0.10 Ohm
Inductance:3.3 nH
Maximum Self Resonant Frequency:6000 MHz
Current Rating:700 mA
