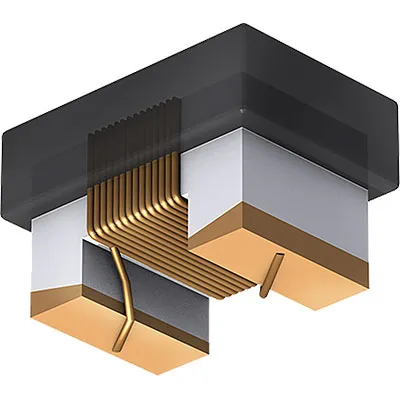

Wire-wound Ceramic RF Chip Inductor 22nH 5% 500mA Taped/Reel 2500 QTY

Features

  • Inductance Value: 22nH
  • Tolerance: 5%
  • Q min: 57
  • DCR max: 0.22
  • Rated DC Current: 500mA
  • Packaging: Taped/Reel
  • Lifecycle-status: Active
  • REACH: Compliant
  • RoHS: Compliant
  • AEC-Q200-standard: Approved
  • Pack Quantity: 2500

Overview

Wire-wound Ceramic RF Chip Inductor 22nH 5% 500mA Taped/Reel 2500 QTY

Product Identification

Product Type:Wire-wound Ceramic RF Chip Inductor
Family:0805AS

Dimensions & Appearance

Depth:1.80 mm
Height:1.60 mm
Length:2.30 mm

Operating conditions

Maximum Operating Temperature:150°C
Minimum Operating Temperature:-40°C

Packaging

Package:0805
Packaging:Taped/Reel

Features

Core Material:Ceramic
Tolerance:5%
Test Frequency:250 MHz
Technology:Wirewound
Protection Style:Unshielded
Minimum Quality Factor:57
Maximum DC Resistance:0.22 Ohm
Inductance:22 nH
Maximum Self Resonant Frequency:2600 MHz
Current Rating:500 mA
,
