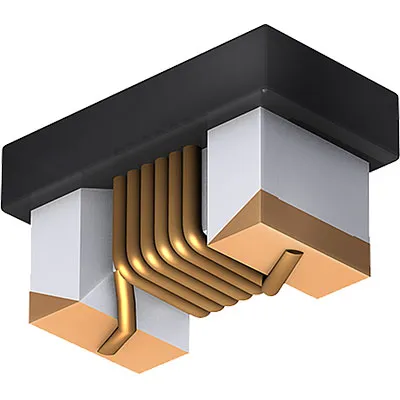

Wire-wound Ceramic RF Chip Inductor 10nH 5% 480mA Taped/Reel 5000 QTY
Features
- Inductance Value: 10nH
- Tolerance: 5%
- Q min: 21
- DCR max: 0.200
- DC Current max: 480mA
- Packaging: Taped/Reel
- Lifecycle-status: Active
- REACH: Compliant
- RoHS: Compliant
- AEC-Q200-standard: Approved
- Pack Quantity: 5000
Overview
Wire-wound Ceramic RF Chip Inductor 10nH 5% 480mA Taped/Reel 5000 QTY
Product Identification
Product Type:Wire-wound Ceramic RF Chip Inductor
Family:0402AS
Dimensions & Appearance
Depth:0.65 mm
Height:0.7 mm
Length:1.20 mm
Operating conditions
Maximum Operating Temperature:150°C
Minimum Operating Temperature:-40°C
Packaging
Package:0402
Packaging:Taped/Reel
Features
Core Material:Ceramic
Tolerance:5%
Test Frequency:250 MHz
Technology:Wirewound
Protection Style:Unshielded
Minimum Quality Factor:21
Maximum DC Resistance:0.200 Ohm
Inductance:10 nH
Maximum Self Resonant Frequency:3900 MHz
Current Rating:480 mA
