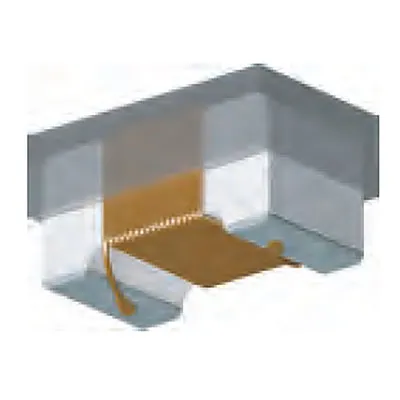

Wire-wound Ceramic Chip Inductor 3.9uH 10% 3.50A Taped/Reel 4000 QTY

Features

  • Inductance Value: 3.9uH
  • Tolerance: 10%
  • Q min: 50
  • DCR max: 0.02Ohm DCR
  • Maximum DC Current: 3.50A
  • Packaging: Taped/Reel
  • Package: 0603
  • Pack Quantity: 4000

Overview

Wire-wound Ceramic Chip Inductor 3.9uH 10% 3.50A Taped/Reel 4000 QTY

Product Identification

Family:0603AQC
Product Type:Wire-wound Ceramic Chip Inductor

Dimensions & Appearance

Depth:1.12 mm
Height:1.05 mm
Length:1.70 mm

Operating conditions

Maximum Operating Temperature:140°C
Minimum Operating Temperature:-40°C

Packaging

Package:0603
Packaging:Taped/Reel

Features

Core Material:Ceramic
Tolerance:10%
Test Frequency:100 MHz
Technology:Wirewound
Protection Style:Unshielded
Minimum Quality Factor:50
Maximum Self Resonant Frequency:10 GHz
Inductance:3.9 uH
Current Rating:3.50 A
Maximum DC Resistance:25 mOhm
,
