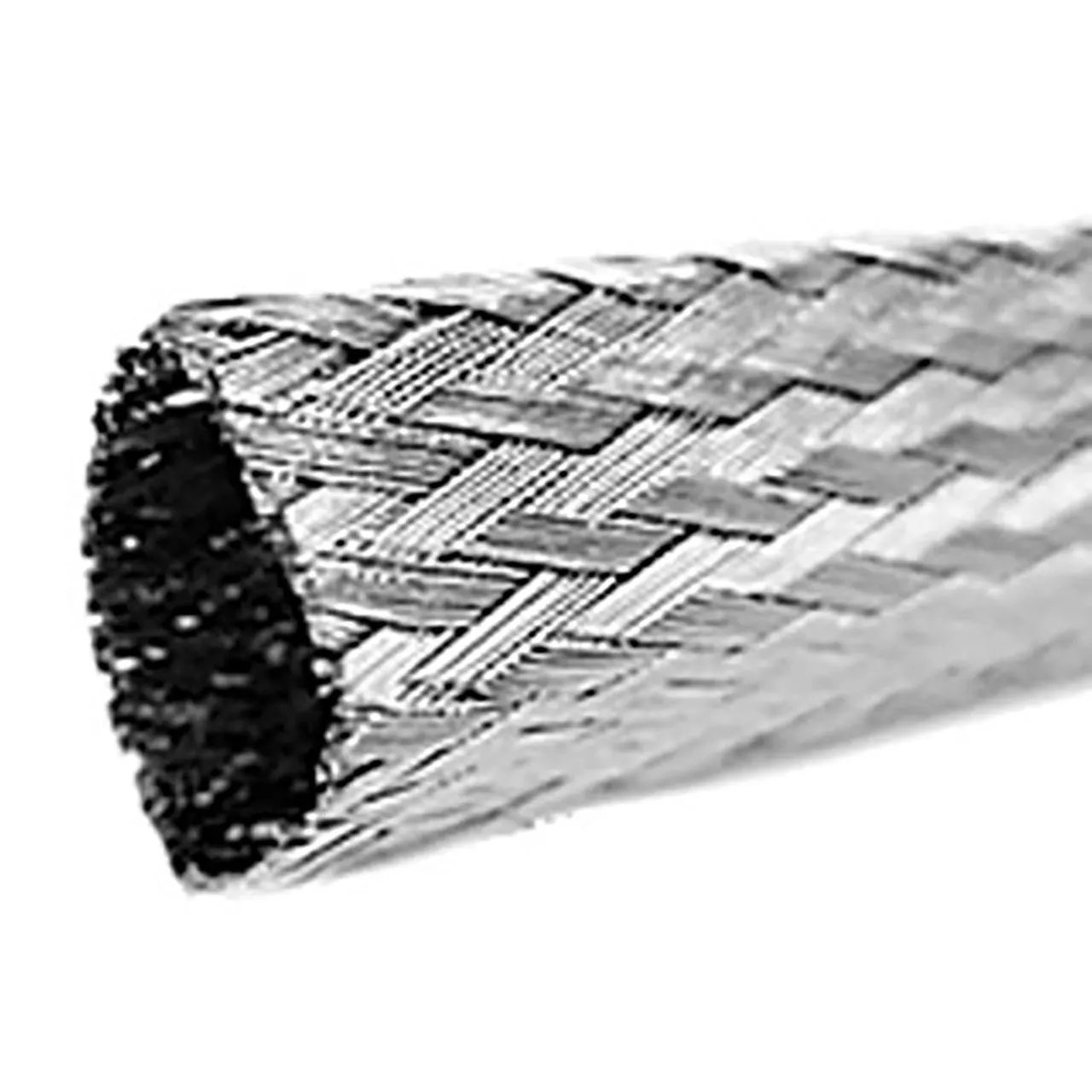

1/4" Tubular Tinned Copper Wire Braid 100 Feet Reel

Features

  • Consolidated Electronic Wire & Cable PN: 1319-100
  • Nominal Inner Diameter: 1/4 in.
  • Conductor Size: 36 Tinned Copper Wire AWG
  • Number of Ends: 384
  • Number of Carriers: 24
  • Total Strands: 384 x 36
  • Approx. Conductor Size: 10 AWG
  • CMA: 9600
  • Ampacity: 53 A
  • Approvals: ASTM B-33, QQ-W-343 Type S, RoHS

Overview

A tight weave of multi-strand, soft drawn tinned copper wire is an ideal shielding material for shielding around cables, ground straps, protective braid over hoses and tubing, or any other applications requiring woven tinned copper braid. In retrofit applications, it provides additional shielding efficiency. Woven tinned copper braid manufactured in tubular configuration provides 90% coverage.

  • Also available in 50' spools.

    Applications

    • Shielding
    • Flexible Ground Straps
    • Cable/Harness Assembly

    Related Products

    Braided Wire

    • Dimensions & Appearance

    Style:Tubular
    Color:Silver
    Length:100 ft.

    Features

    Wire Gauge (AWG):10
    Conductor Strand:48 x 8 x 36
    Inner Diameter:0.250 in.
    Outer Diameter:0.280 in.
    Current Rating:53 A
    ,
