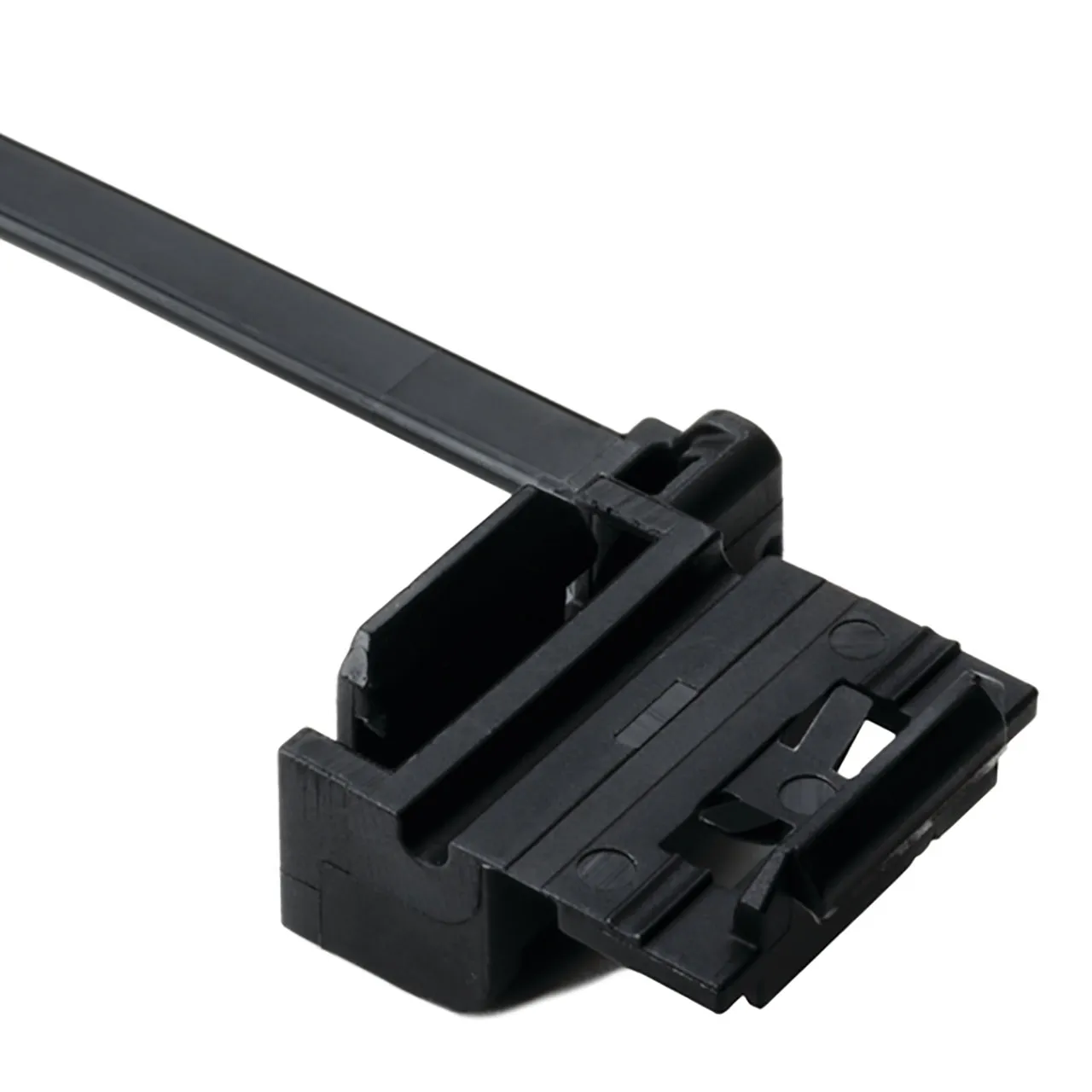

Wire Clamping Cable Ties, Version B, Diameter Attachment .13", 6.0" Long, Black, PA66HS, 500 per Package

Features

• Clamp provides low insertion and high extraction force. Various sizes available to accommodate all different sizes of bundles. Clamp can be installed both before and after installation of bundles.
• Product Type: Cable Ties - Special Function

Technical Specifications

• Material: Polyamide 6.6 heat stabilized (PA66HS)
• Operating Temperature: -40°F to +221°F (-40°C to +105°C)
• Color: Black (BK)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Attaches to Diameter (Imperial): 0.13"
• Attaches to Diameter (Metric): 3.4 mm
• Bundle Diameter Max. (Imperial): 1.38"
• Bundle Diameter Max. (Metric): 35.0 mm
• Bundle Diameter Min. (Imperial): 0.06"
• Bundle Diameter Min. (Metric): 1.6 mm
• Cable Tie Closure: plastic pawl
• Diameter D (Imperial): 0.13"
• Focused Markets and Industries: Automotive Industry
• Length L (Imperial): 6.0"
• Length L (Metric): 150.0 mm
• Nominal Diameter (Imperial): 0.13"
• Nominal Diameter (Metric): 3.4 mm
• Recommended Application Tool: 110-05005; 110-70083; 110-70084; 110-80000; 110-80001
• Releasable Closure: No
• Tensile Strength Min. (Imperial): 50 lbs
• Tensile Strength Min. (kgf): 22.94 kgf
• Tensile Strength Min. (Metric): 225 N
• Thickness T (Imperial): 0.05"
• Thickness T (Metric): 1.3
• Toothing (Serration): Outside Serrated
• Trade Size: 1/8"
• Weight (Lbs) per 1 Content Unit without Packaging: 0.00471568778418
• Width W (Imperial): 0.18"
• Width W (Metric): 4.6 mm
• Wire Size Range (imperial): 0.133 - 0.137"
• Wire Size Range (metric): 3.37 - 3.49 mm
• CE Certified: No
• CSA Certified: No
• Hazardous Goods: No
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306350798

Overview

Wire Clamping Cable Ties secure easily to wire frames for a tight fit and are available in four different wire frame sizes and two separate orientations to provide both perpendicular and parallel routing. The wire clamp design is ideally suited for easing the application process on the production floor by allowing for an easy snap fit of the harness assembly to the wire frame.
