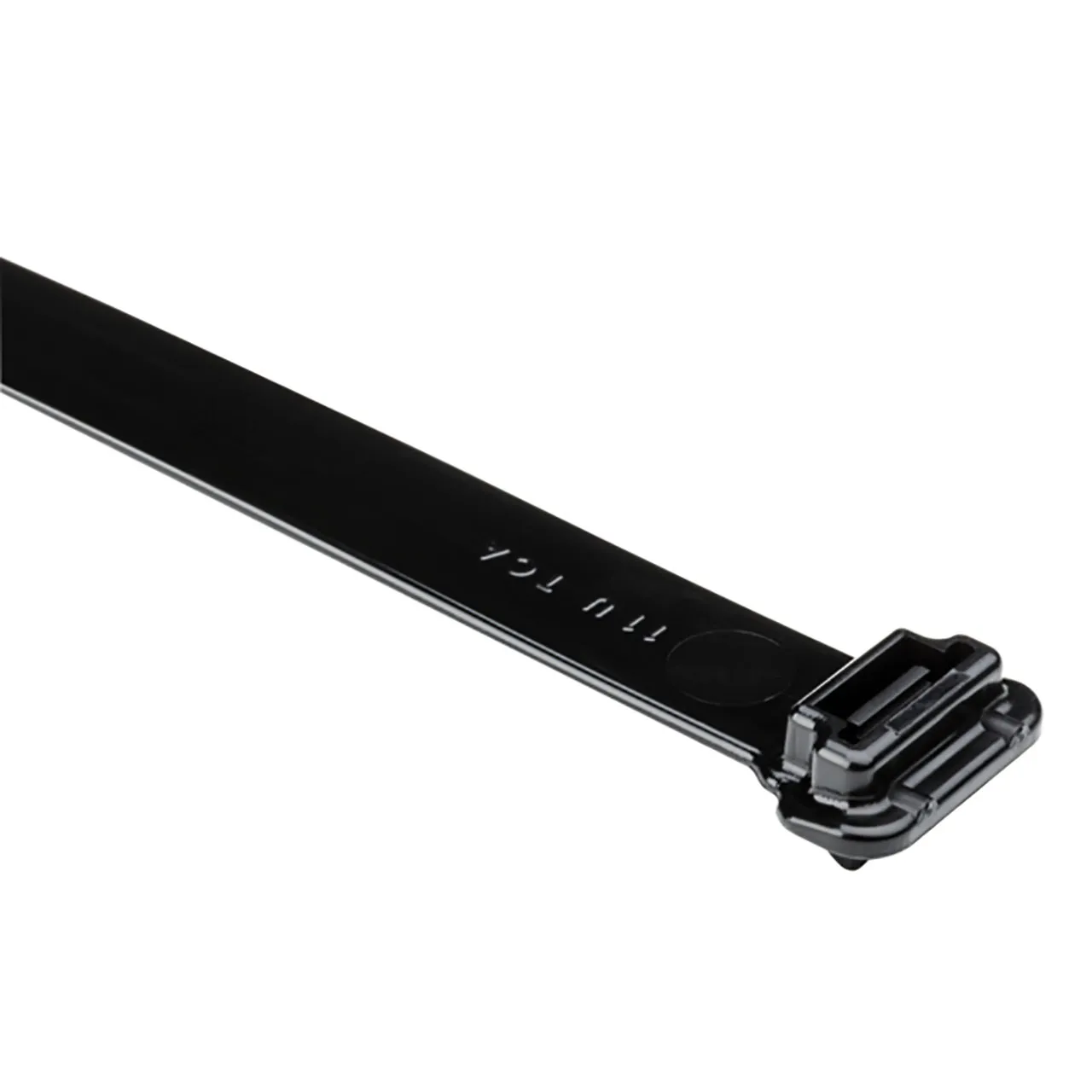

Wide Strap Cable Tie, 9.1"L, 0.375 - 2.25" Bundle Dia, 120lb Tens Stngth, PA66HIRHSUV, Black, 300 per Package

Features

• Wide strap is designed to minimize pinching of soft hoses and convoluted tubing. Low-profile head with clamping rails provide compact bundling with a full circumferential compression around bundles. Wider and thinner strap design increases flexibility, provides low insertion and minimizes pinching of bundles. Bent tail allows for quick insertion into head or mounts.
• Product Type: Wide Strap Cable Ties

Technical Specifications

• Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
• Operating Temperature: -40°F to +221°F (-40°C to +105°C)
• Color: Black (BK)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Bundle Diameter Max. (Imperial): 2.25"
• Bundle Diameter Max. (Metric): 57.1 mm
• Bundle Diameter Min. (Imperial): 0.37"
• Bundle Diameter Min. (Metric): 9.5 mm
• Cable Tie Closure: plastic pawl
• Cable Tie Head Height (metric): 5.6 mm
• Cable Tie Head Length (Imperial): 0.393"
• Cable Tie Head Length (Metric): 10.2 mm
• Cable Tie Head Width (Imperial): 0.78"
• Cable Tie Head Width (Metric): 19.8 mm
• Focused Markets and Industries: Wind Energy Sector; Rail Transportation Sector; Automotive Industry; Electronics Industry; Defense Industry
• Length L (Imperial): 9.1"
• Length L (Metric): 230.0 mm
• Recommended Application Tool: 110-80003
• Releasable Closure: No
• Tensile Strength Min. (Imperial): 120 lbs
• Tensile Strength Min. (kgf): 54.56 kgf
• Tensile Strength Min. (Metric): 535 N
• Thickness T (Imperial): 0.055"
• Thickness T (Metric): 1.4 mm
• Toothing (Serration): Inside Serrated
• Variant: Inside Serrated
• Weight (Lbs) per 1 Content Unit without Packaging: 0.009590108397
• Width W (Imperial): 0.5"
• Width W (Metric): 12.7 mm
• CE Certified: No
• CSA Certified: No
• Flammability: UL 94 HB
• Halogen Free: Yes
• Hazardous Goods: No
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): Yes
• UPC: 089306268383

Overview

The Heavy Duty Wide-Strap Cable Tie was designed to minimize the pinching of soft bundles and the potential of lateral movement along the bundle. The low-profile head and underside clamping rails increase the grip around the bundle and provide a better fit than traditional cable ties. These are used primarily in the trucking and heavy equipment industries, but can be used in a wide variety of applications where strength is needed.
