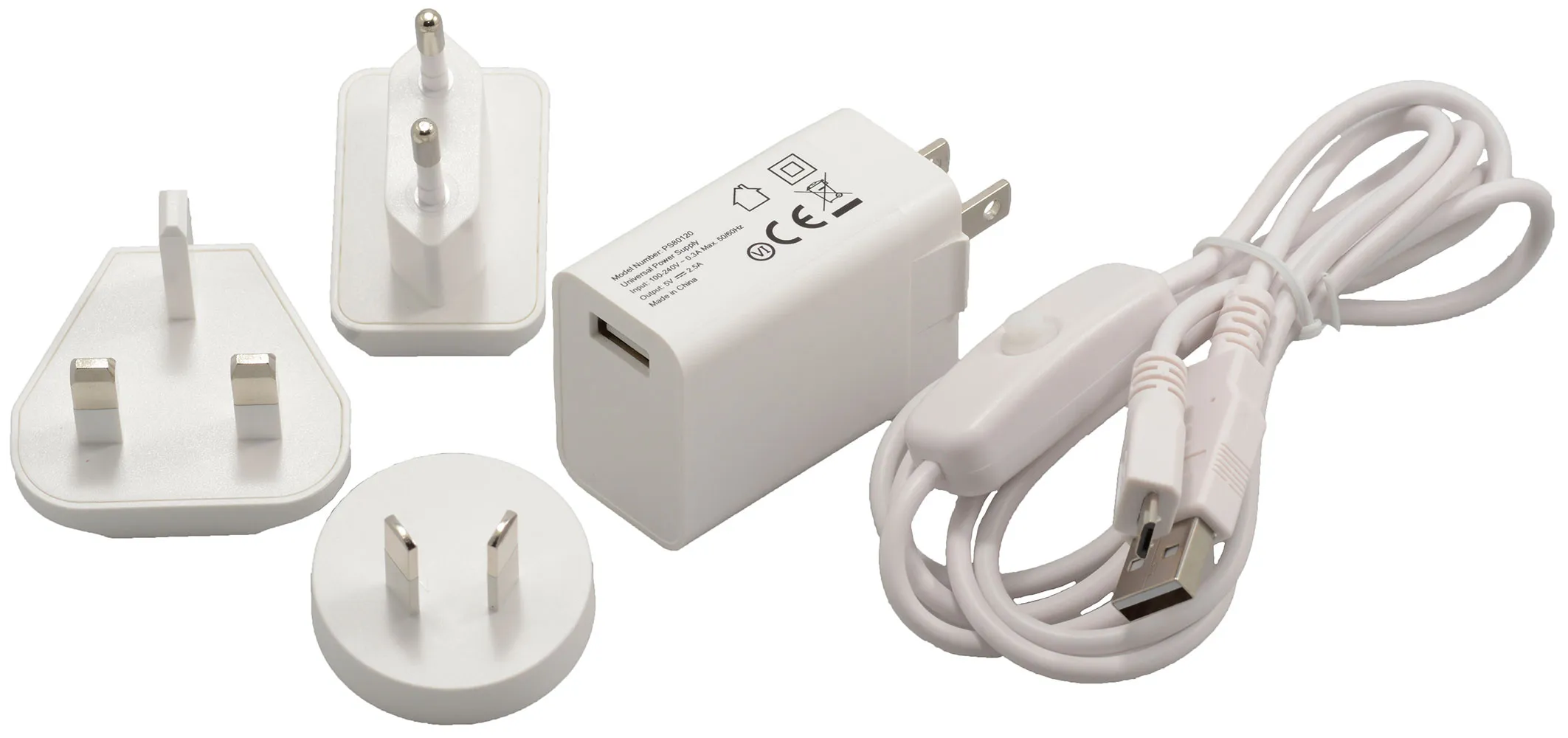

USB Wall Adapter with Interchangeable AC Clips and microUSB Cable White

This is a RS Pro 100-240VAC 50/60Hz to 5VDC 2.5A AC-DC World Travel Power Supply with output via USB port. It comes as with a USB-A to Micro-B Cable with inline pushbutton switch and interchangeable AC clips for USA, EU, UK, and AUS/NZ. It is the original micro-USB power supply for Raspberry Pi 3 Model B. This universal power supply is not only compatible with the Raspberry Pi 3, but it can also charge numerous mobile devices.

Specifications

  • Input plug adapters United States, Europe, United Kingdom and Australia / New Zealand
  • USB micro-B cable contains an inline pushbutton switch for easy ON-OFF control
  • Input voltage range 100-240 VAC
  • Input frequency range 50/60 Hz
  • Nominal input current 0.3 A max.
  • Output voltage range 5V
  • Maximum output current 2.5 A
  • Minimum output current 0 A
  • USB A (F) output connection type
  • Total output regulation ± 5% V
  • Line regulation ± 3%
  • Ripple and noise <250 mVp-p
  • Efficiency 80.22%
  • Surge protection 10 VDC max.
  • Operating temperature 0 to 40°C
  • Storage temperature -20 to +70°C
  • Operating humidity 35% to 85%
  • Storage humidity 5% to 95%
  • High voltage 3000 VAC, 5 mA, 3 s
  • Leakage current 0.25 mA max.
  • Mean time between failures 50,000 hours
  • Size in mm max. 39 (L) x 26.7 (W) x 53.9 (H)

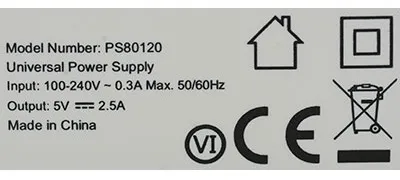

Power Supply Spec Label

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:ReliaPro

Compliance

Agency Approvals:CE

Dimensions & Appearance

Style:Wall Mount
Depth:1.05 in.
Color:White
Length:1.54 in.
Height:2.12 in.

Operating conditions

Minimum Operating Temperature:0°C
Maximum Operating Temperature:40°C

Packaging

Packaging:Carton

Input

Input Connector:NEMA 1-15P, CEE 7/16 Euro, AS/NZS 4417 AUS, BS 1363 UK
Input Frequency:50 Hz to 60 Hz
Maximum Input Current:0.3 A
Input Voltage:100 VAC to 240 VAC

Output

Number of Outputs:1
Output Cord Length:N/A
Output Connector Diameters:USB Type A
Output Voltage:5 VDC
Output Connector Type:USB Type-A Port
Output Current:2.50 A

Features

AC Power Cord:AC Plugs Included (4)
Minimum Isolation Voltage:3000V
Polarity:N/A
Product Note:Level VI
Efficiency:80%
Power Rating:12.5 W
,
