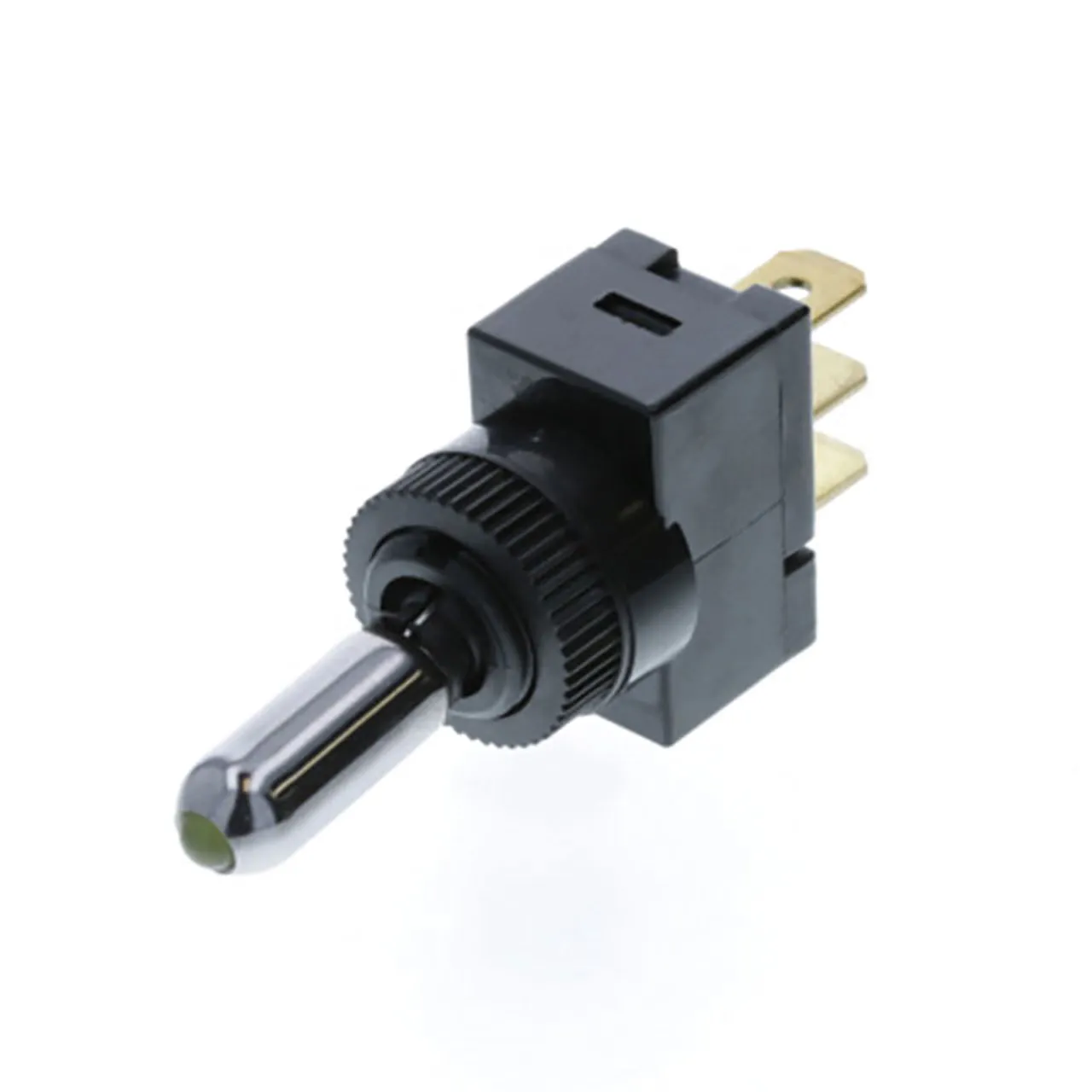

Wedge Toggle - 3P SPST OFF-ON Round Chrome Lever with Amber LED Tip

Features

  • Series: TE3
  • Mounting Type: Panel Mount
  • Circuit: SPST
  • Switch Function: On-Off
  • Current Rating (Amps): 20A (DC)
  • Voltage Rating - DC: 12 V
  • Actuator Type: Standard Round
  • Actuator Length: 19.30 mm
  • Illumination: Illuminated
  • Illumination Type, Color: LED, Amber
  • Illumination Voltage (Nominal): 12 VDC
  • Termination Style: Quick Connect - 0.250" (6.3mm)
  • Panel Cutout Dimensions: Circular - 12.20mm Dia
  • Bushing Thread: M12 x 1
  • Operating Temperature: -25°C to 85°C
  • Product Type: Toggle Switch
  • Harmonized Code: 8536.50.4000
  • ECCN: EAR99
  • 360 Animation Download (.zip)

Overview

Wedge Toggle - 3P SPST OFF-ON, Amber LED.

Dimensions & Appearance

Body Orientation:Straight
Mounting Style:Panel Mount, Rear
Mounting Hole:Circular - 12.20mm Dia
Body Color:Black

Features

Bushing Type:Threaded
Number of Positions:2
Pins:3
Minimum Insulation Resistance:100 MOhm
Maximum Contact Resistance:50 mOhm
Illumination Type:LED, Amber
Termination Style:Quick Connect - 0.250" (6.3mm)
Dielectric Strength:1500VAC
Switch Function:ON-OFF
Color - Actuator/Cap:Chrome, Amber Tip
Voltage Rating:12 VDC
Thread Size:M12 x 1
Contact Form:SPST
Actuator Length:19.30 mm
Actuator Type:Round, Lit Tip
Contact Rating:20A @ 12VDC
Current Rating:20A (DC)
,
