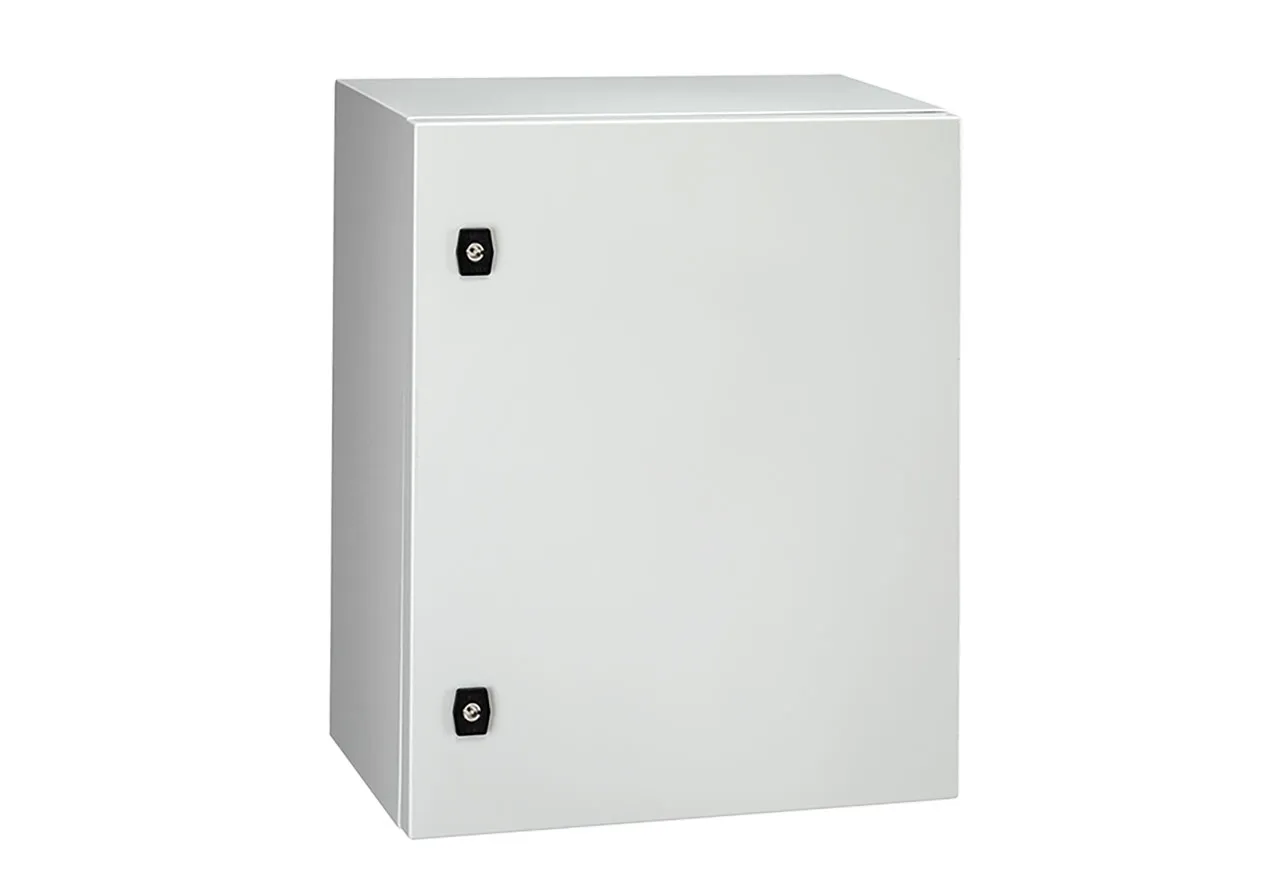

Wall-Mount Steel Enclosure Single Door 800x1000x300mm WHD IK10 IP66 3 Locks

Features

  • Material: Cold-rolled steel plate
  • Thickness: 1.2 mm (min.)
  • RAL7035 outdoor powder coating
  • IP66 protection with polyurethane foam sealing strip gasket
  • IK10 impact rating
  • Door open angle: 110°
  • Grooved case edges prevent water and dust from entering the interior of the case
  • Wall-mounting holes: Pre-drilled installation holes are available on the back of the case
  • The bottom sealing plate is equipped with seal rings to ensure IP protection
  • Customized hole machining services are available

Overview

Wall-Mount Steel Enclosure Single Door 800x1000x300mm WHD IK10 IP66 3 Locks

Product Identification

Additional Feature:3 Locks
Product Type:Electrical Enclosure
Manufacturer Series:ST

Compliance

Compliance:Compliance Docs
Agency Approvals: TUV, CE

Dimensions & Appearance

Color:Gray
Height:11.81 in., 300 mm
Width:39.37 in., 1000 mm
Length:31.50 in., 800 mm

Features

IP Rating: IK10, IP66
Material:Steel
,
