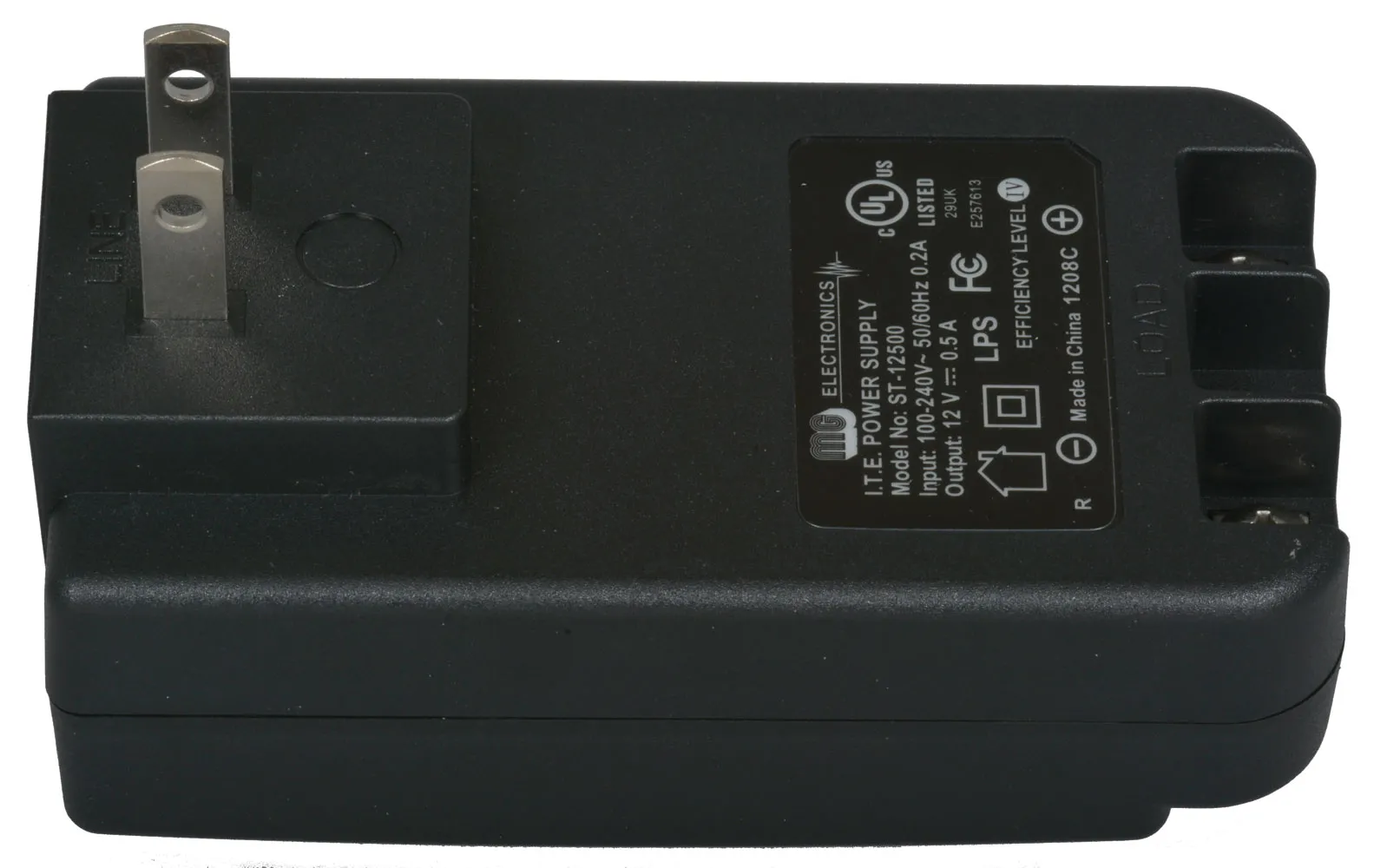

Switching Power Adapter 12 VDC 500 mA with Screw Terminals and LED
Designed for 12VDC operation in CCTV and alarm applications, this UL and CSA listed AC to DC switching power supply features screw terminal connections, precision power regulation, LED supervision, and short circuit/over voltage protectionFeatures
- Input: 100V-240V 50~60Hz
- Output: Regulated 12VDC; 500mA
- Two Screw Terminal Outputs
- Short Circuit Protection, Over Voltage Protection
- FCC Approved
- Ultra Lightweight
- Dimensions: 2.0 in. x 3.75 in. x 1.50 in.
Product Identification
Product Type:Auto Switching SMPS
Manufacturer Series:ReliaPro
Compliance
Agency Approvals: CEC, CUL, FCC, UL
Dimensions & Appearance
Color:Black
Style:Wall Mount
Depth:1.62 in.
Height:2.16 in.
Length:4.31 in.
Operating conditions
Minimum Operating Temperature:0°C
Maximum Operating Temperature:45°C
Packaging
Packaging:Carton
Input
Input Connector:NEMA 1-15P
Input Frequency:50 Hz to 60 Hz
Input Voltage:100 VAC to 240 VAC
Output
Number of Outputs:1
Output Connector Diameters:Screw Terminals
Output Voltage:12 VDC
Output Connector Type:Screw Terminals
Output Current:0.50 A
Features
Minimum Isolation Voltage:3000VAC
Polarity:N/A
Product Note:Level VI
AC Power Cord:N/A
Efficiency:66.1%
Power Rating:6 W
