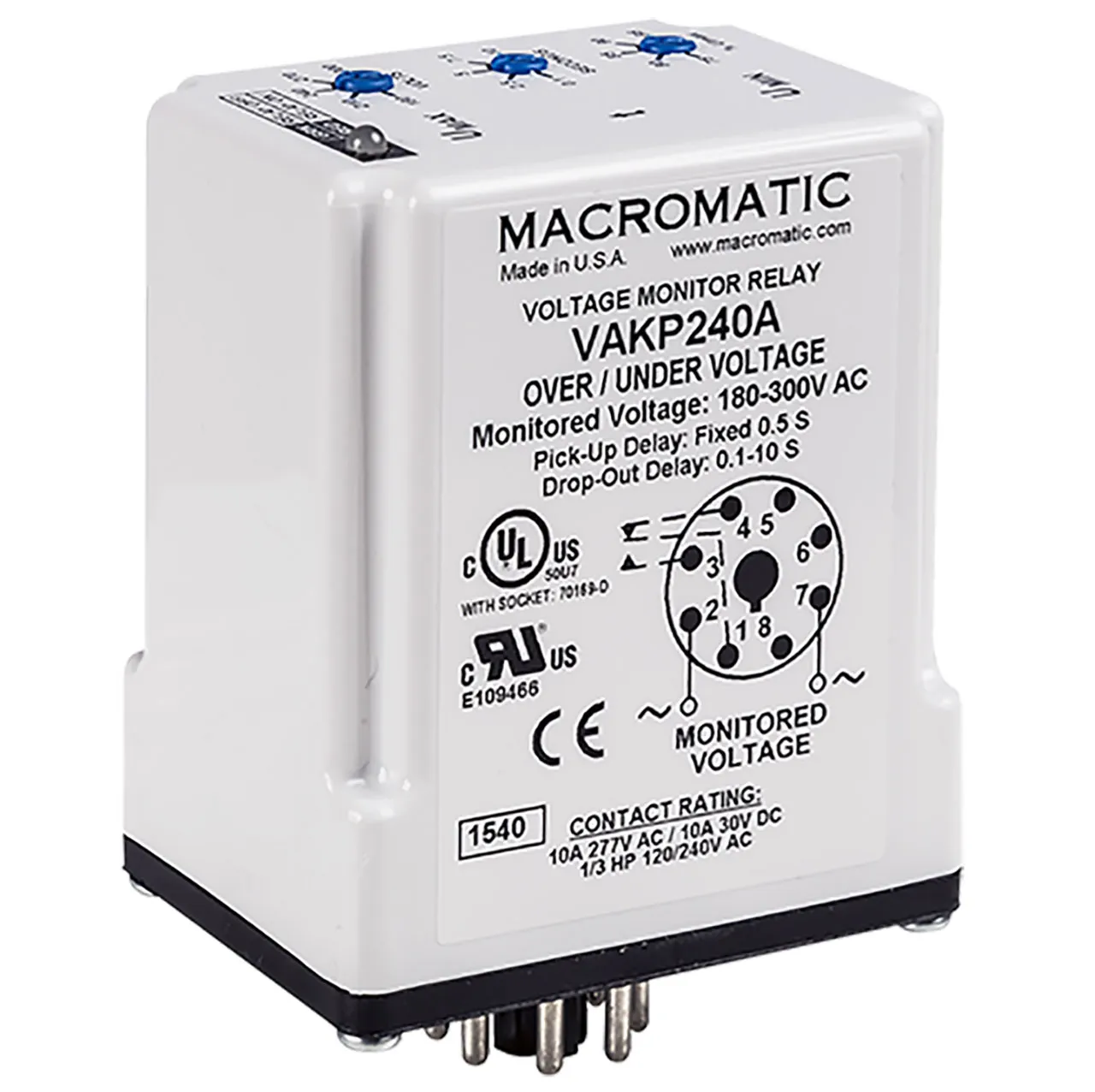

Voltage Monitor Over/Under Voltage Adjustable Time Delay of 0.1-10sec on Drop Out 180-300VAC Monitored 10A SPDT

Macromatic

Jameco Part #:

Manufacturer #:

Non Cancelable

Non Returnable

Product Price:

$109.950

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$109.950	-	-
5+	$99.950	10.00	9.1%
25+	$89.950	20.00	18.19%

Features

Family: VM
Function: OVER/UNDER VOLTAGE
Function Name: VMP
Timing Range: Adjustable Time Delay of 0.1-10 Seconds on Drop-out
Input: 180-300V AC
Output: 10A SPDT
Voltage Tolerance: +50%/-50% of nominal AC voltage (50-60Hz, +5%) or DC voltage; No separate input voltage is required since unit is powered by monitored voltage.
Insulation Voltage: 2,000 volts
Voltage Settings: Pick-up (Umax): Adjustable across full range as shown on the product nameplateDrop-out (Umin): Adjustable from 75-95% of the Pick-up setting
Load Burden: Less than 2 VA (12-120V); 30VA (240V & 480V)
Output Contacts: 10A @ 240V AC, 7A @ 30V DC, 1/4HP @ 120/240V AC, C300
Life: Mechanical: 10000000 operations; Full Load: 100000 operations
Temperature: -28° to 65°C (-18° to 149°F)
Indicator LEDs: Red when Relay is energized; Green when Relay is Off

Overview

The relay energizes (and the LED is Red) when the monitored voltage is above the pick-up setting for a period longer than the fixed pick-up time delay of 0.5 seconds. The relay de-energizes (and the LED is Green) when the monitored voltage is below the drop-out setting for a period longer than the fixed drop-out time delay (t) of 0.5 seconds.
