VmodMIB: VHDC Module Interface Board

The VmodMIB is no longer in production. Once the current stock is depleted, it will be discontinued.

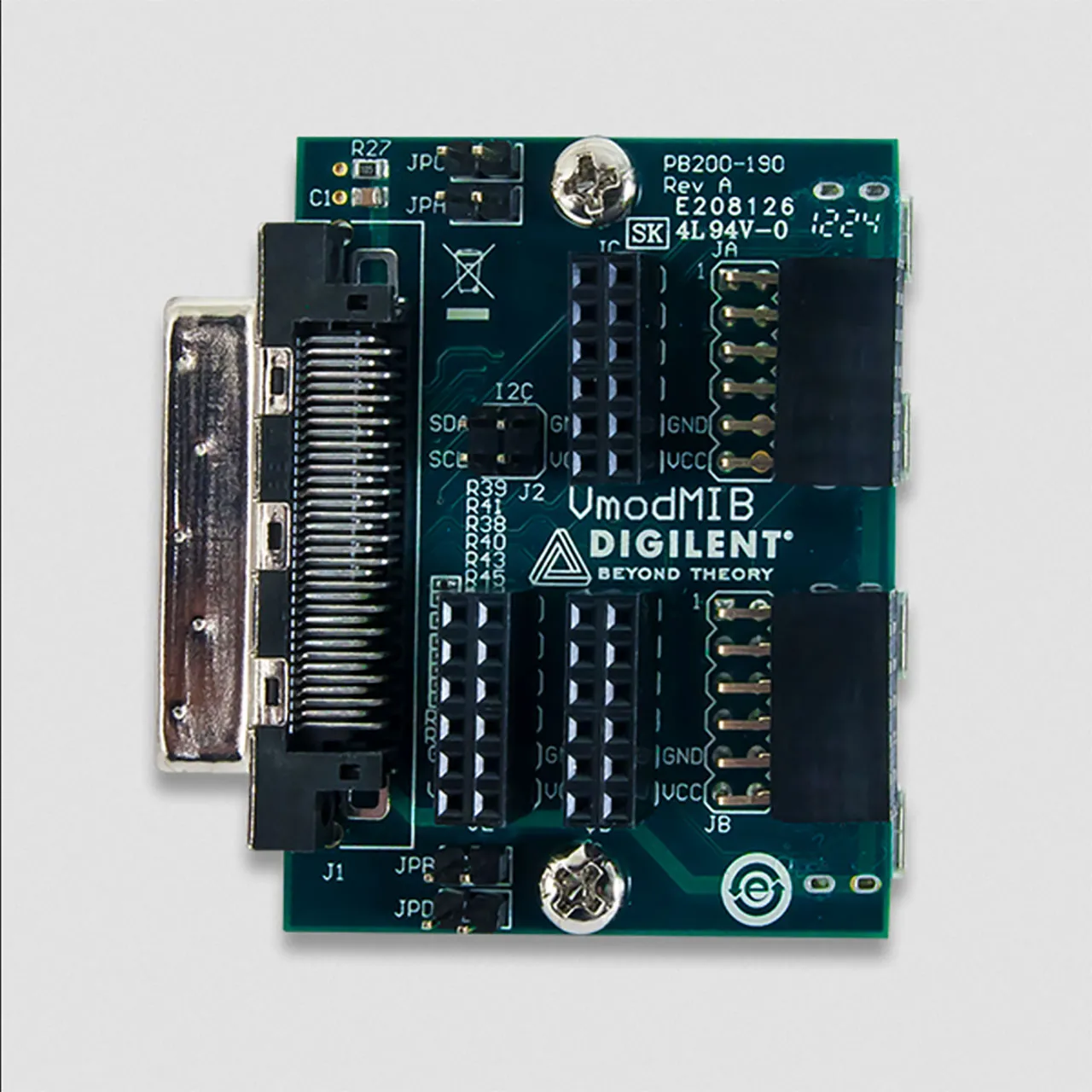

The Digilent Vmod Module Interface Board (VmodMIB) is a simple solution for interfacing additional peripheral modules and HDMI devices to VHDCI-equipped Digilent system boards. It connects to the VHDCI connector on Digilent system boards and provides four additional Pmod and four additional HDMI connections.

Features

• Connects to system boards with a VHDCI connector (Genesys, Atlys)
• Adds four 12-pin Pmod connectors and four HDMI-D connectors
• Provides two power busses and a ground bus

What's Included

• One VmodMIB

Resources & Downloads

All product support including documentation, projects, and the Digilent Forum can be accessed through the product resource center.

• Reference Manual (.pdf)
• Schematic (.pdf)
