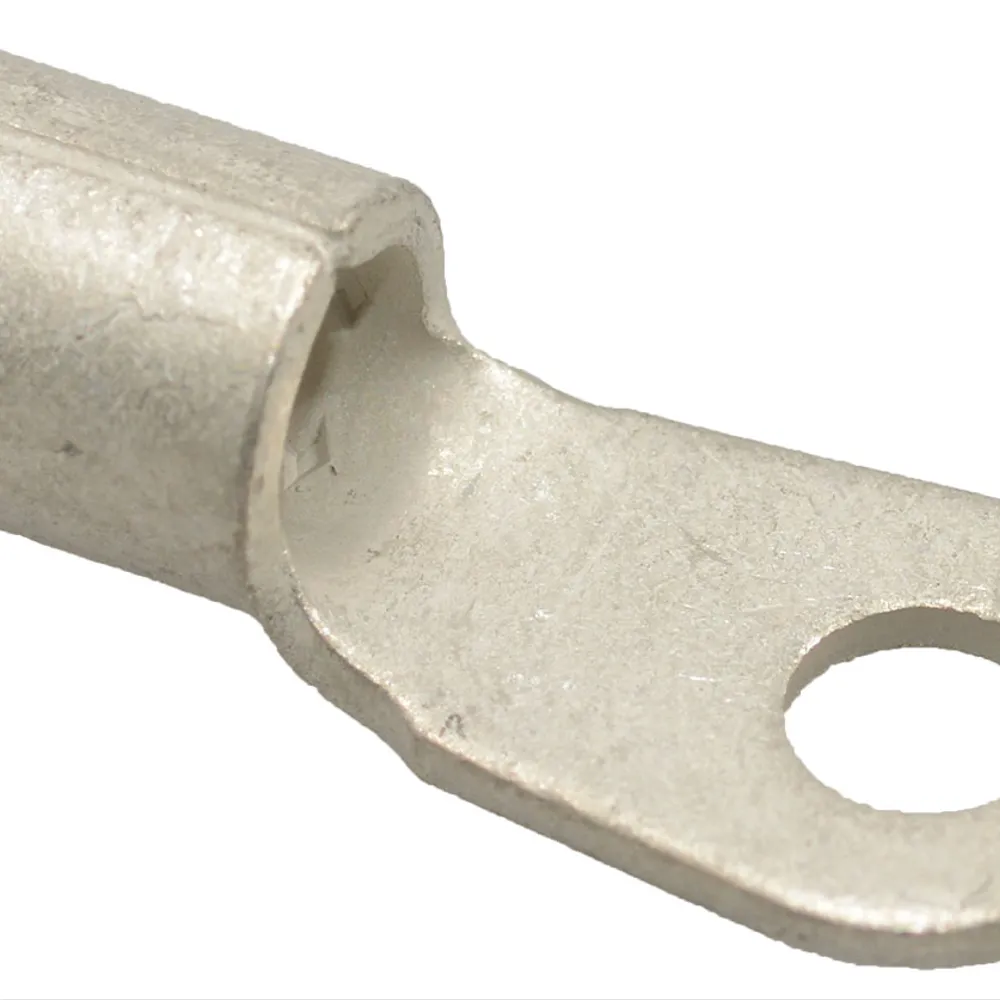

VersaKrimp Ring Terminal 8 Stud Circular 8 AWG Crimp Non-Insulated
Specifications
- Series: VersaKrimp
- Terminal Type: Circular
- Stud/Tab Size: 8 Stud
- Thickness: 0.05" (1.27 mm)
- Width - Outer Edges: 0.379" (9.63 mm)
- Length - Overall: 0.93" (23.62 mm)
- Mounting Type: Free Hanging (In-Line)
- Termination: Crimp
- Wire Gauge: 8 AWG
- Insulation: Non-Insulated
- Features: Brazed Seam
- Contact Material: Copper
- Contact Finish: Electro-Tin
- Base Number: 019193
Product Identification
Product Type:Ring Tongue
Dimensions & Appearance
Width:0.379 in.
Color:Tin
Length:0.930 in.
Body Material:Copper
Features
Insulation:Non-Insulated
Wire Gauge (AWG):8
Stud Size:8
Gender:N/A
Plating:Electro-Tin
